12. Card Cage
11

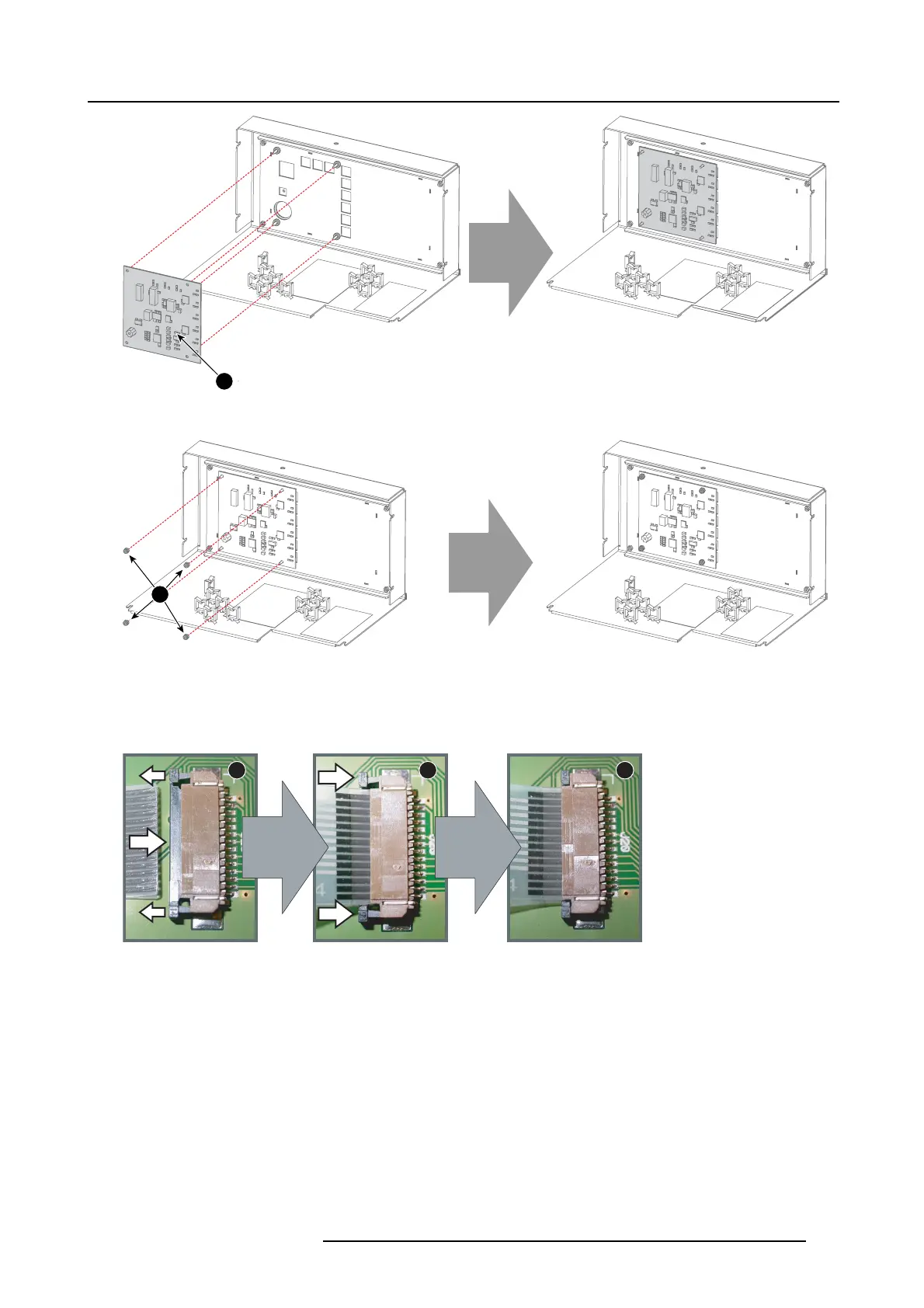

Image 12-32
9. Tighten the 4 lock nuts (reference 12, image 12-33 ) on the Button modu le mounting bolts.
12
Image 12-33
10.C onnect the flat cable to the Button module by performing the following procedure:
a) Make sure the locks a t both sides of the socket are pulled out (step 1, im age 12-34).
b) Insert the fl at cable into the socket (step 2, im age 12-34).
c) Lock the flat cable by pus hing in the locks at bot
h sides of the socket (step 3, image 12-34).
1 2 3
Image 12-34
R5905043 DP2K-12C/11CX 19/02/2018 229
