12. Card Cage
J6
J5
J4
J3
MH2
J9J8
MH1
PTC28
PTC29
J7
J1
J2
PTC10
1 2 3
A
B

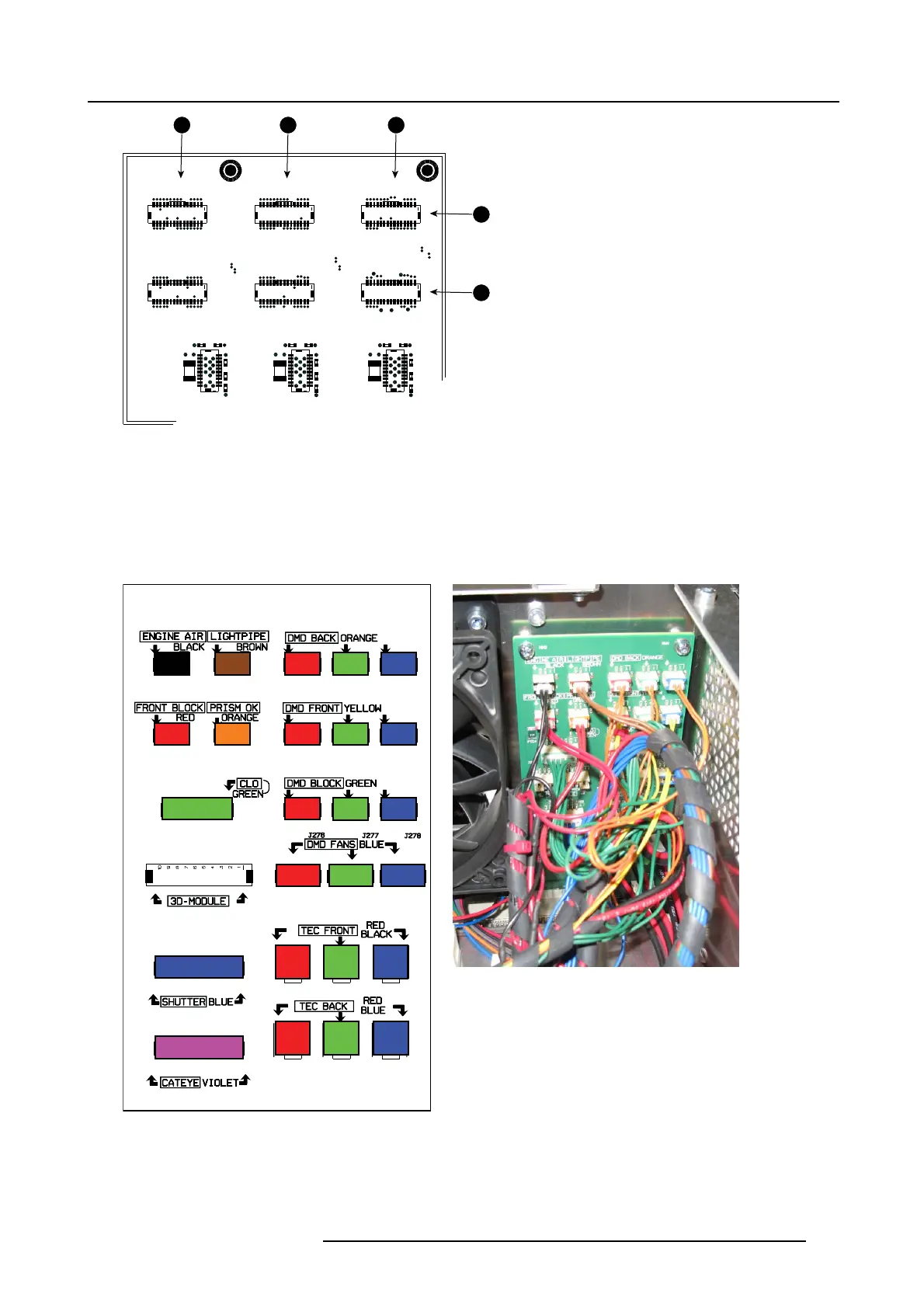

Image 12-54
Formatter connections
1 Red formatter connections
2 Green formatter connections
3 Blue formatter connections
A Cables with one cable tie
B Cables with two cable ties
Right side connections
Color conv ention for the connections.
J278
J272
J271
J274 J275
J282
J279
J291
J251
J254
J260
J250
J270
J273
J276
J253
J283
J14
J262
J255J252
J261
J277
J280
J281
Image 12-55
Color coding cabl
es
Image 12-56
Color coding cables, image
The color indication on the socket corresponds with the colored cable tie on the cable n ext to the connector.
The screened c olor indication just above the sock ets corresponds with the color of the wires in the cable tree.
Connections below light processor compartment f an
R5905043 DP2K-12C/11CX 19/02/2018
241
