Barco DP2K-6E - Removal of the; Removal of the Rear Cover

R5906790 /04 Athena138
16.1 Removal of the front cover
Required tools
7 mm flat screwdriver
How to remove the front cover?
1. Unscrew the six captive screws (reference 1, Image 16-1) from the front cover. Use a 7 mm flat screwdriver.
1

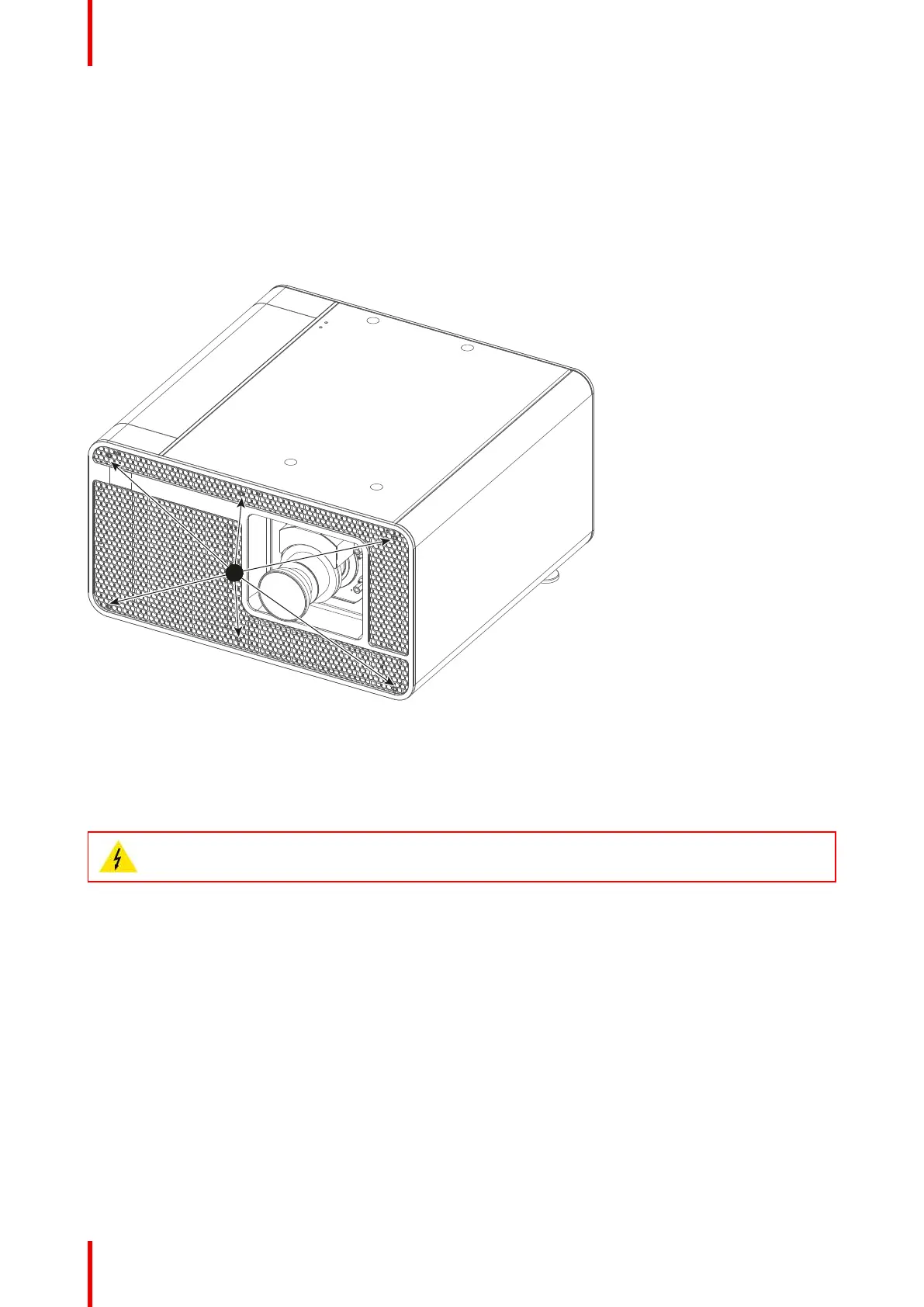

Image 16-1
2. Remove the front cover.
16.2 Removal of the rear cover
WARNING: Switch off the projector prior to start with this procedure, unless otherwise specified in
the procedure.
Required tools
7 mm flat screwdriver.
How to remove the rear cover?
1. Loosen the five captive screws (reference 1Image 16-2 ) of the rear cover using a 7 mm flat screwdriver.
Removal and installation of the projector covers
