R5906790 /04 Athena 75
DualStack3D_Right
Focus
FocusGreen
FocusWhite
Framing_uncorrected
RGB-12bit-Color Bars
RGB-12bit-Convergence Pattern
RGB-12bit-Log Step Blue
RGB-12bit-Log Step Cyan
RGB-12bit-Log Step Green
RGB-12bit-Log Step Magenta
RGB-12bit-Log Step Red
RGB-12bit-Log Step White
RGB-12bit-Log Step Yellow
RGB-12bit-MacBeth ColorChecker
RGB-12bit-Shallow Horizontal Ramp
RGB-12bit-Split Ramp
RGB-12bit-Vertical Bars Plus Crosshairs
SCC_13PNTS
SCC_27PNTS
8.11 ICMP(-X) communication ports
Location of the communication ports
1 2 3 4 5 6 7

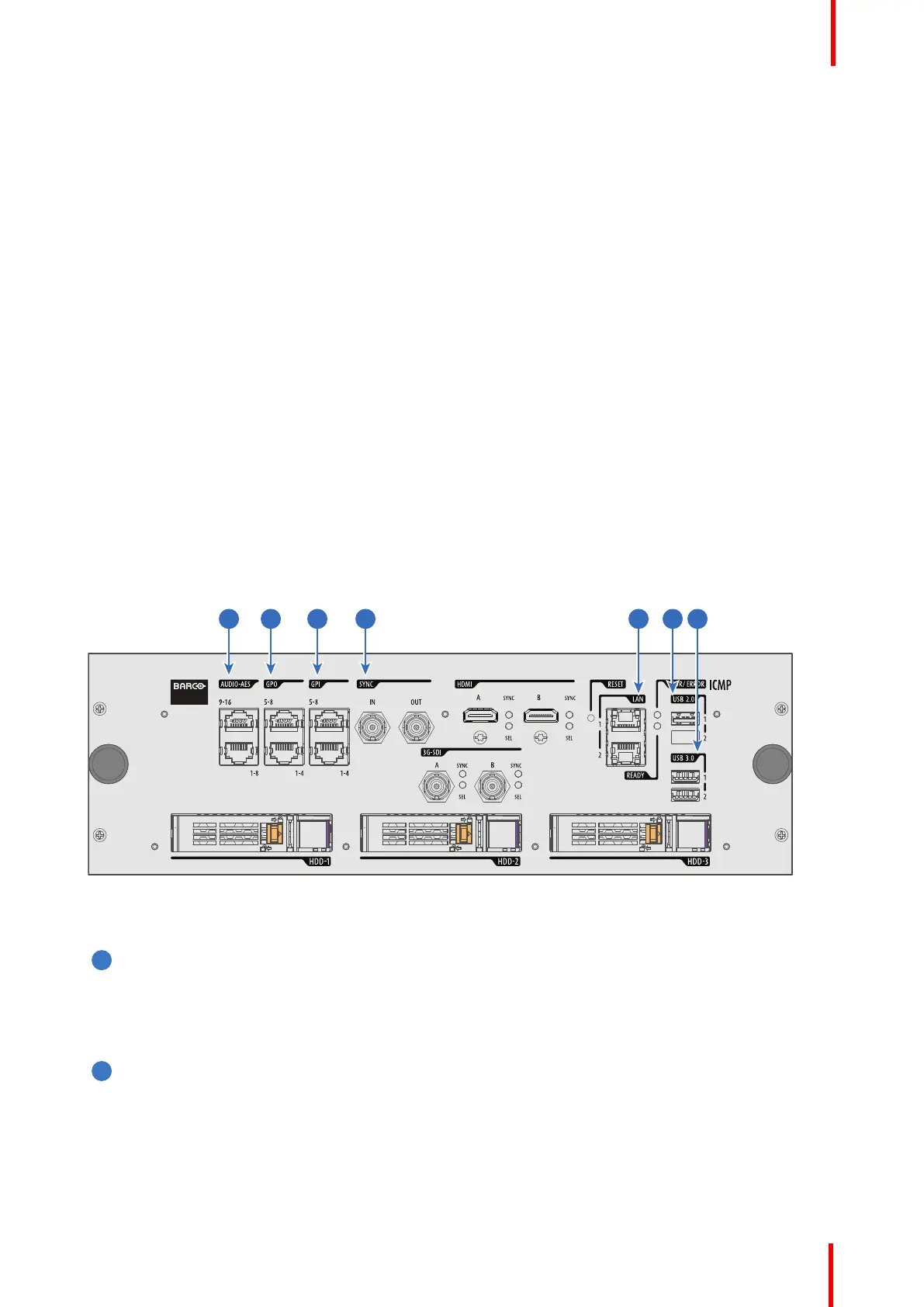

Image 8-19: ICMP(-X) (with HDMI 2.0).
Functionality
1
AUDIO-AES 1-8 (9-16)
ICMP(-X) outputs sixteen audio signals equitably distributed over these two RJ45 connectors, which can
be configured independently. The mapping of audio channels (content) on each audio output (AES
outputs of the ICMP(-X)) is performed by configuring the ICMP(-X) via the Communicator software.
Please refer to the Communicator user guide for further information.
2
GPO 1-4 (5-8)
These RJ45 connectors can be used to send trigger signals to other devices. The mapping of user Cues
(output Cues) on each General Purpose Output (GPO) is configured via the Communicator software.
Please refer to the Communicator user guide for further information.
ICMP(-X)
