3.1 Installation requirements
Environment conditions
Table below summarizes the physical environment in which the Athena may be safely operated or stored.
Environment
Operating Non-Operating
Ambient Temperature 10°C (50°F) to 35°C (95°F) -20°C (-4°F) to 60°C (140°F)
Air cleanliness Clean office environment (equivalent with
cleanroom standard ISO 14644-1 ISO Class
9)
n.a.
Humidity 0% to 85% RH Non-condensed 0% to 93% RH Non-Condensed
Altitude -60 (-197Ft) to 3000m (9843Ft)
1
-60 (-197Ft) to 10000m (32810Ft)
Let the projector acclimatize after unpacking. Neglecting this may result in a startup failure of the
Light Processor Unit.
Measures to resolve radio interference
Operation of this equipment in a residential area may cause radio interference. Possible interference shall be
solved by one of the following non limitative product installation measures:
• Create more separation distance between projector and interfered device.
• Change direction of the interfered device.
• Electromagnetic shielding of the projection booth.
No interference to radio communication in neighbor buildings possible if a separation distance of 30
m (32.8 yards) is provided.
Cooling requirements
The projector is fan cooled and must be installed with sufficient space around the projector head, minimum 20
cm (8 inch) to ensure sufficient air flow. It should be used in an area where the ambient temperature, as
measured at the projector air inlet, does not exceed 35°C (95°F).

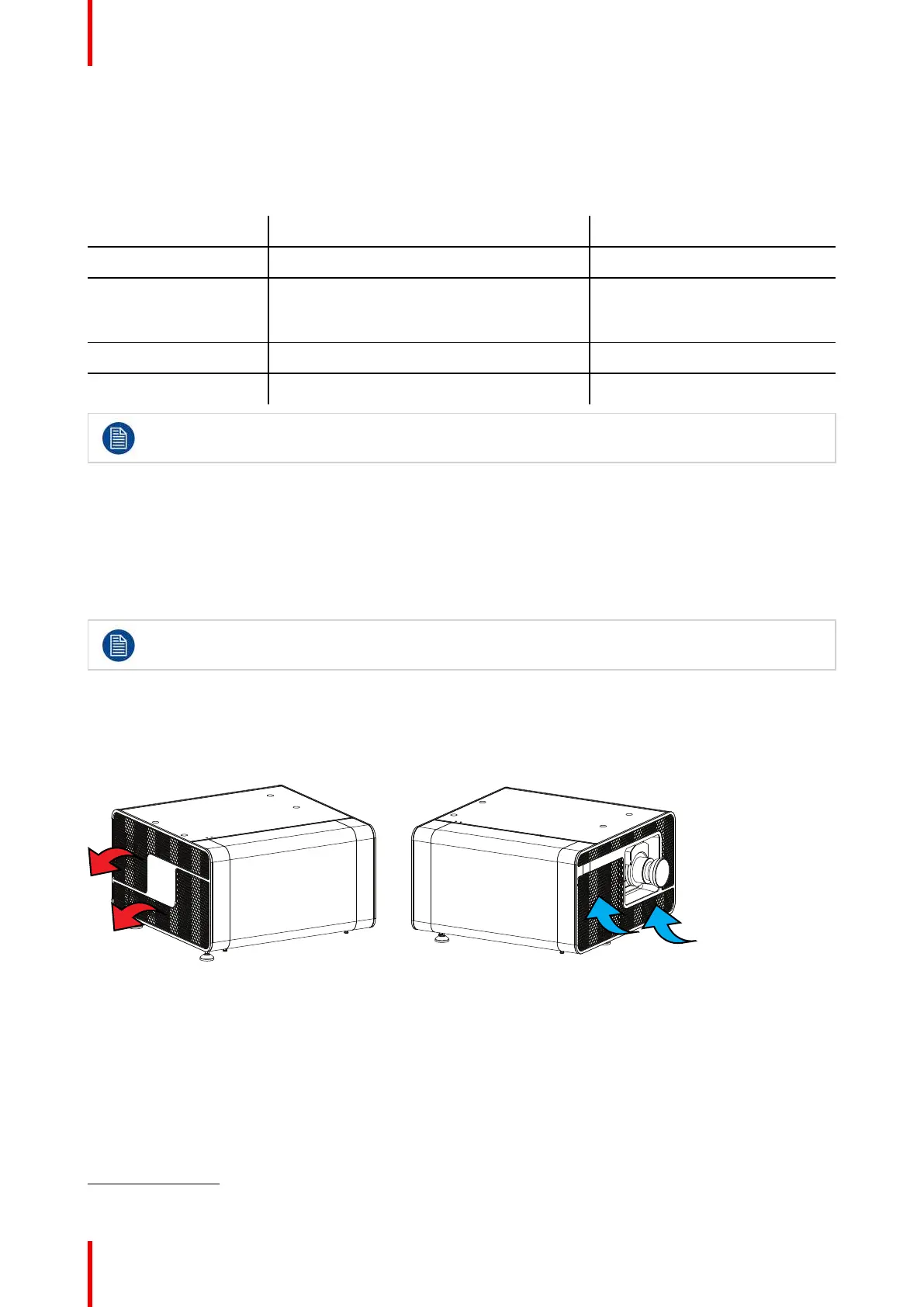

Image 3-1
Main Power requirements
The Athena operates from a nominal mono phase power net with a separate earth ground PE.
Projector Power requirements
DP2K-E 200-240 VAC, 50-60Hz, 6,25A at 200 VAC
Getting started
1: For PRC (People's Republic of China) the certified altitude is specified on the product label.
