5.1 Positioning the Athena at port window
WARNING: The installation of the Athena requires at least 4 adult persons persons.
General guidelines
• Use a solid pedestal to mount the Athena on to. Ensure that the pedestal can support the weight of the
projector and that all feet of the projector are captured.
• The pedestal should be placed in front of the port window wall in a manner such that the projector lens is at
a minimum distance of 20 centimeters from the port window.

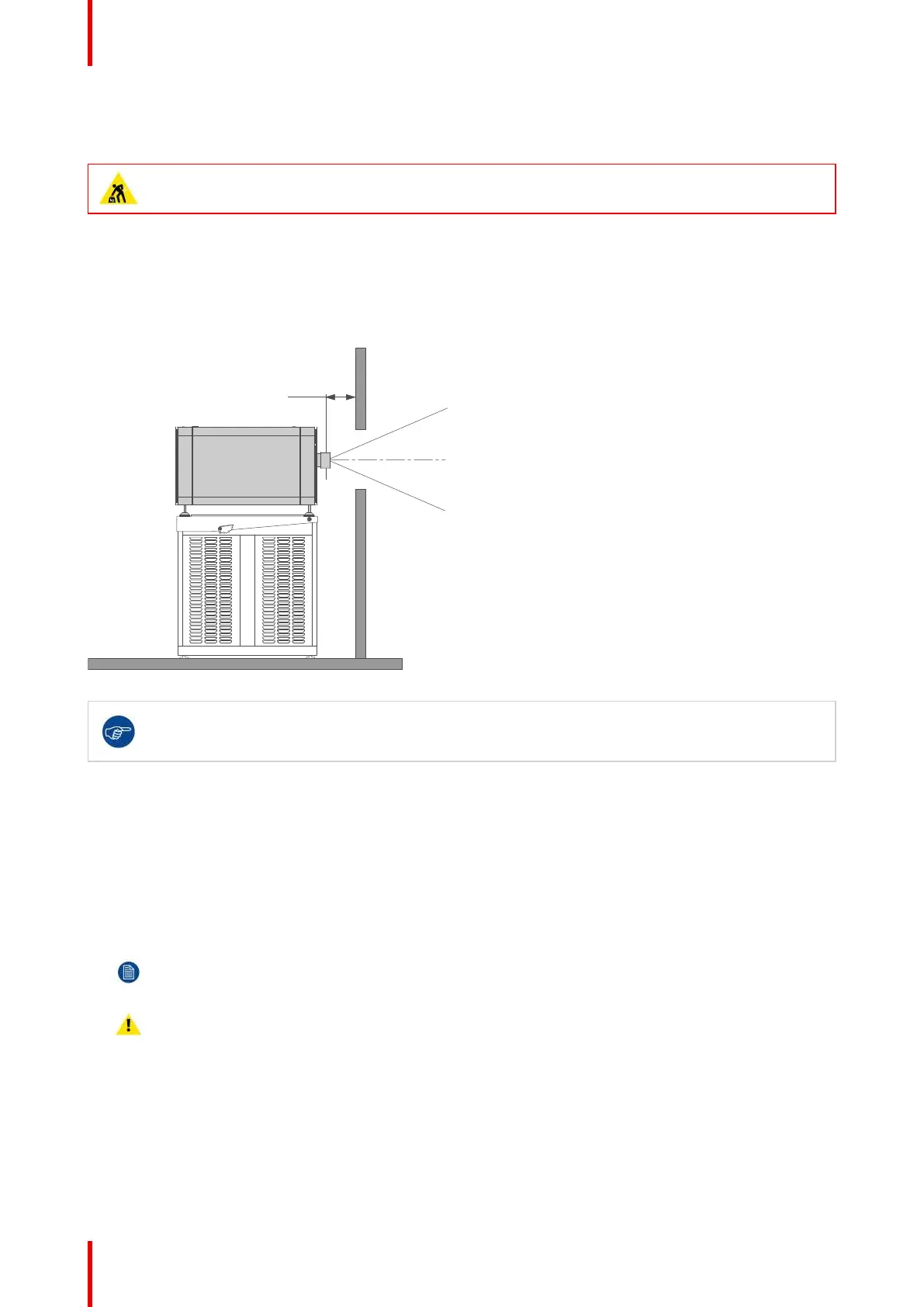

Image 5-1
Barco offers a pedestal for the Athena projector. This universal pedestal allows for a solid and easy
setup of the projector. The universal pedestal support 19” rack systems. (projector peripherals such
as alternative content switchers, ShowVault, etc.)
Required tools
• 14mm open end wrench
• 17mm open end wrench
Projector centering
1. If the projector is standalone in front of the port window, center the projector with the theatre screen (A).
2. If an analog film projector is already present (projector will be off-center), try to optimize aim (B).
Note: Unlike analog film projectors, it is best to keep the projector lens surface as parallel as possible
to the screen, even if it is significantly above the screen center.
Caution: The front foot has an adjustment range of maximum 70mm. The back feet maximum 125mm.
The off-center position slightly increases side keystone, but will minimize horizontal lens offset required.
Physical installation
