R5906790 /04 Athena 61
8.1 ICMP(-X) introduction
About ICMP
The ICMP is a removable electronic assembly situated in the Card Cage of the projector. The ICMP stores,
decrypts and decodes DCI cinema content and delivers it to the projector in a usable format, all integrated into
a single assembly placed directly in the projector. ICMP is a fully integrated assembly so expected by the
operators to facilitate their daily business.
The standard Integrated Cinema Processor functionality from Texas InstrumentsĀ® is fully integrated into the
ICMP. So, the ICMP replaces the ICP board as well.
The ICMP(-X) is located in the Card Cage of the projector.
21

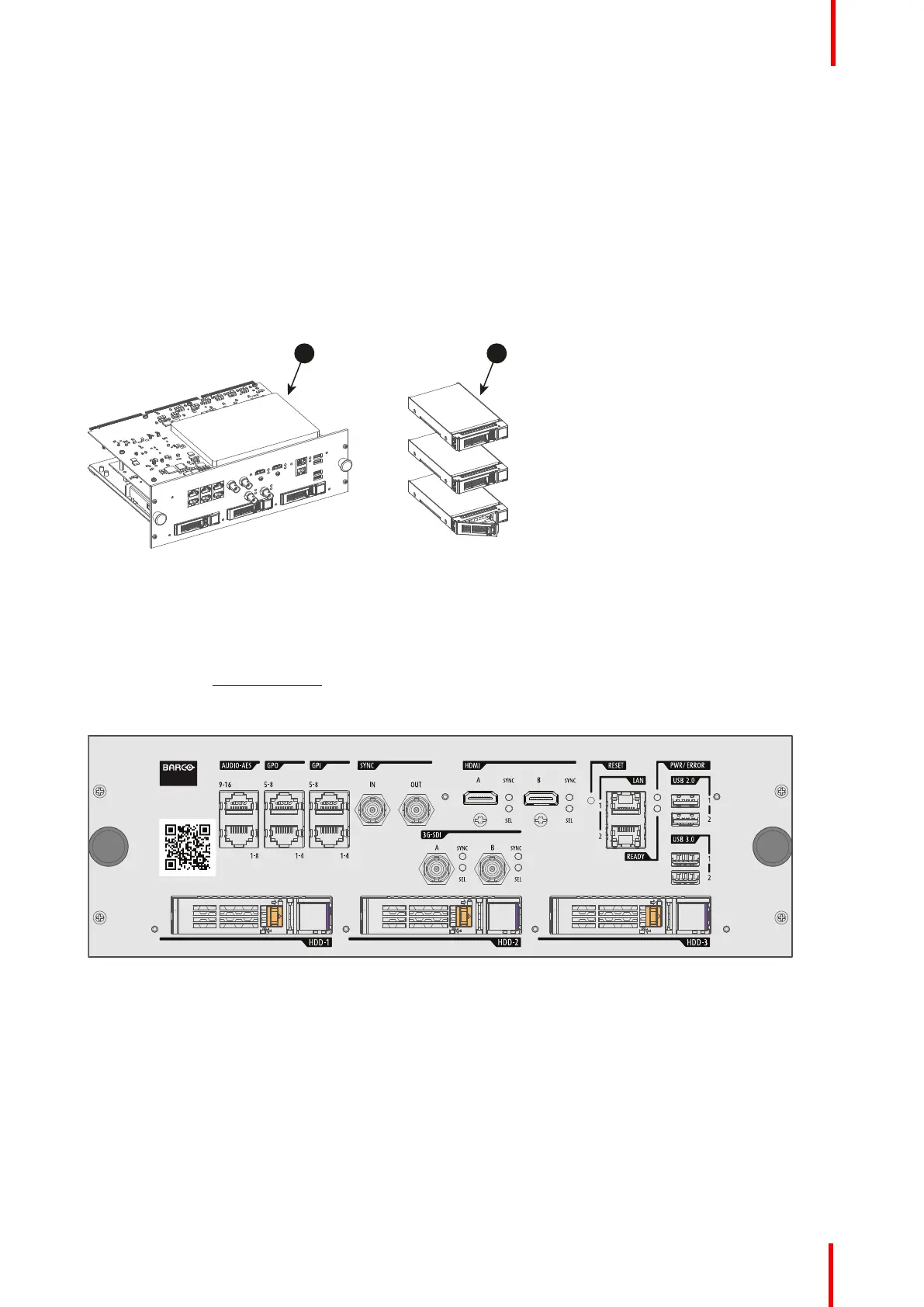

Image 8-2
1 ICMP(-X)
2 HDDs for ICMP(-X)
As an integrated component of the projector, installation and maintenance of the ICMP(-X) requires the same
skills and the same precautions as an intervention on the projector itself.
For order info see www.barco.com.
Front face of the ICMP-X
0123456789
ICMP-X
Image 8-3: Front face ICMP-X (standard with storage controller GEN 2)
ICMP(-X)
