R5906790 /04 Athena 149
To install the top cover, the front and back covers must be removed. This procedure assumes the
front and back covers are already removed.

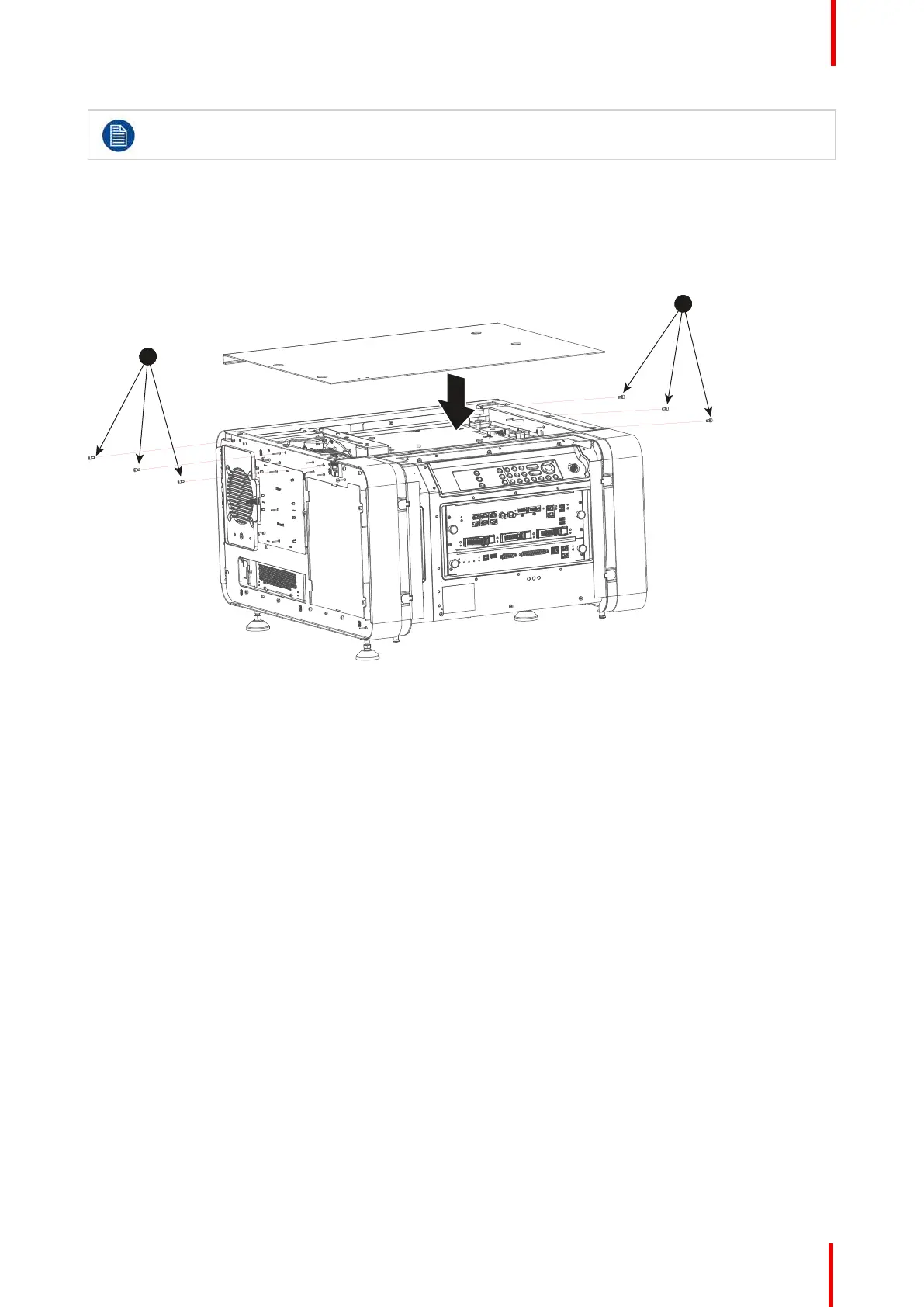

How to install the top cover?
1. Position the top cover on the projector.
2. Fasten the three screws at the front and the three screws at the back (reference 1, Image 16-16). Use a 3 mm
Allen key.
1
1
Image 16-16
16.13 Installation of the rear cover
Required tools
7 mm flat screwdriver.
How to install the rear cover?
1. Position the rear cover on the projector.
2. Fasten the five captive screws (reference 1, Image 16-17) of the rear cover using a 7 mm flat screwdriver.
Removal and installation of the projector covers
