R5906790 /04 Athena 93
Touch Panel power/data customized cable

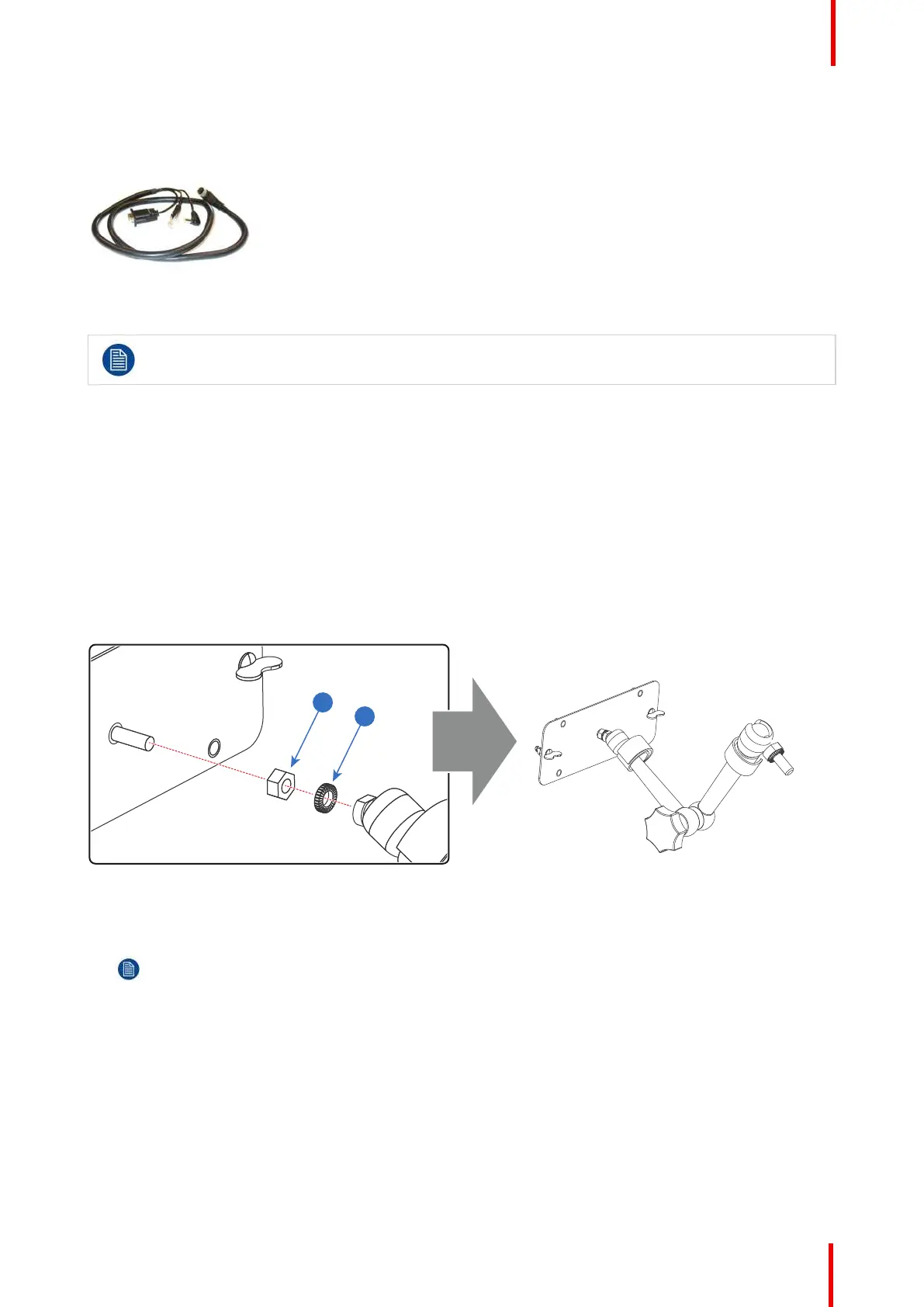

Image 9-3: Customized cable to connect Touch Panel interface with the Barco projector.
The Communicator Touch Panel has its own user guide which latest version is available on the
Barco website.
9.2 Installing the Touch Panel interface
Required tools
17mm open wrench.
10mm open wrench.
How to install the Touch Panel interface onto the top of the projector?
1. Assemble the mounting plate and the swivel arm together as illustrated. First place the nut (1) upon the rod of
the mounting plate, then add the lock washer (2), then fasten the mounting plate and the swivel arm together.
When the arm is mounted, turn the nut (1) against the arm to secure the position.
1
2
Image 9-4
2. Slide a washer (4) over the base of the swivel arm (3) and insert the base of the swivel arm into one of the four
possible mounting holes (A & B) at the top of the projector.
Note: Which mounting hole to use depends on the operator preferences. In the illustration below the
swivel arm is installed into the mounting hole nearest by the Local Keypad of the projector.
Communicator Touch Panel
