R5906790 /04 Athena52
Advantages of using RS232 serial communication:
easy adjustment of the projector via PC (or MAC).
wide range of control possibilities.
sending data to the projector (update).
copying data from the projector (backup).
RS232
An Electronic Industries Association (EIA) serial digital interface standard specifying the
characteristics of the communication path between two devices using either D-SUB 9 pins or D-
SUB 25 pins connectors. This standard is used for relatively short-range communications and does
not specify balanced control lines. RS-232 is a serial control standard with a set number of
conductors, data rate, word length and type of connector to be used. The standard specifies
component connection standards with regard to computer interface. It is also called RS-232-C,
which is the third version of the RS-232 standard, and is functionally identical to the CCITT V.24
standard. Logical '0' is > + 3V, Logical '1' is < - 3V. The range between -3V and +3V is the transition
zone.
7.5 Integrated Cinema Processor (ICP)
In case the projector is equipped with a Barco ICMP(-X) no ICP board is inserted. All ICP
functionality is integrated in the Barco ICMP(-X).

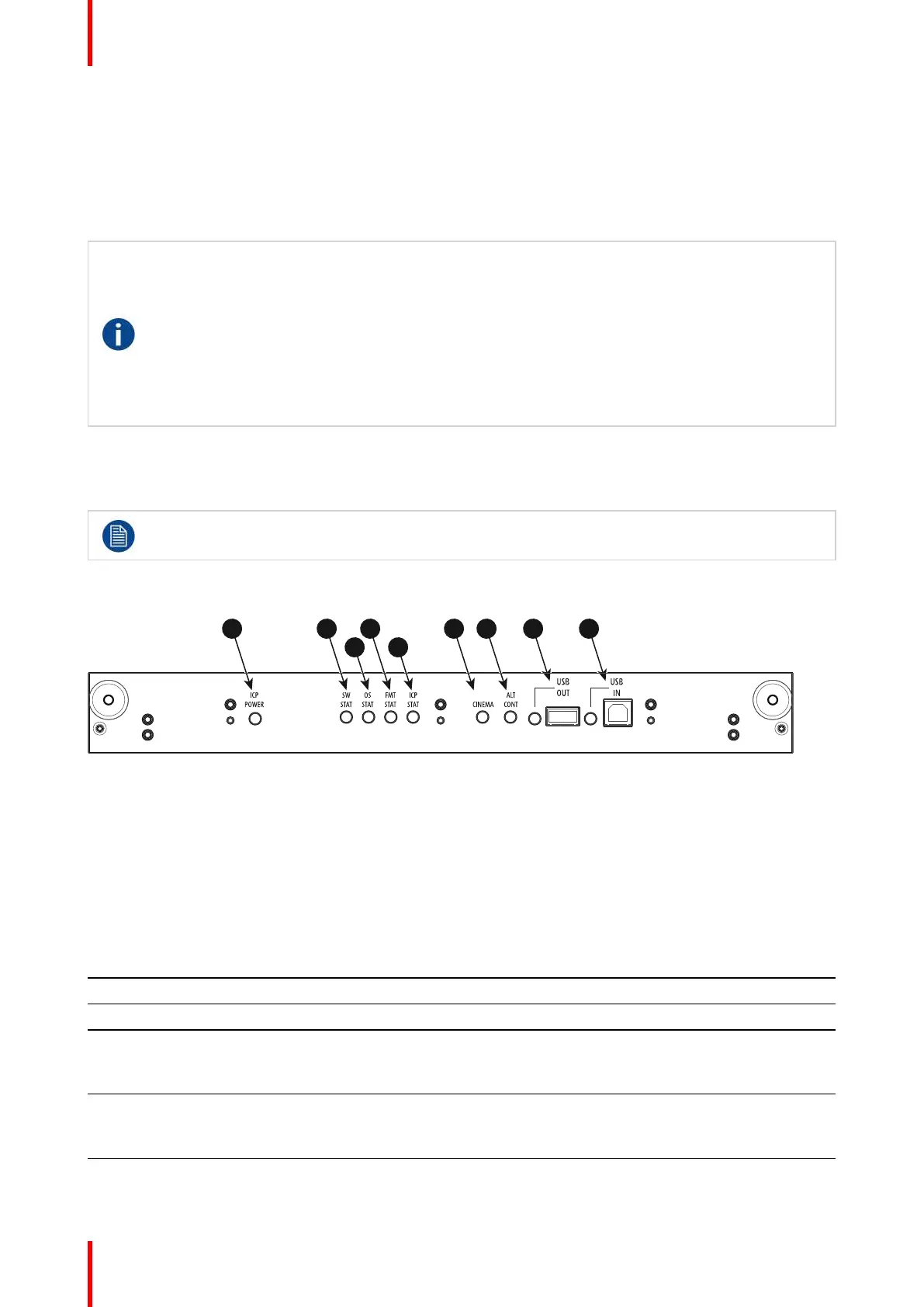

LEDs and ports on the Integrated Cinema Processor
USB
OUT
USB
IN
ICP
POWER
SW
STAT
OS
STAT
FMT
STAT
ICP
STAT CINEMA
ALT
CONT
1 2
3
4
5
6 7 8 9
Image 7-5
1 ICP is powered.
2 ICP software state, normal operation is green
blinking.
3 ICP operating system state, normally full green .
4 ICP FMT configuration state, normally full green.
5 ICP MAIN configuration state, normally full
green.
6 CINEMA port selected. When on, LED 7 will be
out.
7 ALTERNATIVE port selection. When on, LED 6
will be out. (note that this function is disabled.
Led never lights up)
8 USB, for future use.
9 USB, for future use.
LED diagnostic
State description Normal operation
Error state
Software state (LED reference 2) flashing green red or orange
Operating System state (LED reference 3) green off, red or yellow
FMT FPGA state (LED reference 4) green red : unable to configure the FPGA
yellow : FPGA is loaded with the Boot
application
ICP FPGA state (LED reference 5) green red : unable to configure the FPGA
yellow : FPGA is loaded with the Boot
application
