R5906790 /04 Athena 53
ICP functions:
• Stores all projector files. When board is replaced; clone package must be reloaded.
• Stores and generates test patterns.
• Scaling to native resolution, re-sizing, masking, line-insertion de-interlacing, subtitle overlay, color space
conversion, de-gamma, color correction
• Source Selection between alternative content and cinema content.
• Stores a Certificate and Private Key needed for Playback validation
• Contains a real time clock, which must be synchronized with the GMT/UTC time stored in the link decryptor
module or Integrated Media Block (see Communicator software)
• Handles unpacking of special video formats
The ICP board spare part kit is not default programmed for a Athena projector. When using this
board in a Athena projector the software must be re-installed after installation of the board.
When installing a new ICP board in a Athena projector the Spatial Color Calibration file must be
reloaded and activated.
CAUTION: Make sure not to short circuit the battery on the board. That will destroy the board
completely !
7.6 HD-SDI Input Module (optional)
Not available for purchase at Barco for use in Taiwanese market.
Depending on the projector configuration the projector card cage is either equipped with an ICP or
ICMP(-X). In case an ICP is installed then an IMB, IMS, or HDSDI input module can be optionally
inserted into the slot below the ICP. This is not the case if the ICMP(-X) is installed. For more
information about the ICMP(-X) see chapter called ICMP(-X).

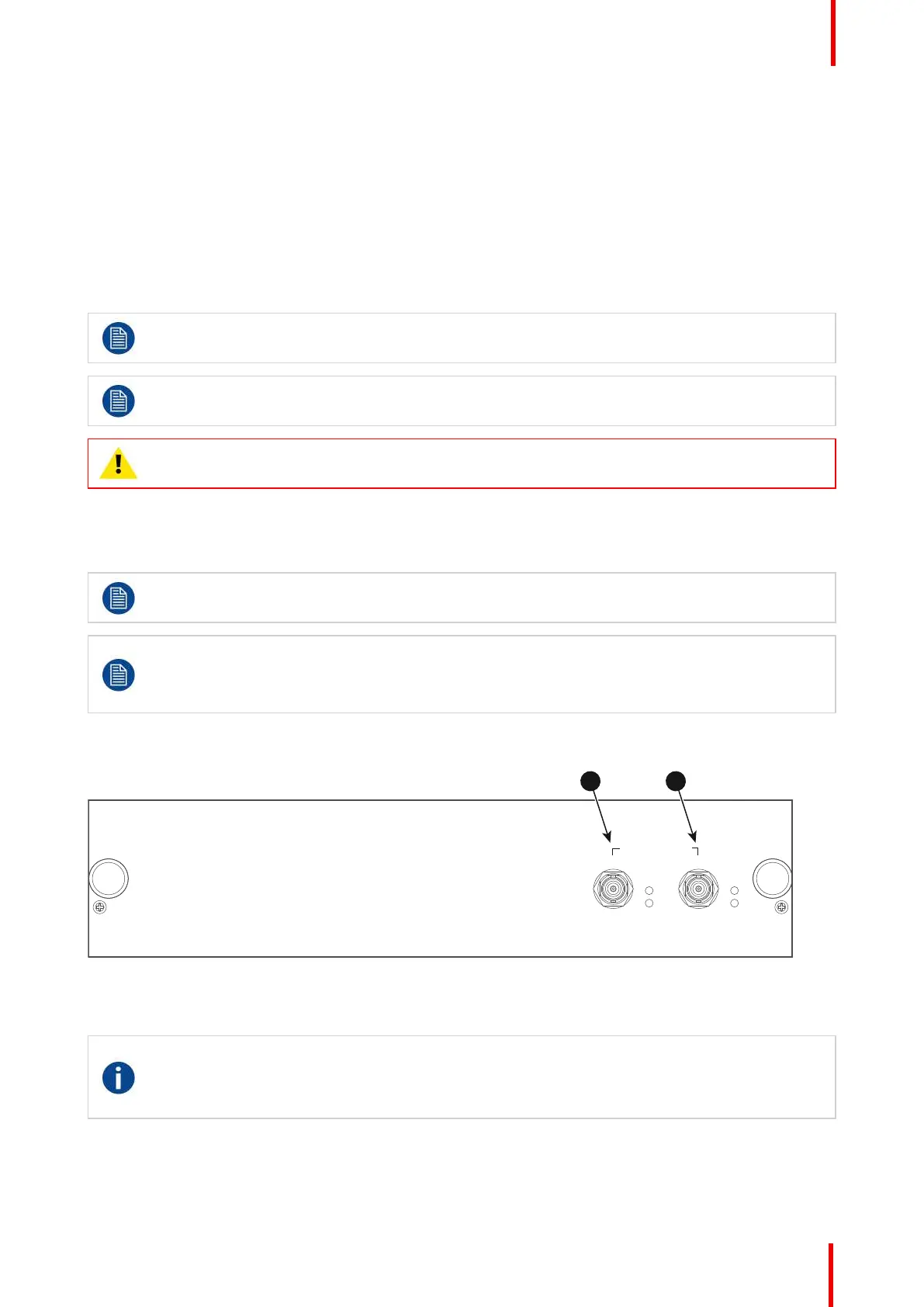

Location of the source input ports
SMPTE 292/424 IN
A B
SEL
SYNC OK
SEL
SYNC OK
1 2
Image 7-6
1 SMPTE 292/424 input, port A (maximum cable length of 30 m allowed)
2 SMPTE 292/424 input, port B (maximum cable length of 30 m allowed)
SMPTE
Society of Motion Picture and Television Engineers - A global organization, based in the United
States, that sets standards for baseband visual communications. This includes film as well as video
standards.
