Barco DP2K-6E User Manual

R5906790 /04 Athena144
Required tools
3 mm Allen wrench.
How to remove the side cover plate from the Light Processor compartment?

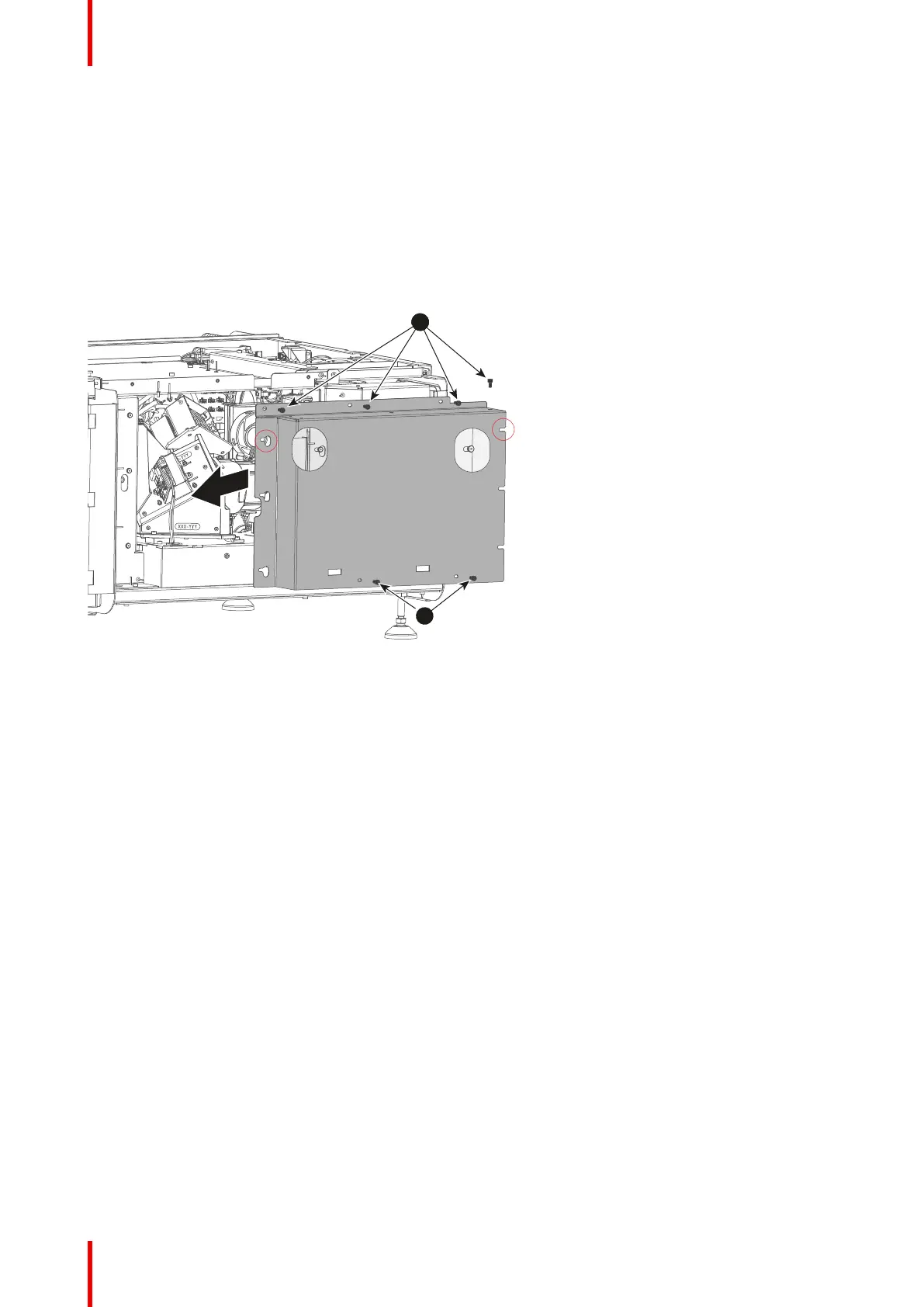

1. Remove the four screws at the top of the cover plate and the two screws at the bottom of the cover plate
(reference 1, Image 16-9). Use a 3 mm Allen wrench.
2. Slide the side cover plate left to disengage the cover, and then remove it.
1
1
Image 16-9
16.8 Installation of the side cover plate of the Light
Processor compartment
Required tools
3 mm Allen key.
How to install the side cover plate from the Light Processor compartment?
1. Place the side cover plate into position and slide to the right until all slots of the side cover plate are correctly
engaged.
Removal and installation of the projector covers

Barco DP2K-6E Specifications

General

Contrast ratio (typical)	1600:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
Noise level	48 dB
AC input voltage	200 - 240 V
