R5906790 /04 Athena142
16.5 Removal of the right side cover
How to remove the right side cover

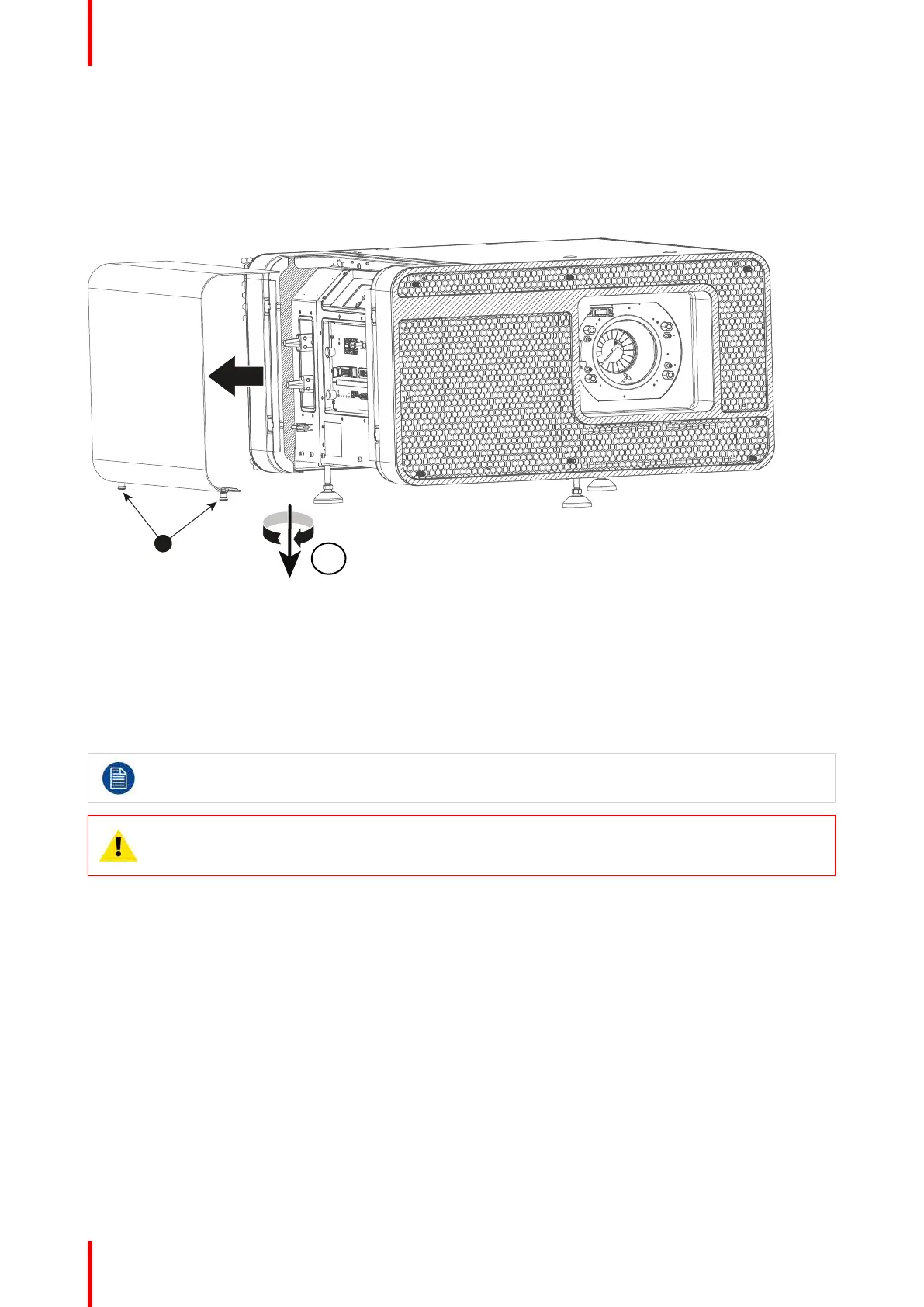

1. Pull down and quarter clockwise turn the two push turn fasteners at the bottom of the right side cover
(reference 1, Image 16-6).
1
1/4
A
Image 16-6
2. Remove the cover by pulling it straight out. Do not lift or tilt the cover while removing it.
16.6 Removal of the top cover plate of the Light
Processor compartment
To access the top cover plate of the Light Processor compartment the projector top cover has to be
removed first. This procedure assumes that the projector top cover is already removed.
CAUTION: Opening the Light Processor compartment by removing the top cover plate or side cover
plate will result in a tamper event. An authorization to clear the security warning on the projector,
after closing off the Light Processor compartment, will be needed!
Required tools
3mm Allen wrench.
How to remove the top cover plate from the Light Processor compartment?
1. Remove the seven screws (reference 1, Image 16-7) of the top cover plate. Use a 3 mm Allen key.
