R5906790 /04 Athena 95
5. Remove the right side cover.“Removal of the right side cover”, page 142.
6. Connect the circular plug of the customized cable with the circular socket (6) at the right side of the Local
Keypad of the projector.
Caution: To avoid connector damage, align the pins before you connect the customized cable.
Note: Ensure to tighten the locking nut on the connector.

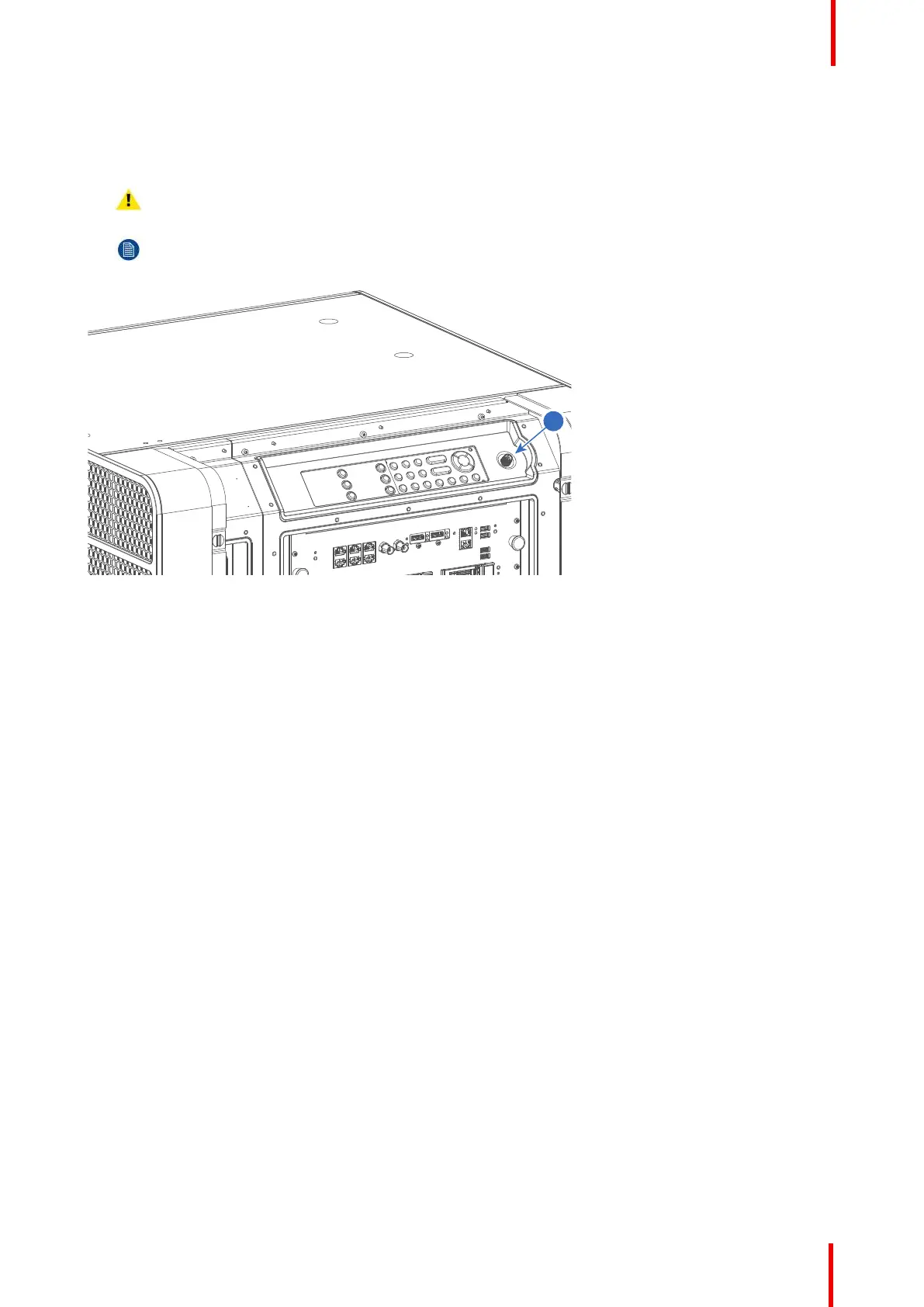

Image 9-8
7. Attach the multi cable to the swivel arm using the two Velcro strips.
8. Position the Touch Panel interface in the desired location. See “Repositioning the Touch Panel interface”,
page 95.
9.3 Repositioning the Touch Panel interface
How to reposition the Touch Panel interface?
1. Hold the Touch Panel interface with one hand.
2. Release the central swivel clamp by turning the knob (7) counterclockwise.
Communicator Touch Panel
