R5906790 /04 Athena40

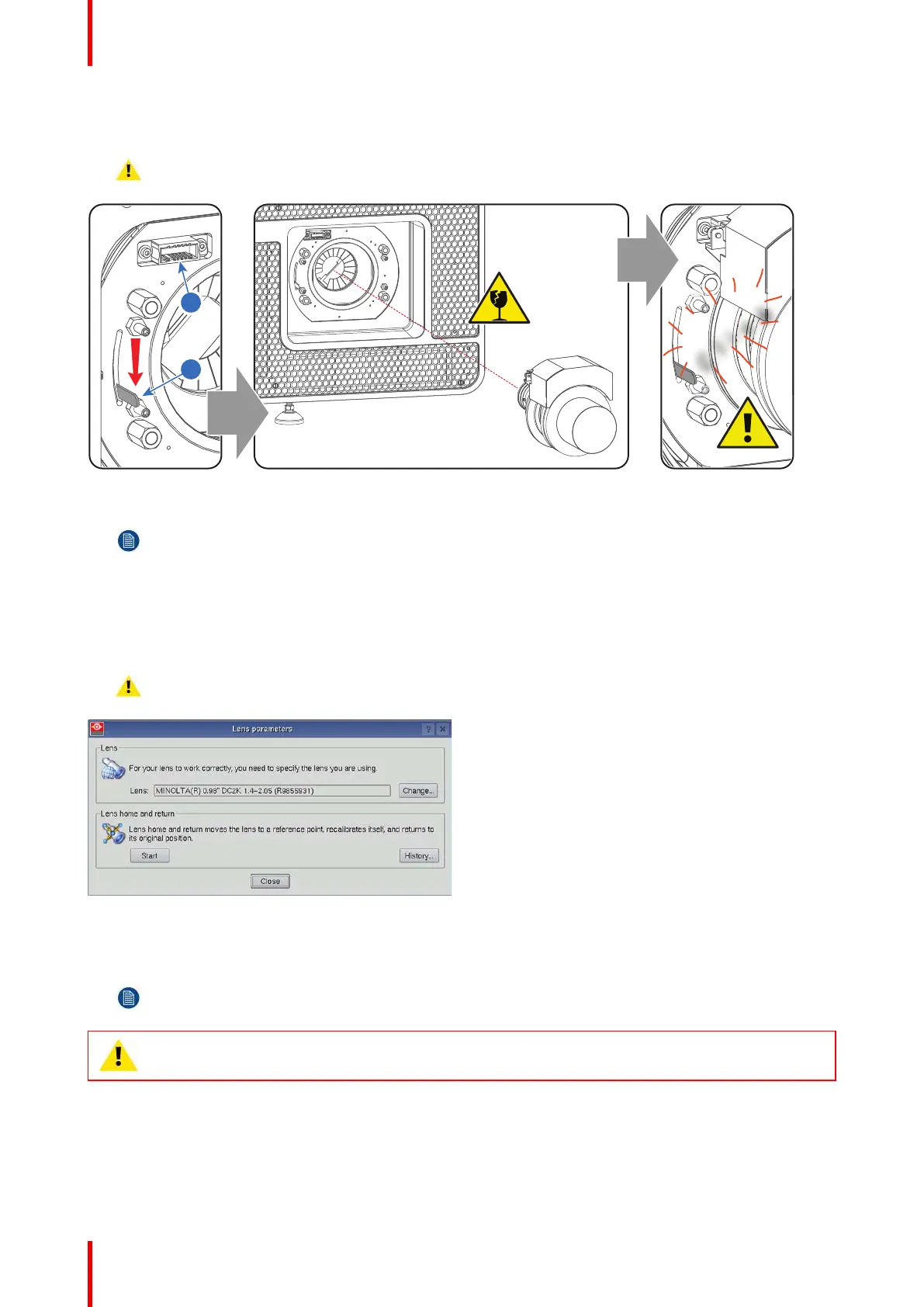

6. Push the lens completely against the Lens Holder front plate. An audible click should be noticed. Once
seated, there may be no airgap between lens flange and Lens Holder front plate.
Caution: Ensure that the lock handle remains in the “locked” position.
Image 6-7
Note: For frequent installation and removal of the lens it is recommended to install the lens while the
lock handle is in “open” position (upwards) and put the lock handle in “locked” position once the lens is
inserted. Then check if the lens is properly installed by trying to pull the lens out of the Lens Holder.
(this alternative procedure result in less wear of the Lens Holder)
7. Check if the lens is really secured by trying to pull the lens out of the Lens Holder.
8. Activate the corresponding lens parameters for the installed lens. (See user guide of the “Communicator”
chapter Installation > Advanced > Lens parameters)
Caution: Not using the correct lens parameters could result in lens damage.
Image 6-8
9. Perform a lens HOME & RETURN operation. (See user guide of the “Communicator” chapter Installation >
Advanced > Lens parameters)
Note: The HOME & RETURN operation enables the projector to determine the reference positions of
the motorized ZOOM and FOCUS barrels of the installed lens.
CAUTION: Never transport the projector with a Lens mounted in the Lens Holder. Always remove
the Lens before transporting the projector. Neglecting this can damage the Lens Holder and Prism.
