Instruction Manual w VERTICUS 5 Compressor Units
A-14
16
22
13
21
3
1
2
4
8
11
9
10
6
5
17
12
20
18
15
19
14
7
23

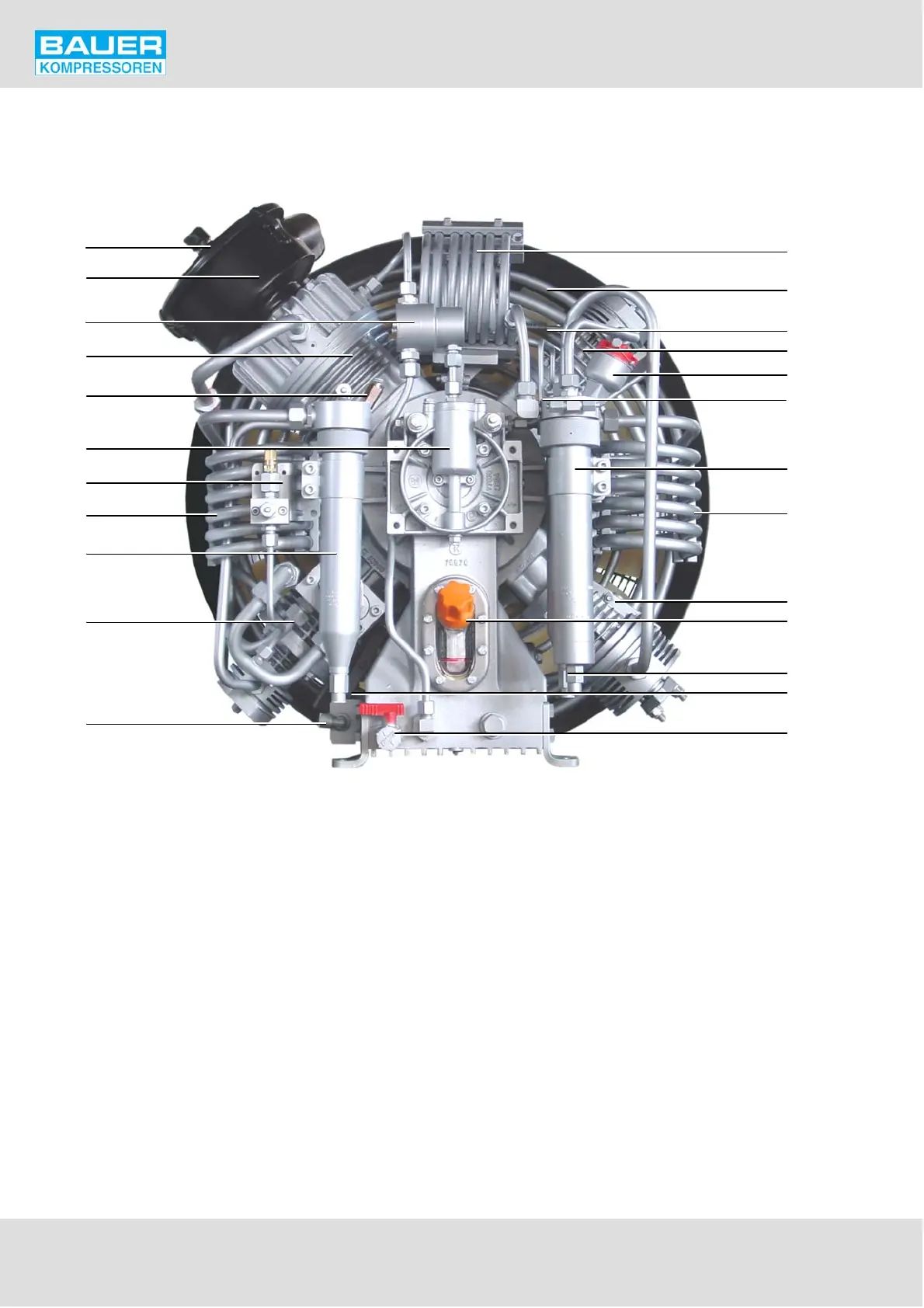

Fig. 11 Compressor block IK18.1, front view
1 Service indicator
2 Intake filter
3 Oil separator, crankcase vent feedback line
4 Cylinder, 1st stage
5 Intermediate pressure safety valve, 3rd stage
6 Oil pump housing
7 Intermediate pressure safety valve, 1st stage
8 Inter-cooler, 3rd stage
9 Intermediate separator, 3rd stage
10 Cylinder 2nd/4th stage
11 Compressed air outlet, 5th stage
12 Inter-cooler 4th stage
13 Inter-cooler 1st stage
14 After-cooler 5th stage
15 Cylinder, 5th stage
16 Intermediate pressure safety valve, 4th stage
17 Intermediate pressure safety valve, 3rd stage
18 Intermediate separator, 4th stage
19 Inter-cooler 2nd stage
20 Cylinder 3rd stage
21 Oil filler with sight glass
22 Condensate outlet
23 Oil drain tap
