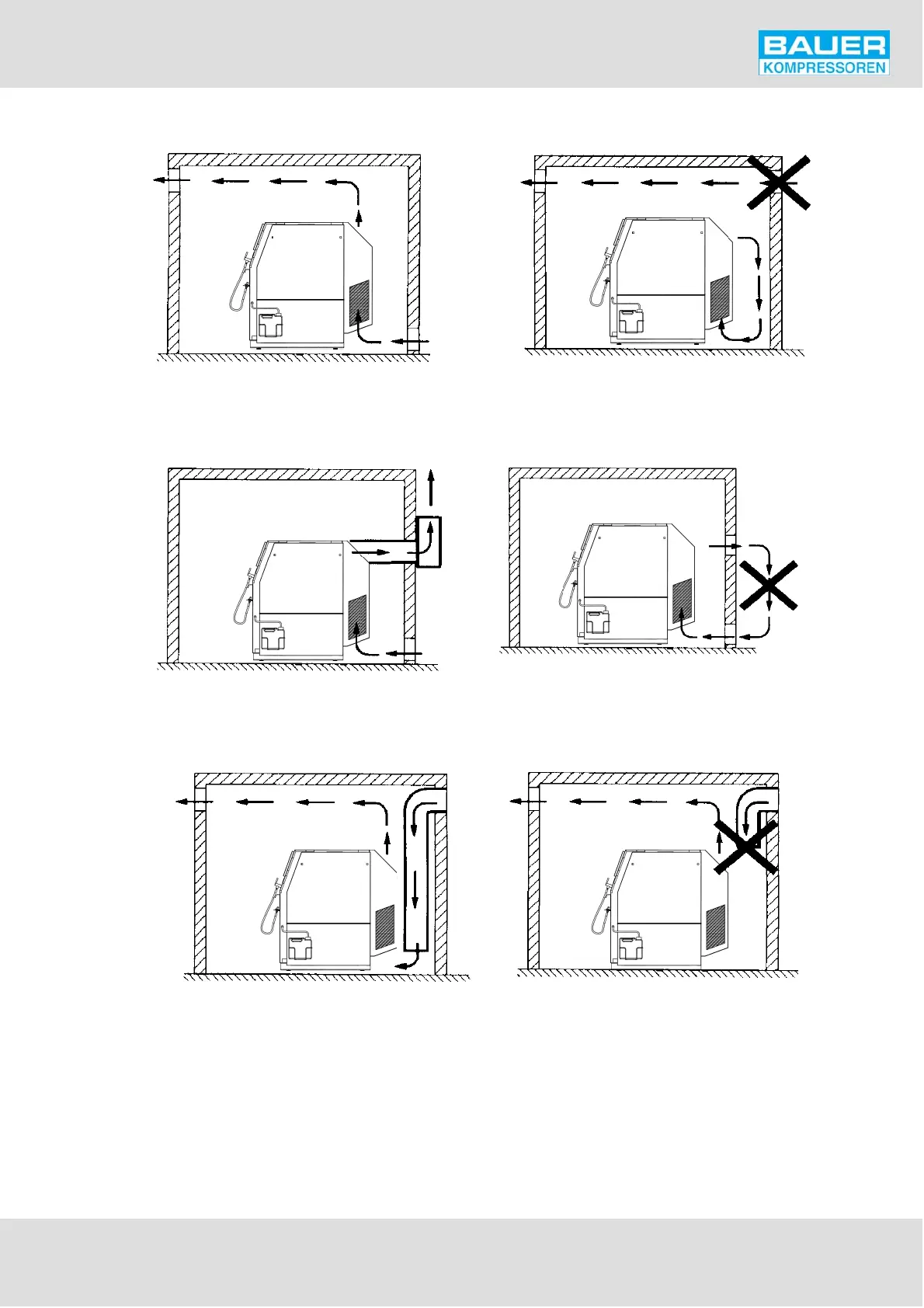

Fig. 88 to Fig. 90 show installation examples with natural ventilation:

Correct: Air intake low, cooling air flows

though unit

Incorrect: Air intake high, cooling air does not

reach unit

Fig. 88 Installation with natural ventilation, example 1

Correct: Air outlet duct upwards, cooling air

circulation impossible

Incorrect: Warm air is not taken away, but

circulates and will be taken in again

Fig. 89 Installation with natural ventilation, example 2

Correct: Cooling air led directly

to unit

Incorrect: Cooling air does not reach intake

opening, intake air duct too short

Fig. 90 Installation with natural ventilation, example 3
