Instruction Manual w VERTICUS 5 Compressor Units
B-4
For further information on the installa
tion of air cooled compressors, see our In
stallation Manual which can be obtained
from BAUER Customer Services, P.O.
710260, D-81452 Munich
1.5. NATURAL VENTILATION
Natural ventilation is the most simple and commonly used.
It is created by convection and is sufficient if no thermal
overload is expected, i.e. for units with small drive motors,
for intermittent operation or in moderate climates this is the
ideal method of cooling the compressor unit.
The inlet and outlet air openings are dependent on:
- the power of the electric motor
- the height difference between air intake and outlet
openings
- the air volume of the compressor room.

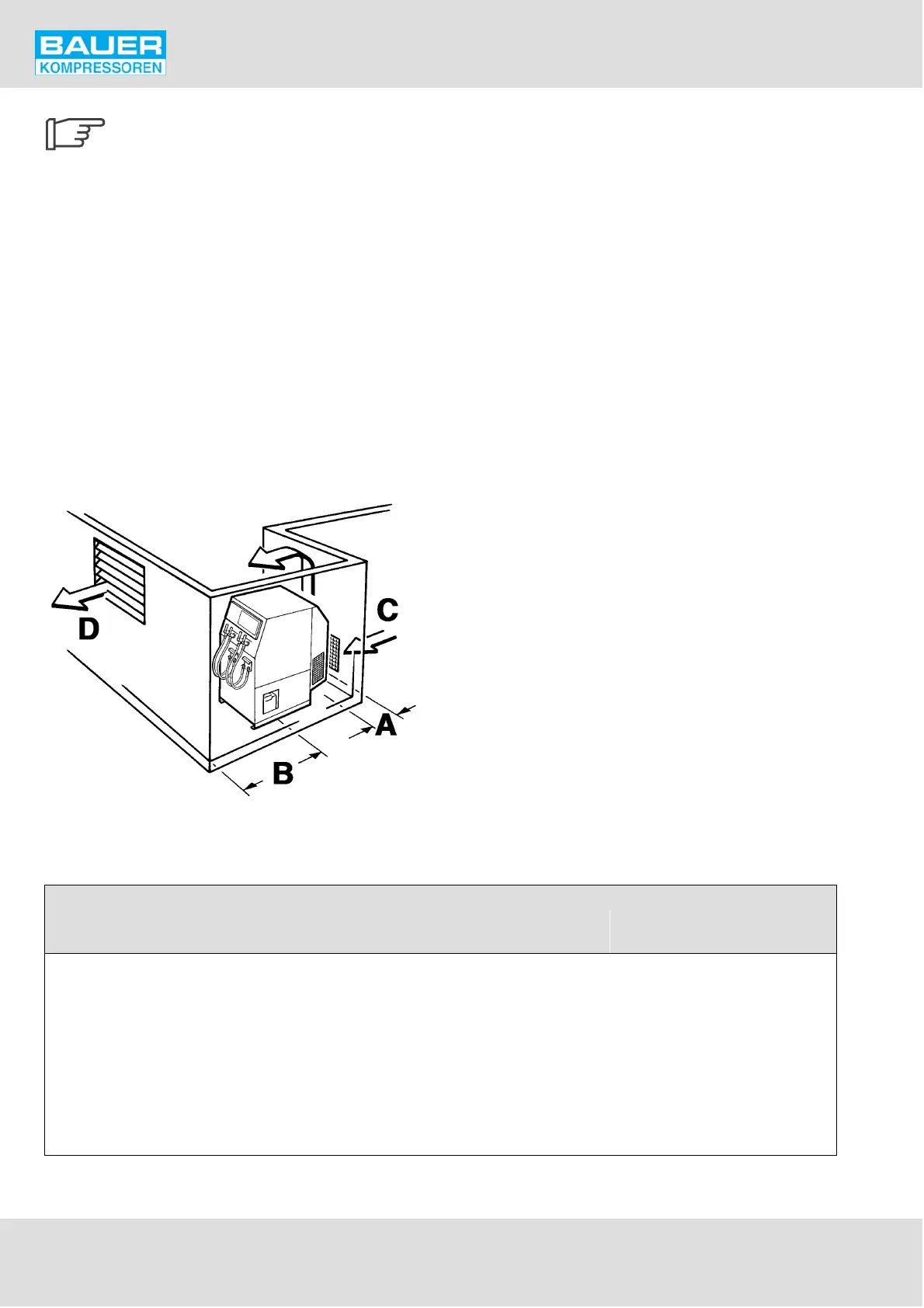

Fig. 87 Installation (natural ventila
tion)
A Minimum distance from wall, intake side:
Standard unit: 0.5 m
Super-Silent unit: 0 m
B Minimum distance from wall, exhaust side: 0.75 m (may
be ignored if locating the unit in front of an opening)
C Intake opening: refer to Tab. 1
D Exhaust opening: refer to Tab. 1
Table 1 shows some significant values. If the indicated val
ues cannot be obtained, artificial ventilation will be neces
sary, see chapter 1.6.
Power
(kW)
Room volume / Height difference
V = 50 m
3
Dh = 2 m
V = 100 m
3
Dh = 3 m
V = 200 m
3
Dh = 4 m
Intake Outlet Intake Outlet Intake Outlet
2.2 0.12 m
2
0.10 m
2
-- -- -- --
3 0.24 m
2
0.20 m
2
0.12 m
2
0.10 m
2
-- --
4 0.30 m
2
0.25 m
2
0.12 m
2
0.10 m
2
-- --
5.5 0.42 m
2
0.35 m
2
0.24 m
2
0.20 m
2
0.12 m
2
0.10 m
2
7.5 0.90 m
2
0.75 m
2
0.60 m
2
0.50 m
2
0.24 m
2
0.20 m
2
11 1.38 m
2
1.15 m
2
0.90 m
2
0.75 m
2
0.54 m
2
0.45 m
2
15 1.92 m
2
1.60 m
2
1.45 m
2
1.20 m
2
0.90 m
2
0.75 m
2
Tab. 1 Air intake and outlet openings
