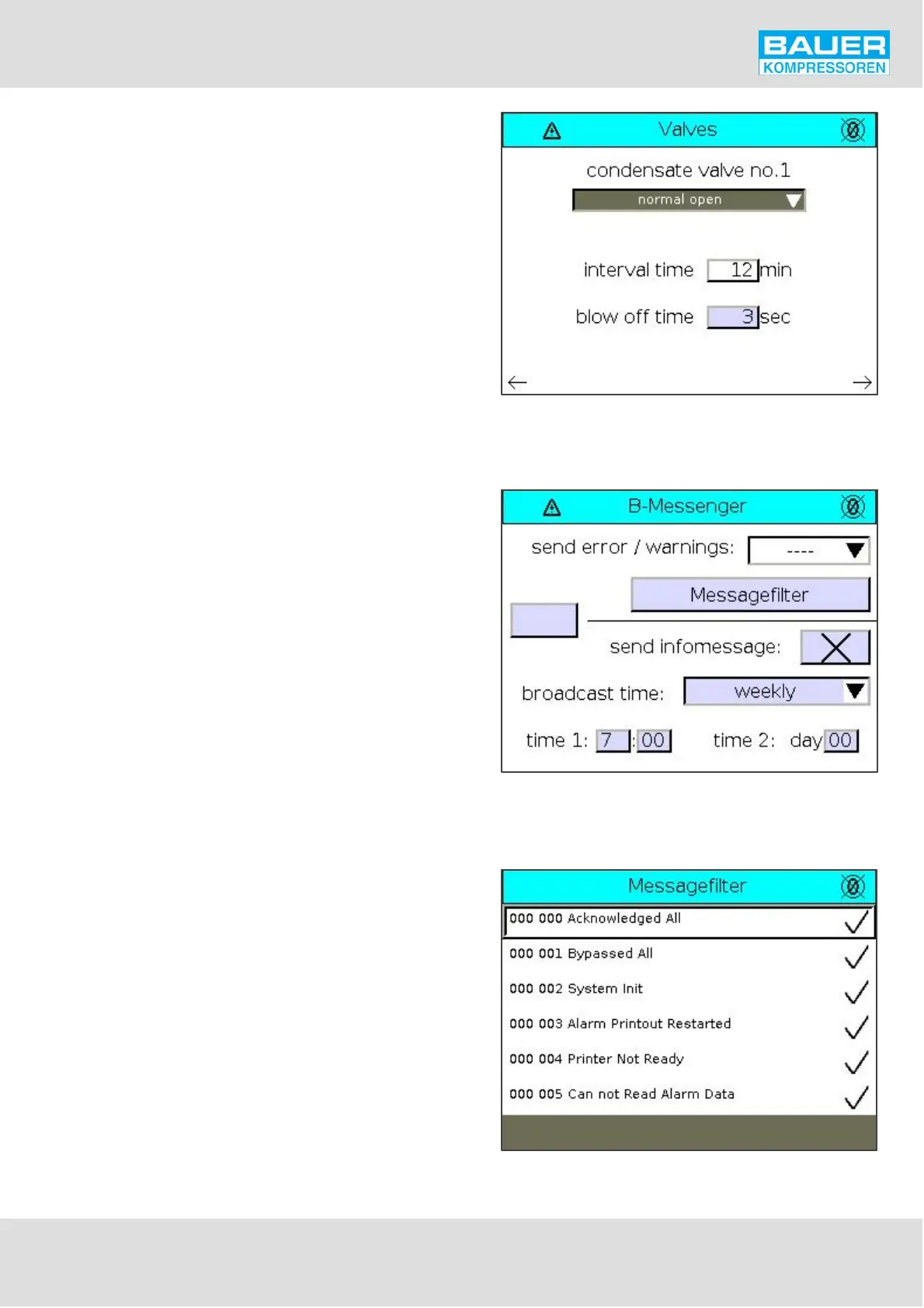

Fig. 70 Valves
Fig. 71 B-Messenger
Fig. 72 Message filter
B-VPN
Instruction Manual w VERTICUS 5 Compressor Units
A-61
Valves
The Valves pages enables the setting of condensat drain
valves and intake shut-off valve (if provided).
The operating mode (Normally Close or Normally Open) of
the valve is selected with the help of the list field.
Drain time interval (in minutes) and drain duration (in se
conds) are settable for each valve. The settings depend on
compressor type and operating conditions.
For the intake shut-off valve (if provided), only closing and/
or opening time delay are settable.
B-Messenger
The B-Messenger page enables to activate resp.
deactivate the broadcasting of failure and warning
messages.
The list field „send error / warnings“ enables to select a
communication device:
---- (none)
B-Messenger (for B-Messenger 1)
B-VPN (for B-Messenger 2).
Press the „Message filter“ field to set the type of messages
to broadcast. See below for further detail.
Press the „B-VPN“ field to set the B-Messenger 2. See page
for further information.
The broadcast time can be set to daily, weekly or monthly.
For daily broadcast two different times are settable. Day
and time are settable for weekly or monthly broadcast.
The Message filter enables to select the type of messages
to broadcast by setting a tick on the corresponding
messages.
All messages are selected in the factory settings.
