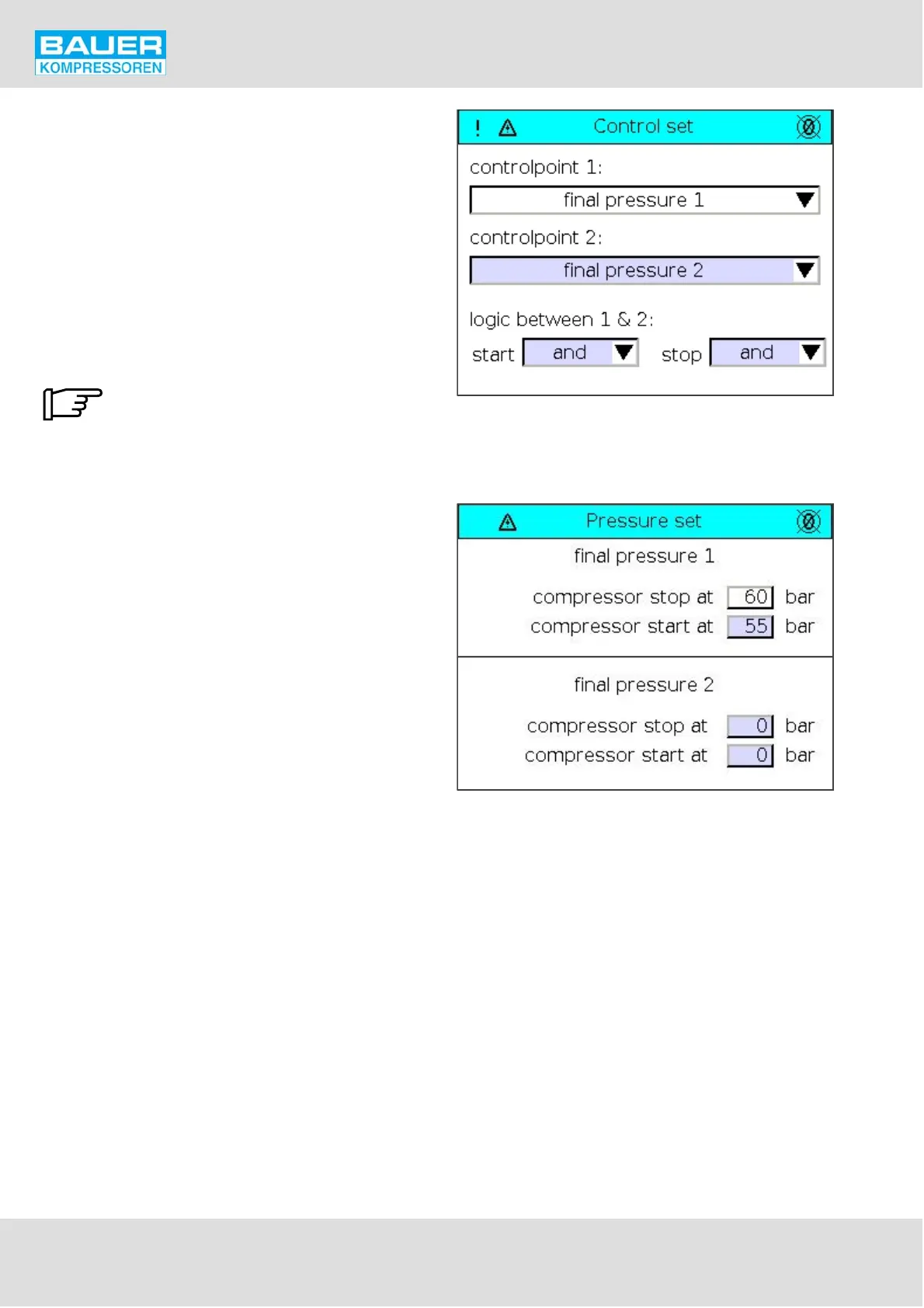

Fig. 57 Control settings
Fig. 58 Pressure values
Instruction Manual w VERTICUS 5 Compressor Units
A-56
Control settings
The regulation settings to control the unit are defined on
the Control settings page (Fig. 57).
Control point 1, control point 2: selection between final
pressure 1, final pressure 2, suction pressure, gas balloon
analogue, gas balloon digital.
Suction pressure, gas balloon analogue, gas balloon digital
are only used for gas compression installation.
Logic between 1 & 2: selection between AND and OR, i.e.
whether one or both control points have to be reached in
order to start resp. stop the compressor.
Note: White coloured fields are selected
values, light grey coloured fields are
changeable values and dark grey
coloured fields are changeable values wich cannot be
changed in current password level.
Pressure settings
The Pressure set page enables to set start and stop
pressures according to the final pressure 1 and the final
pressure 2.
