Chapter 6: Maintenance 111
2 Remove the Bal seal by gripping it between your thumb and index finger
and pulling (Figure 6-7).

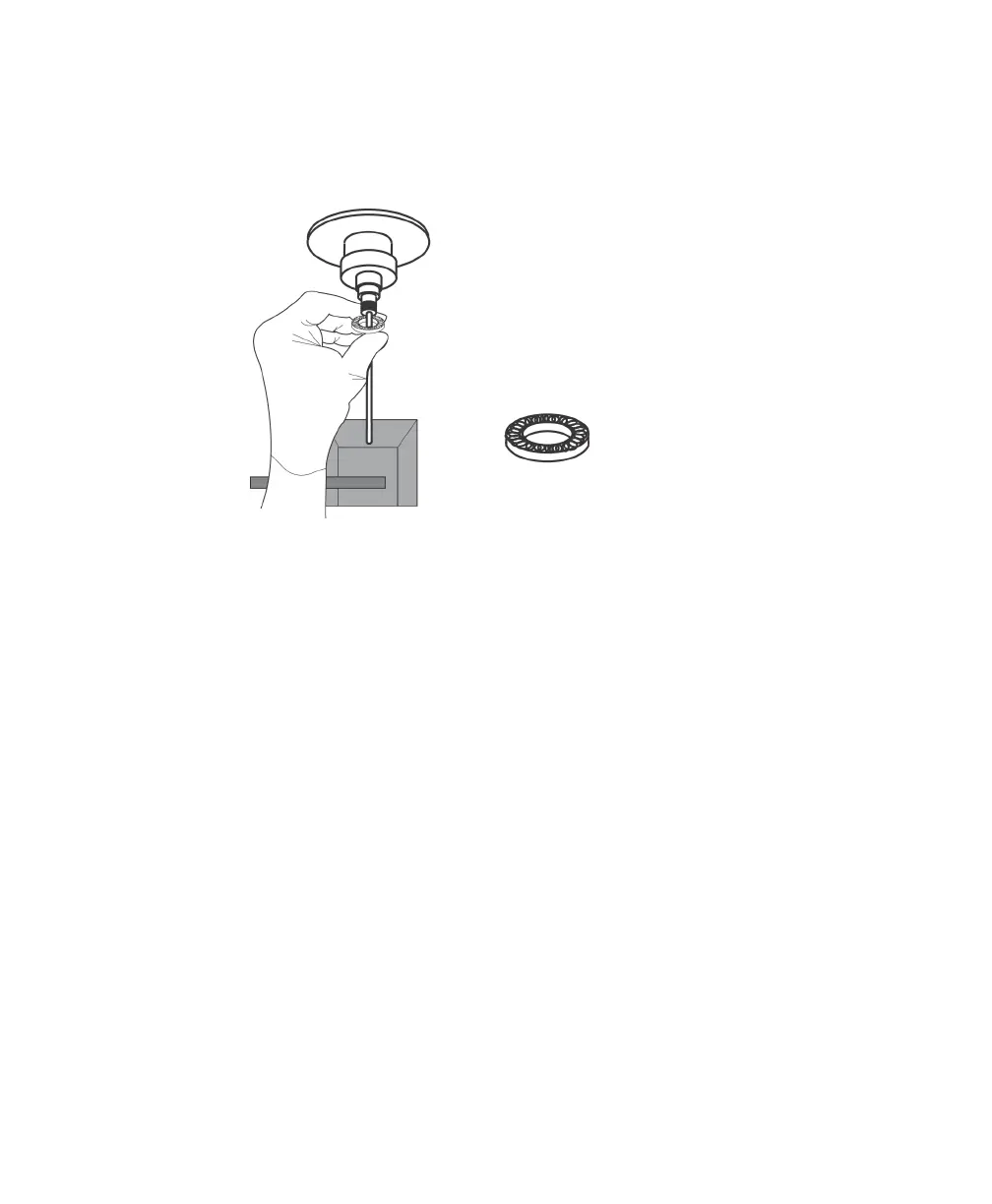

Figure 6-7 Removing the Bal seal
3 Install the new Bal seal spring-side up.
Gently push the seal in place to seat it.
4 Reinstall the retainer and outer sleeve over the sample injection tube.
Tighten the retainer just enough to hold it in place.
5 Install a sample tube on the SIP to ensure that the outer sleeve has been
properly installed.
If the sleeve hits the bottom of the tube, loosen the retainer slightly and
push the sleeve up as far as it will go. Tighten the retainer.
LSR2.book Page 111 Tuesday, April 25, 2006 3:34 PM
