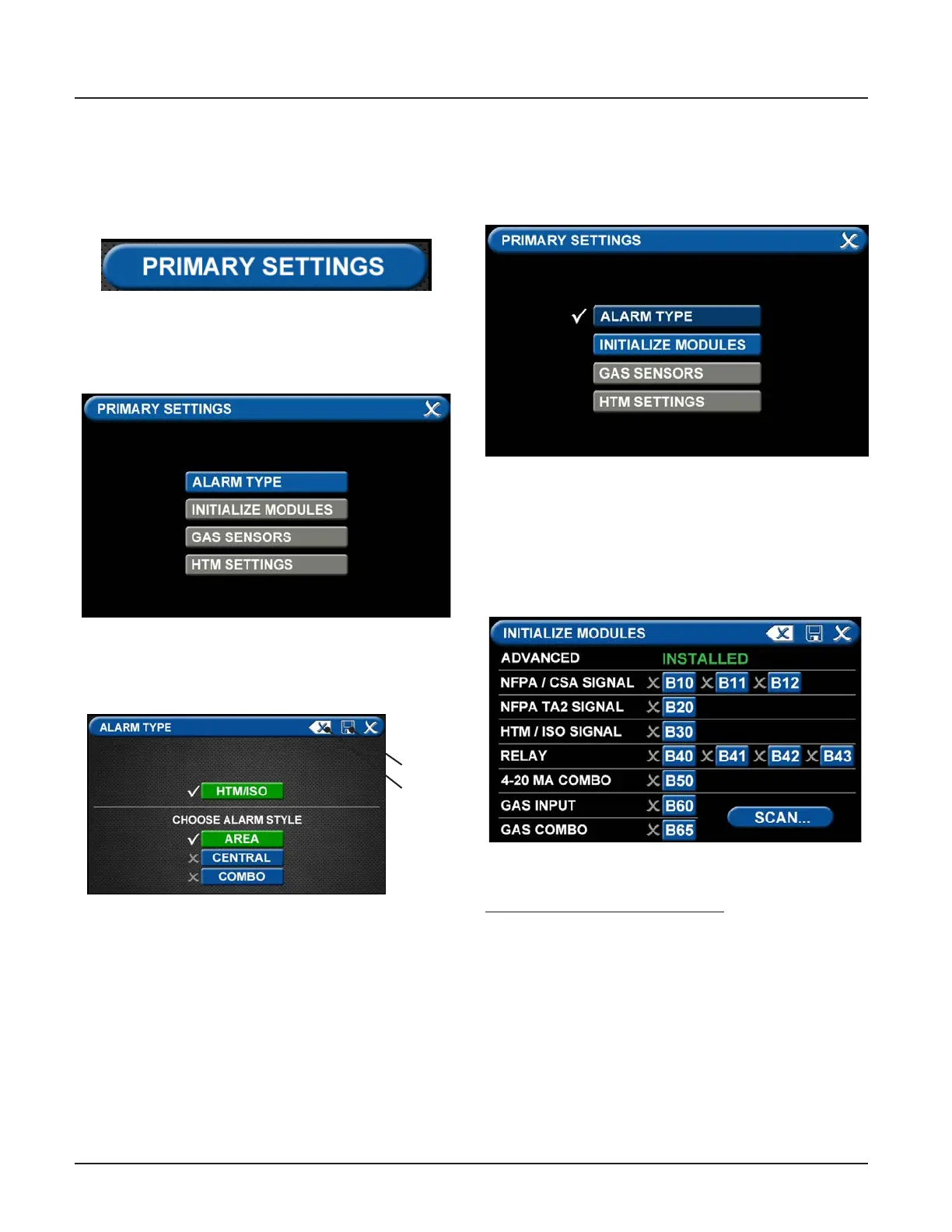

Figure 26: Alarm Type Tab
Figure 27: Choosing Code and Alarm Styles
Save
Erase
Figure 28: Initialize Modules Tab
Figure 29: Initialize Modules Screen
Primary Settings Tab
The PRIMARY SETTINGS tab allows you to select the
alarm type, initialize boards, and select gas inputs.
• Touch the PRIMARY SETTINGS tab
Alarm Type Tab
The ALARM TYPE screen denes which type of alarm
will be displayed and drives later setup functions.
• Touch the ALARM TYPE tab.
• Choose a code style based on code requirements.
• Touch the AREA tab
• Touch the Save button when you see checks beside
your selections to save the settings and return to
the PRIMARY SETTINGS screen.
Note: To clear your selections, touch the Erase button.
Initialize Modules Tab
The PRIMARY SETTINGS screen will now display with
ALARM TYPE checked, INITIALIZE MODULES active, and
the other tabs grayed out.
• Touch the INITIALIZE MODULES tab.
The INITIALIZE MODULES screen is used to set up the
boards that are installed. The boards function as the
input/output hardware of the alarm.
At this point, you have two options:
1. Either touch the Scan button to prompt the alarm
to auto ll the screen for you.
OR
2. Complete the screen by selecting the boards
installed in the alarm.
