Product description | MT 788 | 29
en
3.5 MT 788
651016-01 _Sr
1
3
4
5 6
7
9
8
10/1
10
10/2
2
13
14
15
12
11

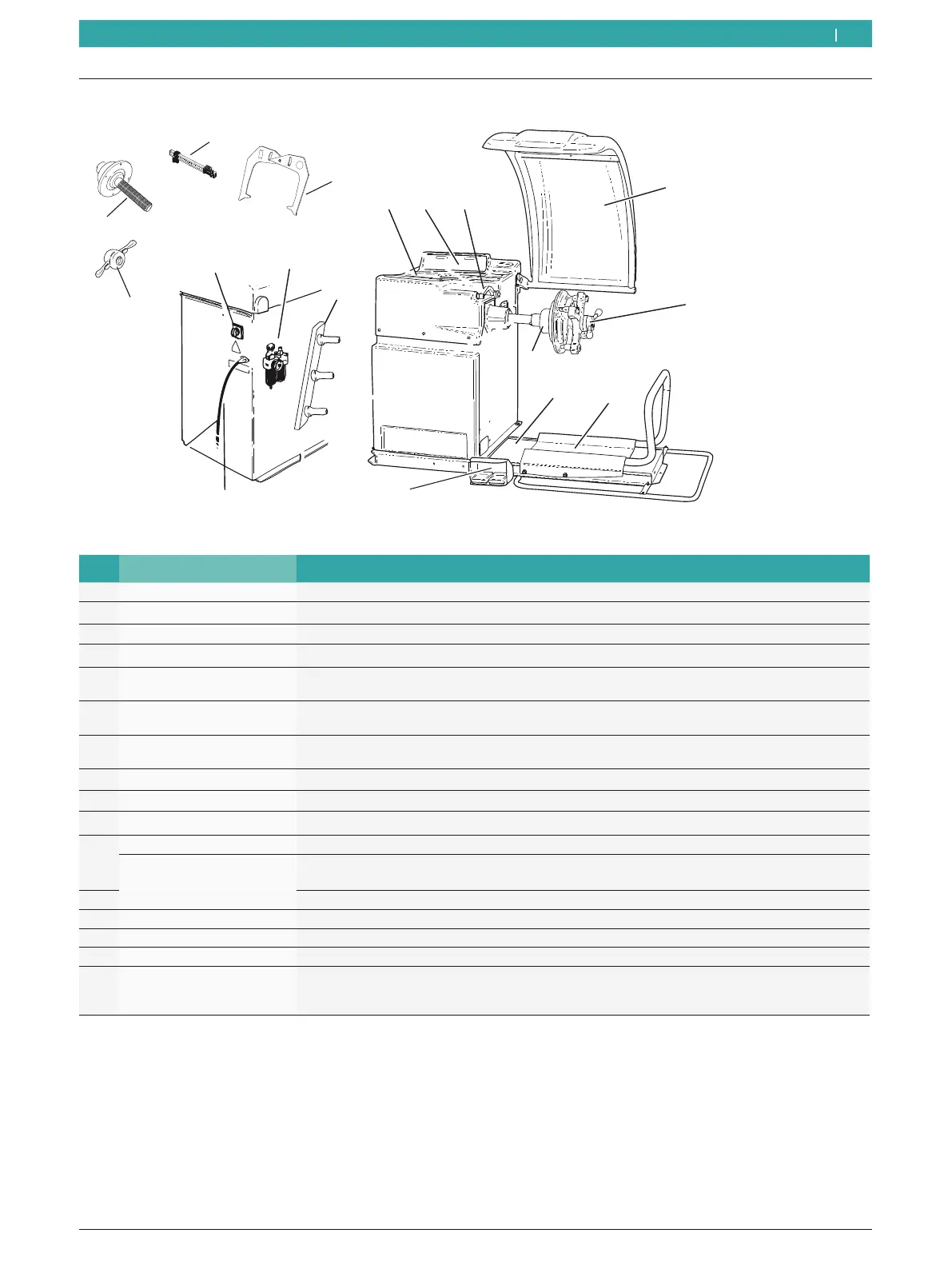

Fig. 1: MT 788
Item Designation Functions
1 On/off switch Switch-on and switch-off
2 Clamping tool holders For storing accessories
3 Power cord For power connection
4 Tray For storing balance weights and accessories
5 Control/display panel R Operation of MT 788, refer to Section 7
R Software display (measured values and operating instructions)
6 Vernier caliper R Recording of rim distance and rim diameter.
R Determination of positions for attachment of adhesive weights.
7 Wheel guard R Protection of operator against flying particles (e. g. dirt, water)
R Starting and stopping measurement
8 Quick-action clamping nut Centering and attachment of wheel on cone
9 Centering flange Wheel attachment.
10 Wheel lift Lifting device to assist with attachment and removal of wheel
10/1 Wheel lift slide Horizontally adjustable wheel rest
10/2 Pedal R Left pedal: Raises the wheel rest
R Right pedal: Lowers the wheel rest
11 Quick-action clamping nut Centering and attachment of wheel on cone
12 Centering flange Wheel attachment.
13 Manual vernier caliper Can be used as substitute if the electronic vernier caliper is defective.
14 Measuring compasses Can be used as substitute if the rim width and rim diameter cannot be recorded electronically.
15 Service unit with com
-
pressed air connection
R Checking/adjustment of operating pressure.
R Removal of dirt.
R Oil supply for compressed air system.
