12. Maintenance
12.1 Recommended lubricants/oil mist
lubricator
Component Lubricant Standard
Compressed air system ESSO FEBIS K 32 ISO 32
Tab. 2: Lubricant table
! The manufacturer cannot accept any liability for da-
mage arising from the use of other lubricants.
12.2 Cleaning and servicing
!
Before cleaning and servicing, switch off MT 788 and
disconnect mains plug.
! Do not use any solvent-based cleaning agents. Use
alcohol or similar cleaning agents for plastic parts.
The following work is essential to ensure proper opera-
tion and high performance of the MT 788:
12.2.1 Service intervals
Servicing
Weekly Once a year
Clean moving mechanical parts, treat with spray oil
or kerosene and lubricate with engine oil or
a suitable grease.
x
Remove condensate.
x
Check the oil level in the oil mist lubricator.
x
Replace the oil in the oil mist lubricator.
x
T
ab. 3: Service intervals
12.2.2 Removing condensate
1. Turn the red knob at the bottom of the water separa-
tor counter-clockwise.
2. Remove the accumulated condensate.
3. Turn back the red knob at the bottom of the water
separator.
12.3 Spare and wearing parts
The manufacturer cannot accept any liability for
damage arising from the use of non-genuine replace-
ment parts.
Designation Order number
Standard centering flange 1 695 602 400
Centering cone 42 - 65 mm 761 632 500
Centering cone 54 - 80 mm 931 145 234
Centering cone 75 - 110 mm 931 145 030
Weight pliers 761 606 500
Manual vernier caliper 761 629 400
Test clip 1 695 602 700
Calibration weight 761 654 377
Calibration weight (calibrated) 1 695 654 376
Voltage sticker V 230 1 695 101 269
Voltage sticker V 110 1 695 100 854
Direction of wheel rotation sticker 1 695 653 878
Tab. 4: Spare and wearing parts

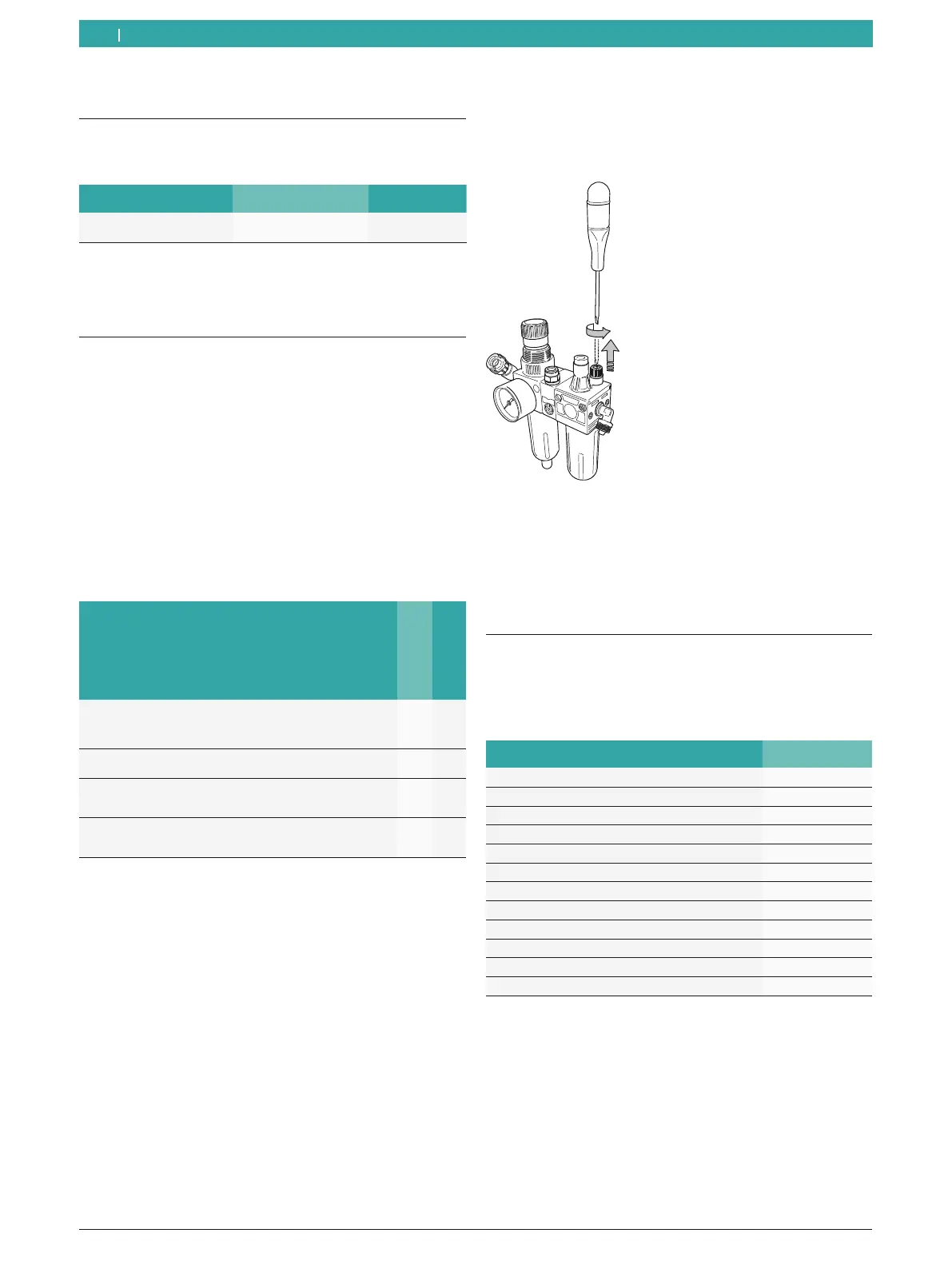

12.2.3 Topping up oil in oil mist lubricator
1. Remove the compressed air connection.
2. Screw the container to the oil mist lubricator.
3. Top up with oil.
651003-12_Rf
12.2.4 Replacing oil in oil mist lubricator
1. Remove the compressed air connection.
2. Screw the container to the oil mist lubricator.
3. Drain off and dispose of the oil.
4. Fill with fresh oil.
