Fitting and removing the flange | MT 788 | 33
en

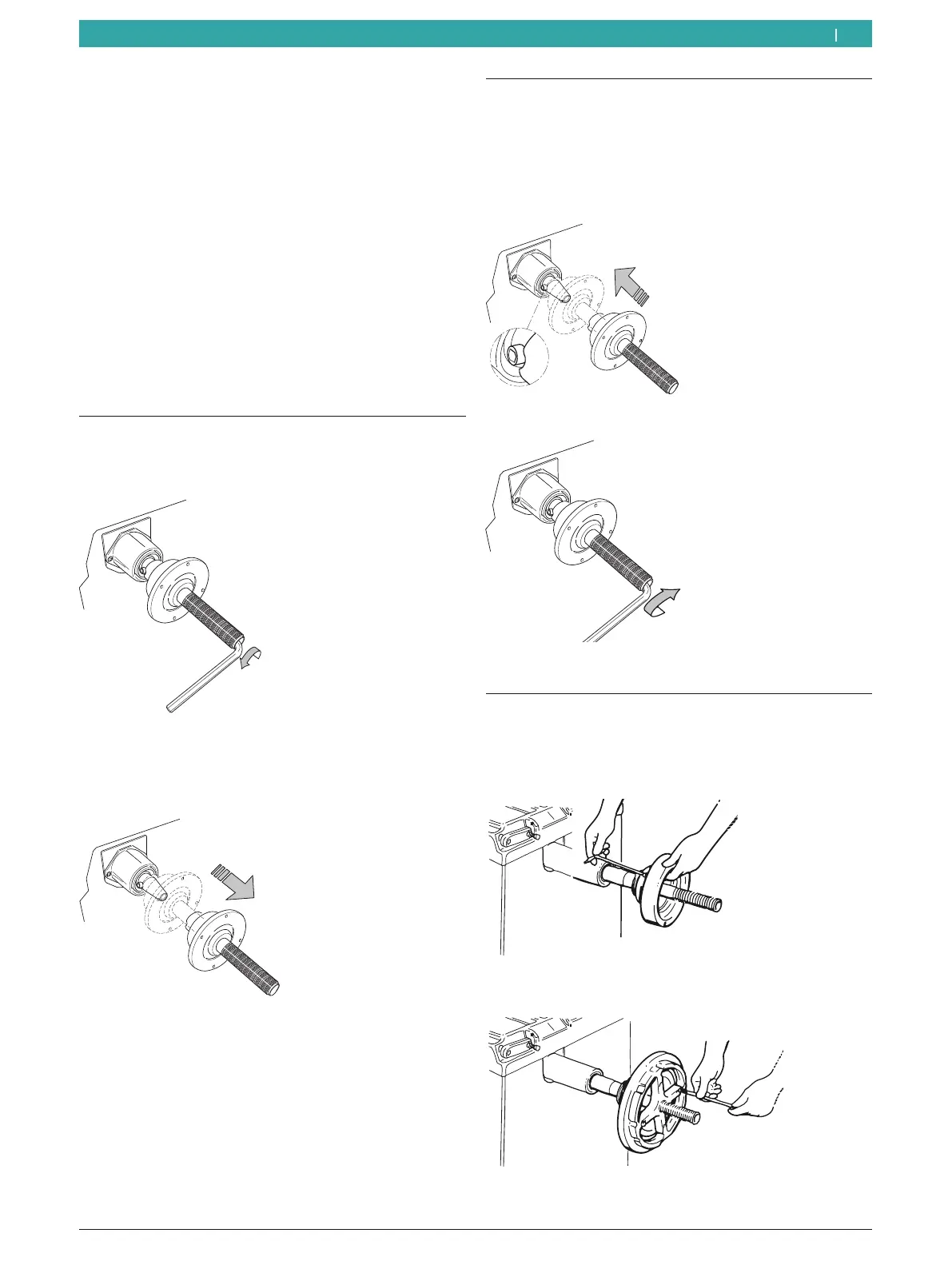

5. Fitting and removing the
flange
Fitting of the flange is necessary in the following
situations:
R Commissioning
R When changing the type of flange
(centering flange, universal flange, special flange)
R When changing the type of wheel
(passenger car - truck)
! Balancing accuracy will be impaired if the flange has
not been properly fitted to the shaft.Before fitting the
flange, clean and degrease (remove corrosion protec-
tion) the cone of the shaft and the flange opening.
5.1 Removing the flange
1. Slacken off the hexagon socket head bolt.
651002-04 _Rf
2. Unfasten the flange by tapping with a rubber-headed
hammer on the cone end.
3. Pull the flange off the cone.
651002-06 _Rf
"Flange detached.
5.2 Fitting the passenger vehicle flange
i
Clean and degrease the cone of the shaft and the
flange opening.
1. Slide the flange onto the shaft.
651002-05 _Rf
2. Tighten the hexagon socket head bolt.
651002-03 _Rf
"Flange fitted.
5.3 Fitting the commercial vehicle flange
1. Use 2 bolts to attach the truck spacer ring to the
passenger vehicle flange.
651016-08_Rf
2. Secure the commercial vehicle flange with 2 bolts.
651016-09_Rf
