Preparing the System
T3300 Diagnostic Ultrasound System | 35 | B00601-010 4/10/17
4.5 Connecting the Transducer

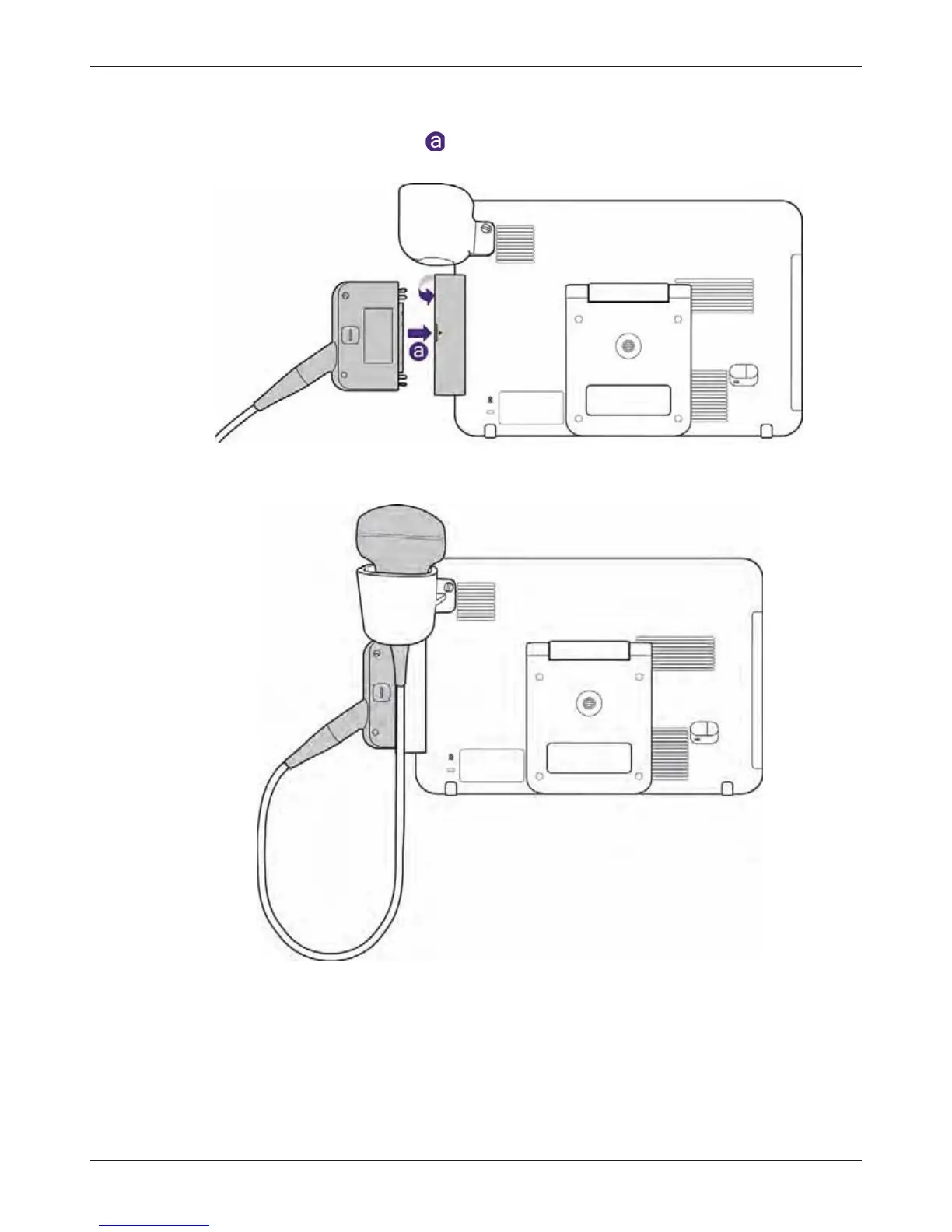

1. Flip the transducer cover open and insert the transducer carefully into the transducer
connection socket until it is locked in place.
2. Place the transducer in the transducer holder and ensure that the cable hangs down smoothly
from the opening of the transducer holder.
