S10/S12/S10A/S12A Patient Monitor User’s Manual
8-20

(1) Parameter label
(3) ST alarm off symbol
(2) ST unit
(4) Lead label
(5) ST numerics: a positive value indicates ST segment elevation, and a negative
value indicates ST segment depression.
8.7.4. Displaying ST Segment in Waveform Area
The steps for displaying ST segment in waveform area are as follows:
1. Enter the 【Screen Layout】 page in one of the following ways:
 Select 【 Screen Setup 】 quick keyselect 【 Screen Layout 】
submenu.
 Select 【Main Menu】 quick keyfrom 【Display】 column to select
【Screen Layout】.
2. Click on the waveform area where you need to display ST segment, and select
【ECG】【ST segment】 from the list.

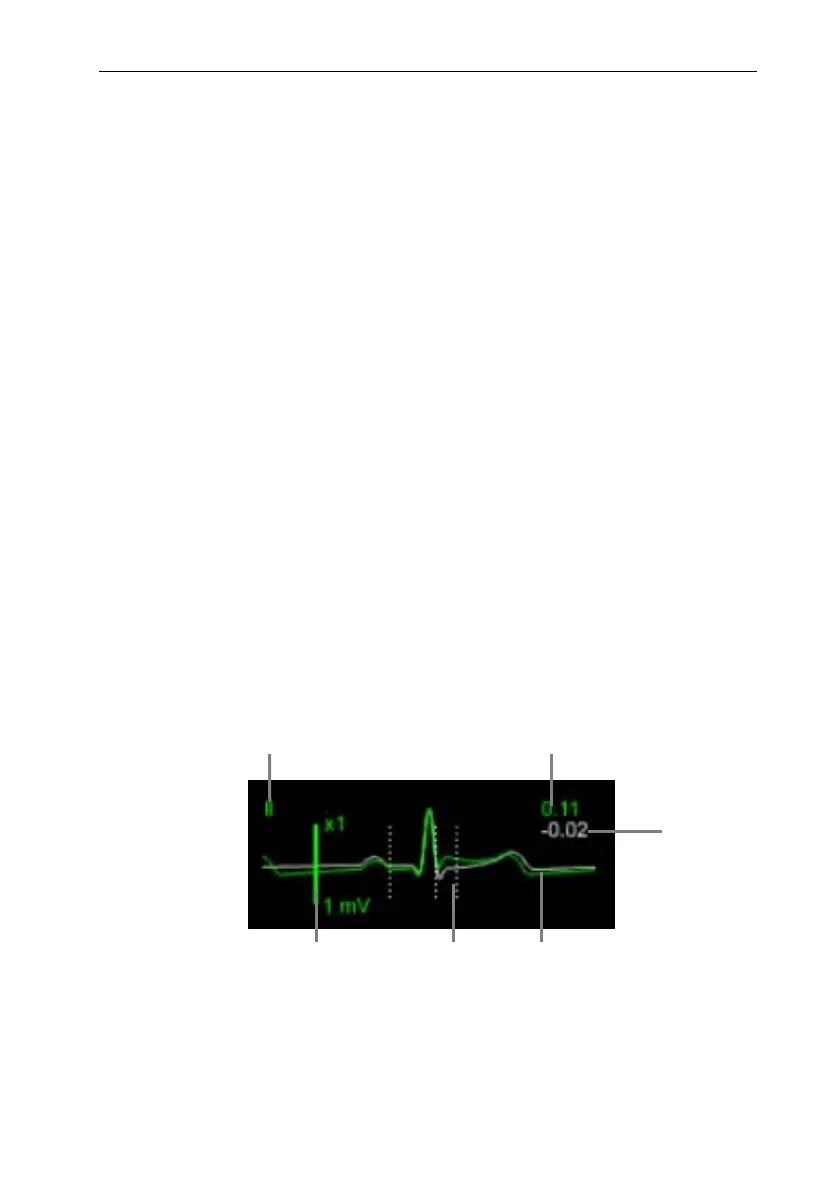

The ST waveform area displays the current ST segment waveform and baseline
waveform, the current ST value and baseline value. Generally, the current ST segment
and parameter values are displayed in green, while the baseline segment and parameter
values are displayed in white.



(1) ST lead
(2) The current ST value
(3) ST baseline value
6
5
3
1
2
4
