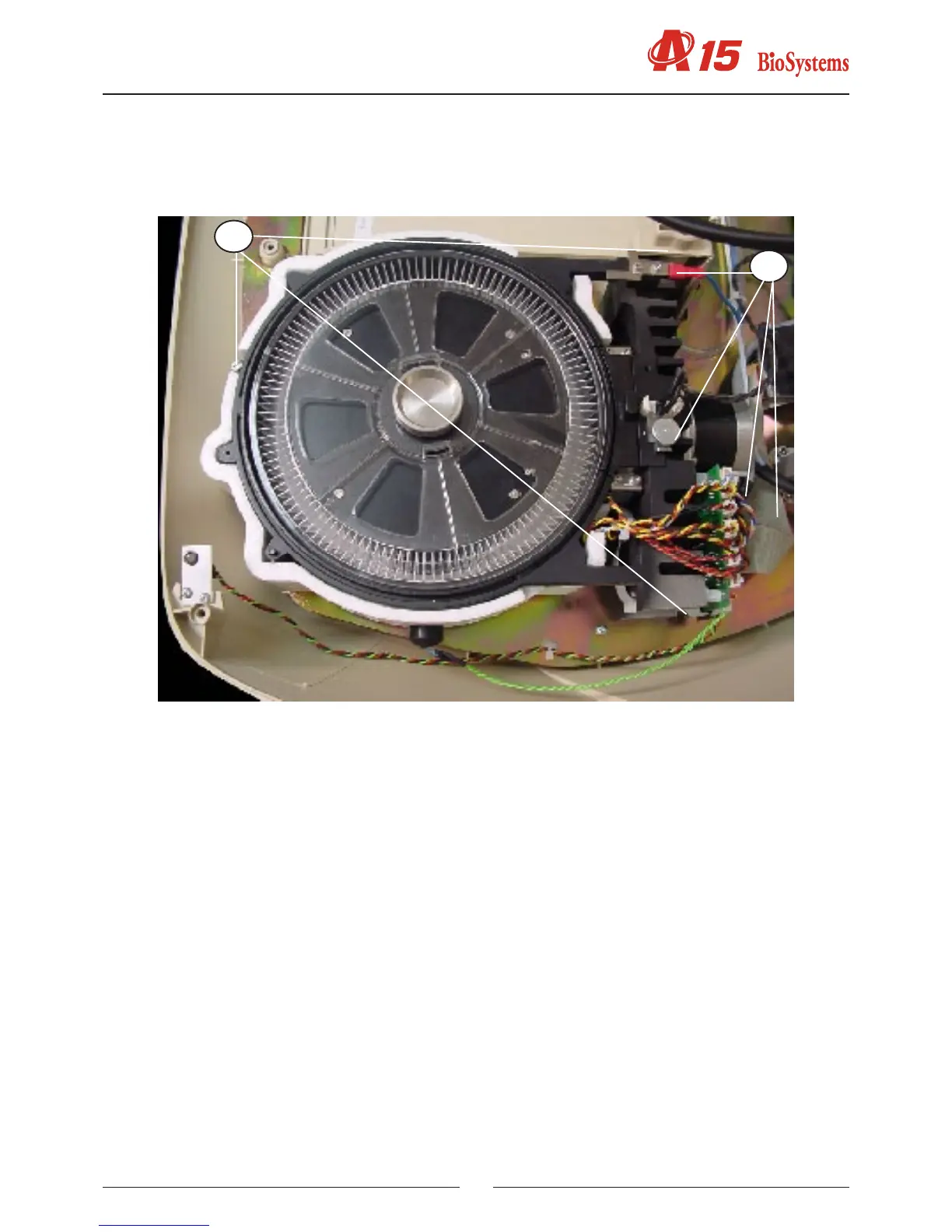

5.1.4.2. Fully removing the rotor
a) Remove the upper casing.
b) Disconnect the electrical hoses and the lampholder (1).
c) remove the rotor from the base by removing the 3 leg screws.
5.1.4.3. Changing the rotor Peltier cells
a) Remove the complete rotor.
b) Remove the bolt (1) and the insulation (2) and the temperature probe (3).
b) Remove the fan (4) and the corresponding radiator (5).
c) Unsolder the Peltier to be replaced and solder the new one in its place. Exactly reproduce the original cabling.
d) Clean the thermal silicone from the heating canal and from the radiator with alcohol. Put fresh thermal silicone on
both sides of the new Peltier. Tighten the two bolts equally and apply bolt-fastener.
e) Ret the system.
