2.2.6. Base

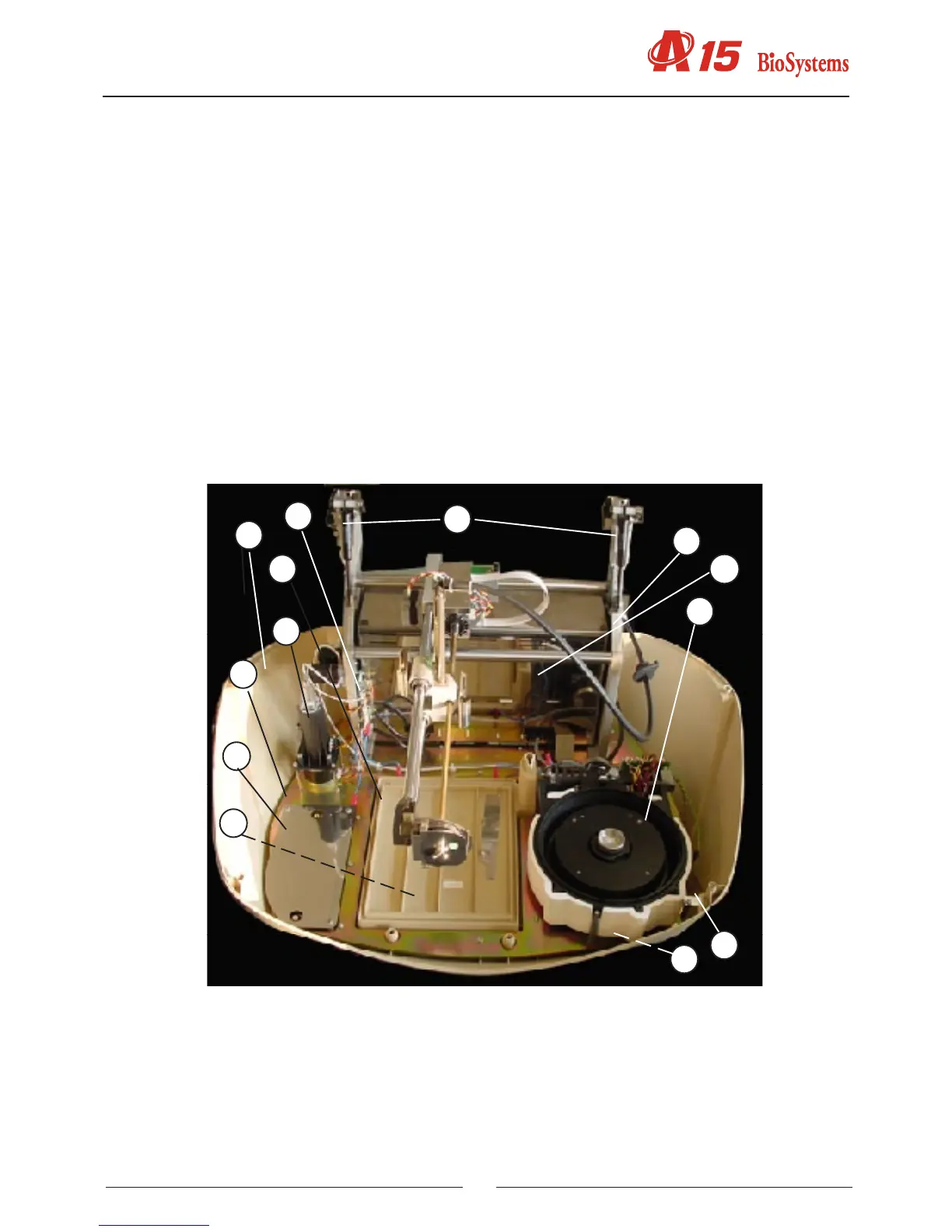

(1) LOWER PLASTIC CASING
(2) BASE
(3) WASHING STATION AND RACK TRAY
(4) ARM UNIT
(5) ELECTRONICS BOX
(6) DISPENSING PUMP
(7) REACTION ROTOR AND INTEGRATED OPTICAL SYSTEM
(8) BOTTLE LEVEL DETECTION PLATE
(9) LEVEL DETECTION PLATE
(10) PUMP AND MICROPROCESSOR INTERCONNECTION BOARD
(11) MAIN COVER HINGES
(12) FRONT INDICATOR
(13) ADJUSTABLE LEG
The base (2) on which all the elements of the analyser are xed is fastened directly to the lower plastic casing. The
rack tray and washing station form part of the base. The instrument stands on 4 rubber legs . The front right leg (13)
is adjustable in height to adapt the instrument to the work surface.
