biosystems A15 - Racks Tray with Integrated Washing Station; Washing Pumps

23

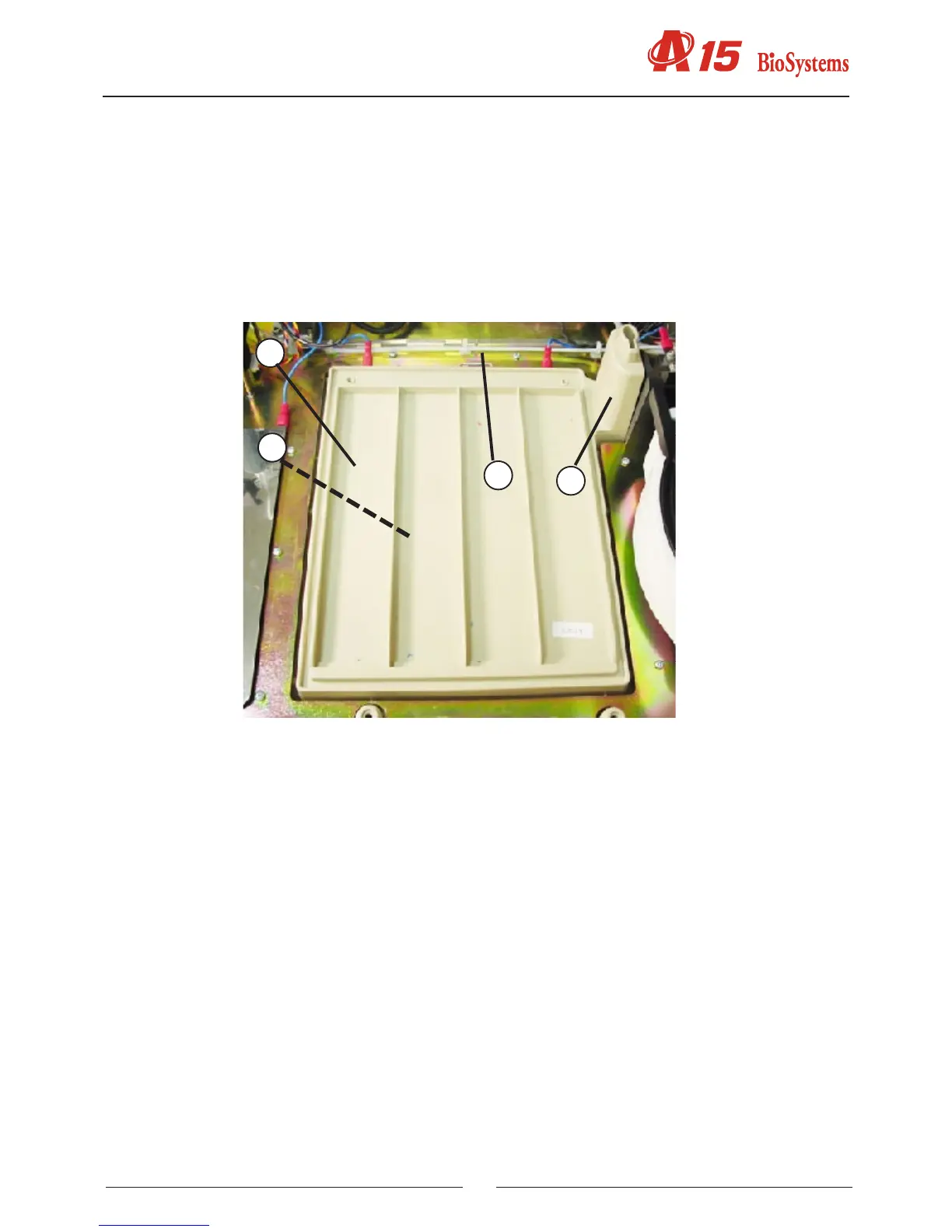

2.2.2.5. Racks tray with integrated washing station.
(1) TRAY
(2) WASHING STATION
(3) LEVEL DETECTION SHEETING
(4) WASTE PVC PIPE
The plastic injection tray (1) is part of the base of the instrument. The washing station (2) is installed on the right.
The plate (3) detects the level of the dispensing needle. The PVC tube (4) connects the washing station drain to the
waste extraction pump.
2.2.2.6. Washing pumps
(1) MEMBRANE WASTE PUMP
(2) WASHING STATION-PUMP PVC TUBE
(3) WASTE BOTTLE-PUMP PVC TUBE
(4) SAFETY FLANGES
The needle washing system has a waste extraction pump (1). This is connected to the washing station by the PVC (2).
The pump expels the waste through the pipe (4) into the waste bottle. The pipes are fastened by two safety anges.
