Service manual
30
2
3
4
5
7
4
6

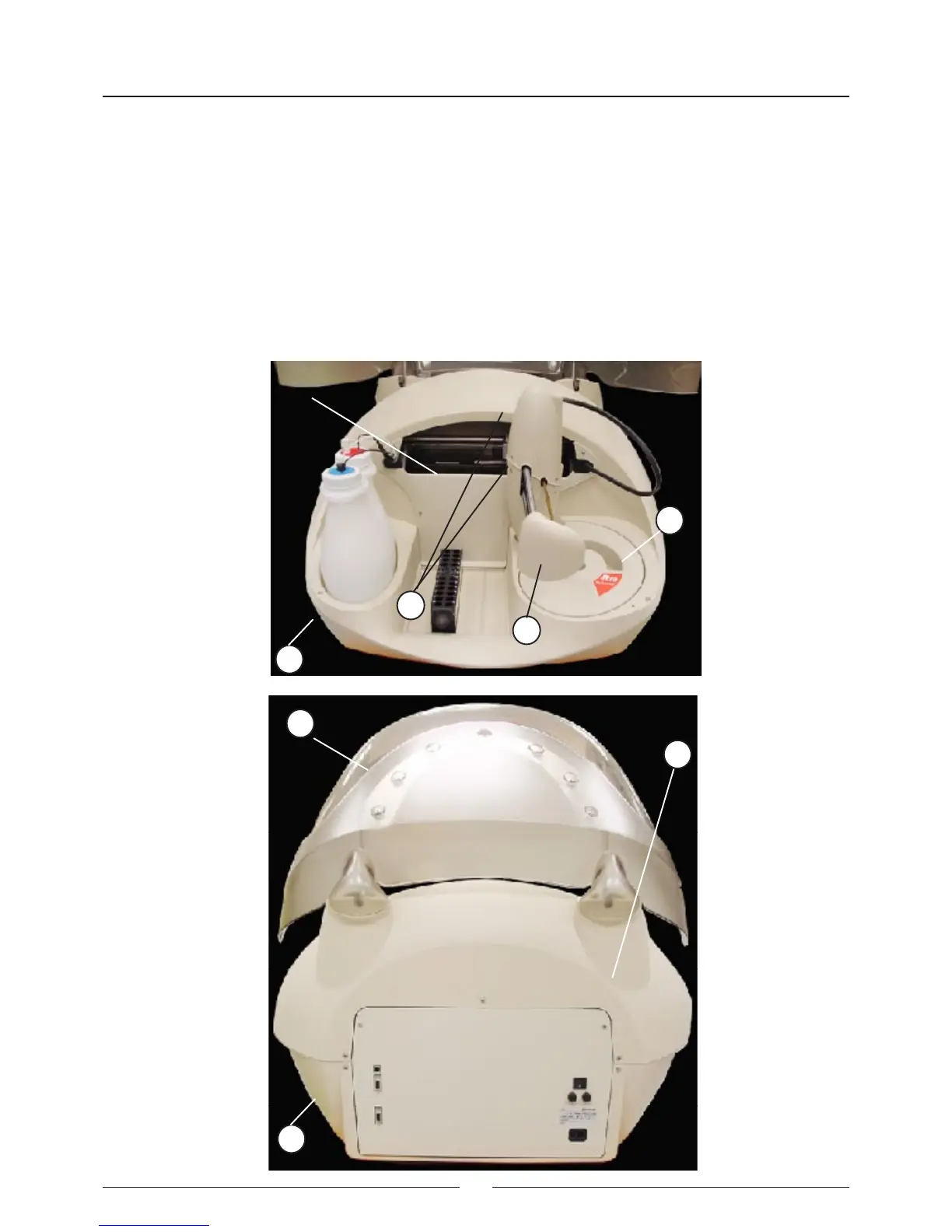

2.2.7. Casings
(1)
FRONT CASING
(2)
UPPER CASING
(3)
MAIN COVER
(4)
LOWER CASING
(5)
ARM HOUSING
(6)
ROTOR COVER
(7)
RETURN SPRING COVER
The front casing (1)
is fastened to the upper casing
(2) and the upper casing is
fastened to the lower casing
(4). The
top cover (3) is transparent and lets users see the analyser in operation with the cover closed.
