biosystems A15 - Reaction Rotor and Optical System Details

Service manual
24
2.2.3. Reaction rotor with integrated optical system.
The reactions rotor is thermostated at 37ºC. The optical system, made up of a lighting system and a photometric
system takes the readings directly on the rotor reaction wells. The lighting system has a halogen lamp, a lter drum
for the selection of the wavelength form the appropriate beam of light. The photometric system contains a silicon pho-
todiode and the corresponding electronics to obtain a digital value that is proportionate to the light intensity received.
2.2.3.1. Thermostated rotor and photometric system
(1) METHACRYLATE ROTOR
(2) HEATING CANAL
(3) THERMAL INSULATION OF THE HEATING CANAL
(4) PELTIER CELLS
(5) HEATSINKS
(6) FANS
(7) TEMPERATURE PROBE
(8) ROTOR CENTRING UNIT
(9) ROTOR FASTENING SCREW
(10) HOME ROTOR PHOTODETECTOR
(11) BEARINGS
(12) PINION
(13) ROTOR MOTOR
(14) ROTOR CROWN
(15) MOTOR SEPARATOR
(16) PHOTOMETRIC SYSTEM BOARD
(17) ELECTRONIC BOARD SUPPORT COVER
(18) OPTICS COVER
(19) PHOTODIODE GAP CENTRING UNIT
(20) ROTOR GAP
(21) COVER DETECTOR
(22) ROTOR AXLE

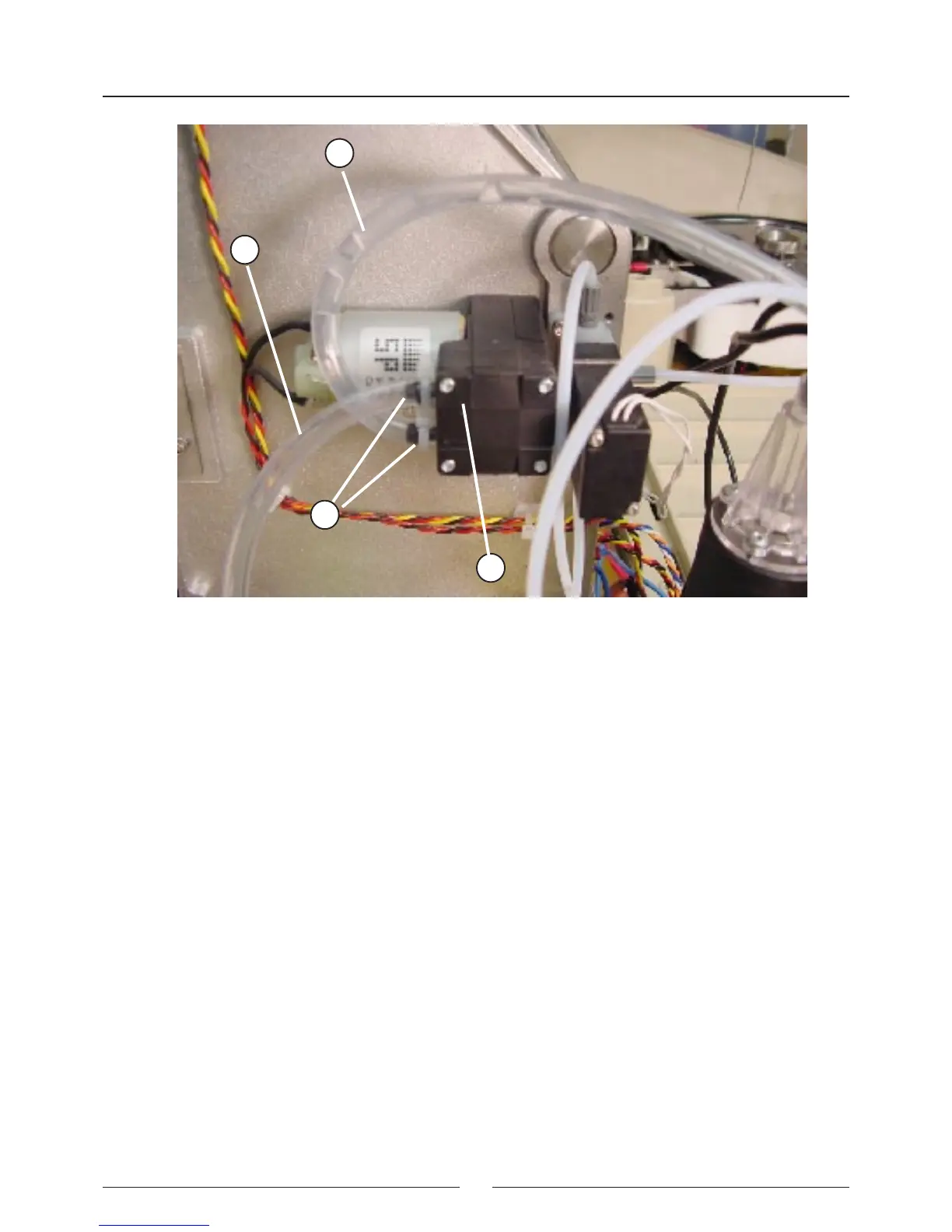

1
3
4
2
