Instruction manual GSP Machine and operating elements
38107010002 en-US 31 / 92
Screen saver
Display goes into stand-by mode when machine is not in use:
– Blade is at a standstill
– Scale not used
– Touchscreen not used
Display leaves the stand-by mode:
– Switch-on of blade
– Use of the scale
– Touching the touchscreen
5.2 Membrane keyboard GSPHD

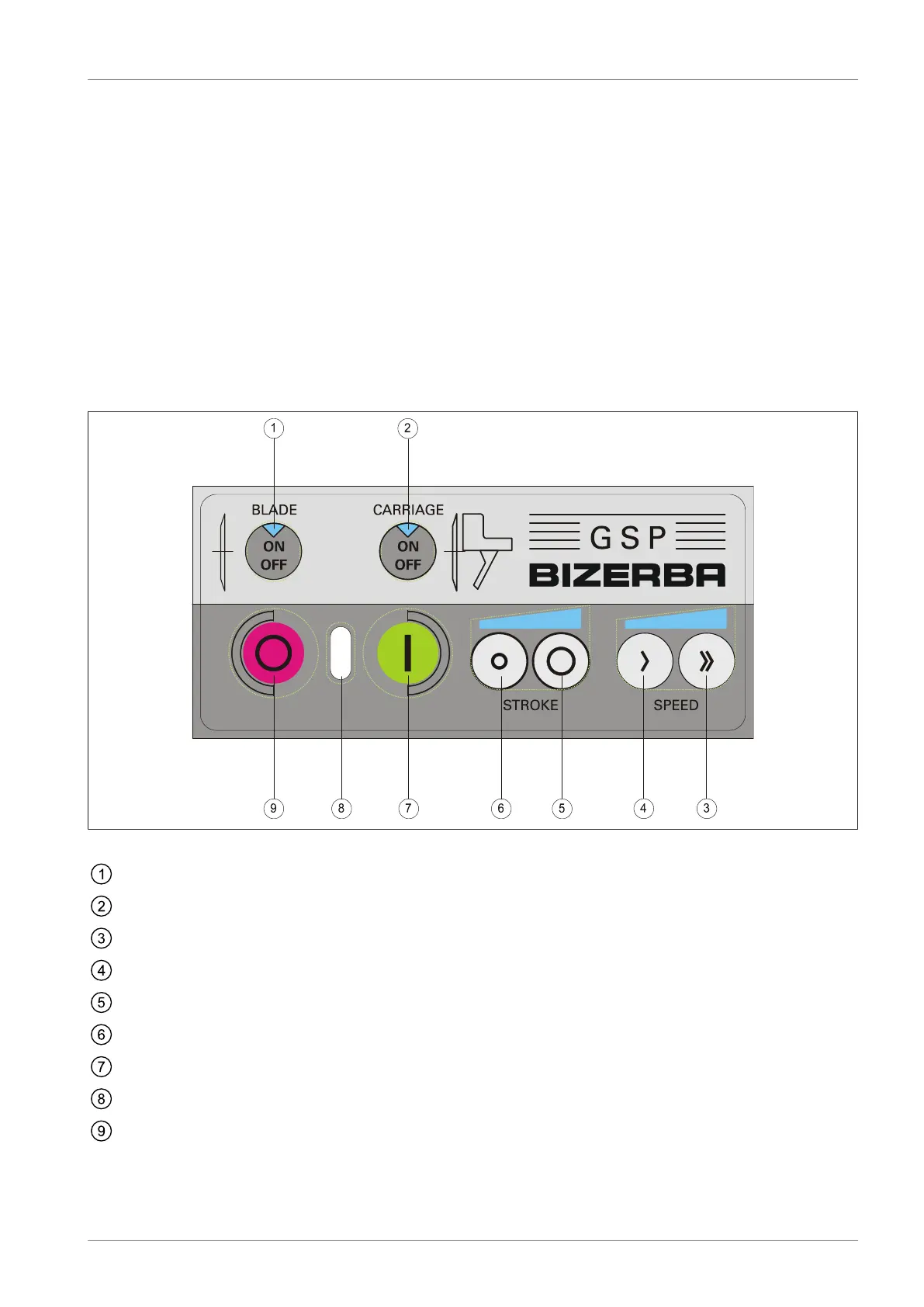

Fig.18: Membrane keyboard GSP HD
Blade drive on (red LED) / off
Carriage motor on (red LED) / off
Set max. number of carriage strokes
Gradually reduce number of carriage strokes
Set max. stroke width
Gradually reduce carriage width
<I> (green) voltage is applied
Signal lamp (white) lights up when mains voltage is applied
<O> (red) The machine will be switched off (reduced operating force)
