Maintenance Instruction manual GSP
66 / 92 38107010002 en-US

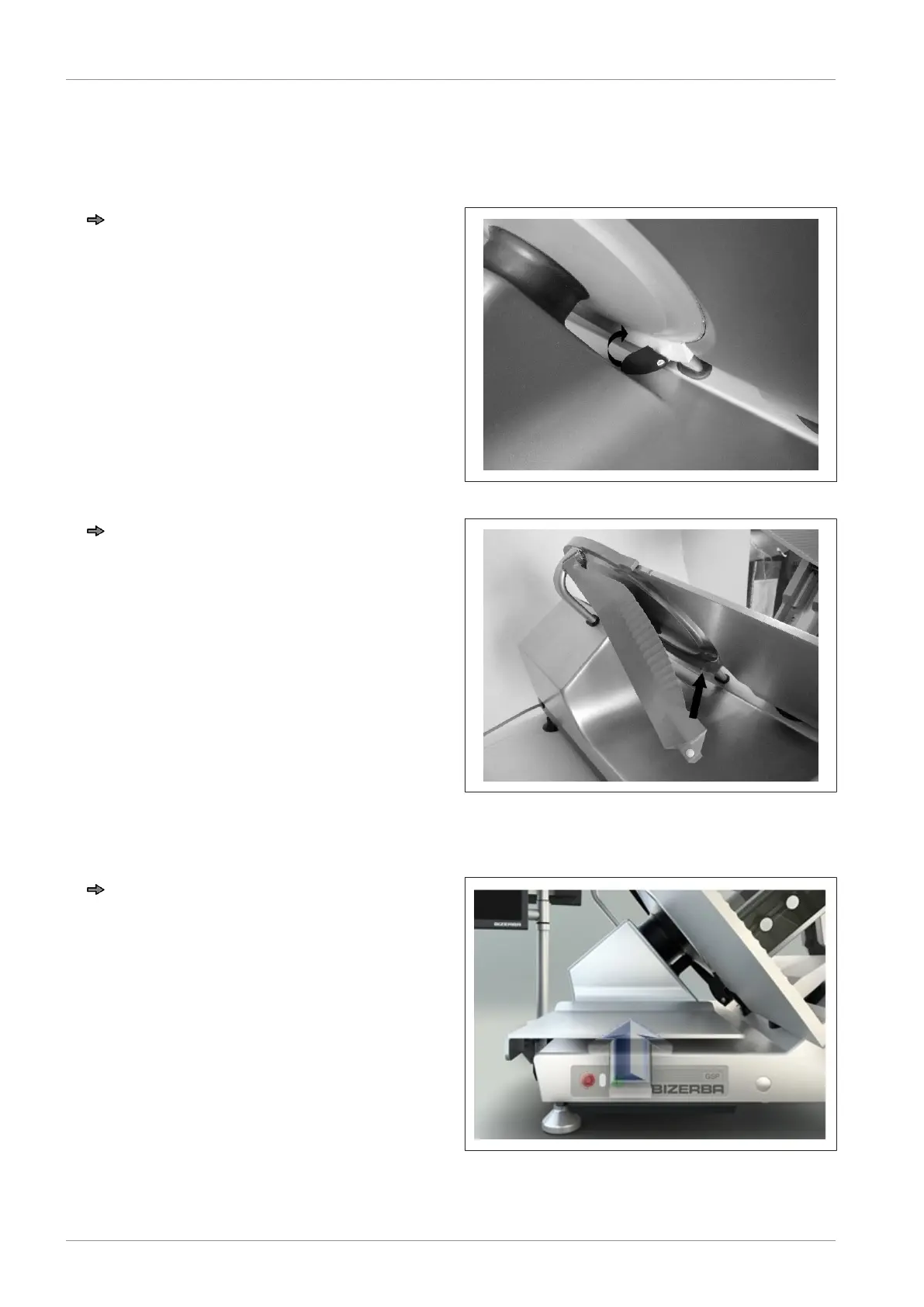

8.5 Preparing the machine for operation
Attach the components as follows:
Deflector
Swivel deflector upwards towards the
blade ensuring exact positioning with re-
spect to the blade.
Fig.91: Deflector GSP H
Swivel deflector downward to magnetic
lock while observing exact positioning in
recess of blade guard ring.
Fig.92: Deflector GSP HD
Load platter GSP H W, GSP HD W, GSP H Flex
Fasten load platter in holes of lateral
support by means of the guide bolts and
move it towards the back as far as it will
go.
Fig.93: Load platter
