BK Precision 894 User Manual

105
30
/INDEX
SEQ: When the analog test of the last sweep point is finished and the
UNKNOWN terminal can be connected to another DUT, /INDEX is
asserted. However, the comparison signal is asserted until /EOM is also
asserted.
STEP: When the analog test at each sweep point is finished, /INDEX is
asserted, but the comparison signal is asserted until the line /EOM is also
asserted.
31
/EOM
The End of Measurement signal has different functions on SEQ and STEP
modes:
SEQ: When the test is finished and the compared results are available,
/EOM is asserted.
STEP: When the test of every sweep point is completed, /EOM is
asserted. The comparison result signal is effective until /EOM is asserted.
Rest
of
pins
The pin assignment of the rest of the pins is the same as the pin
assignment of the Comparison Function.

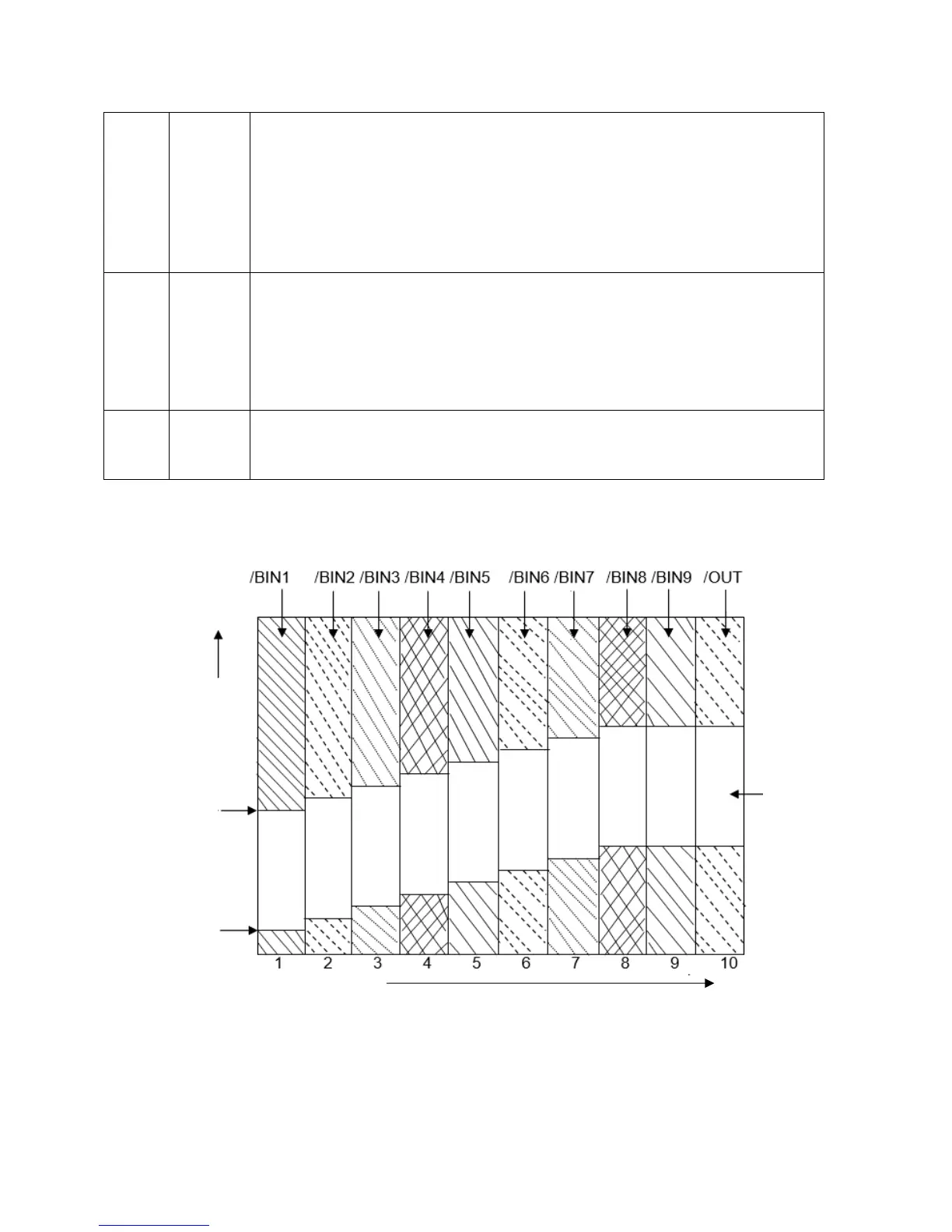

Table 22 - List Sweep Comparison Pinout
High Limit
Low Limit
Sweep area
Valid
Area
Measurement
Data
Figure 35 - List Sweep Comparison Signal Areas
