106

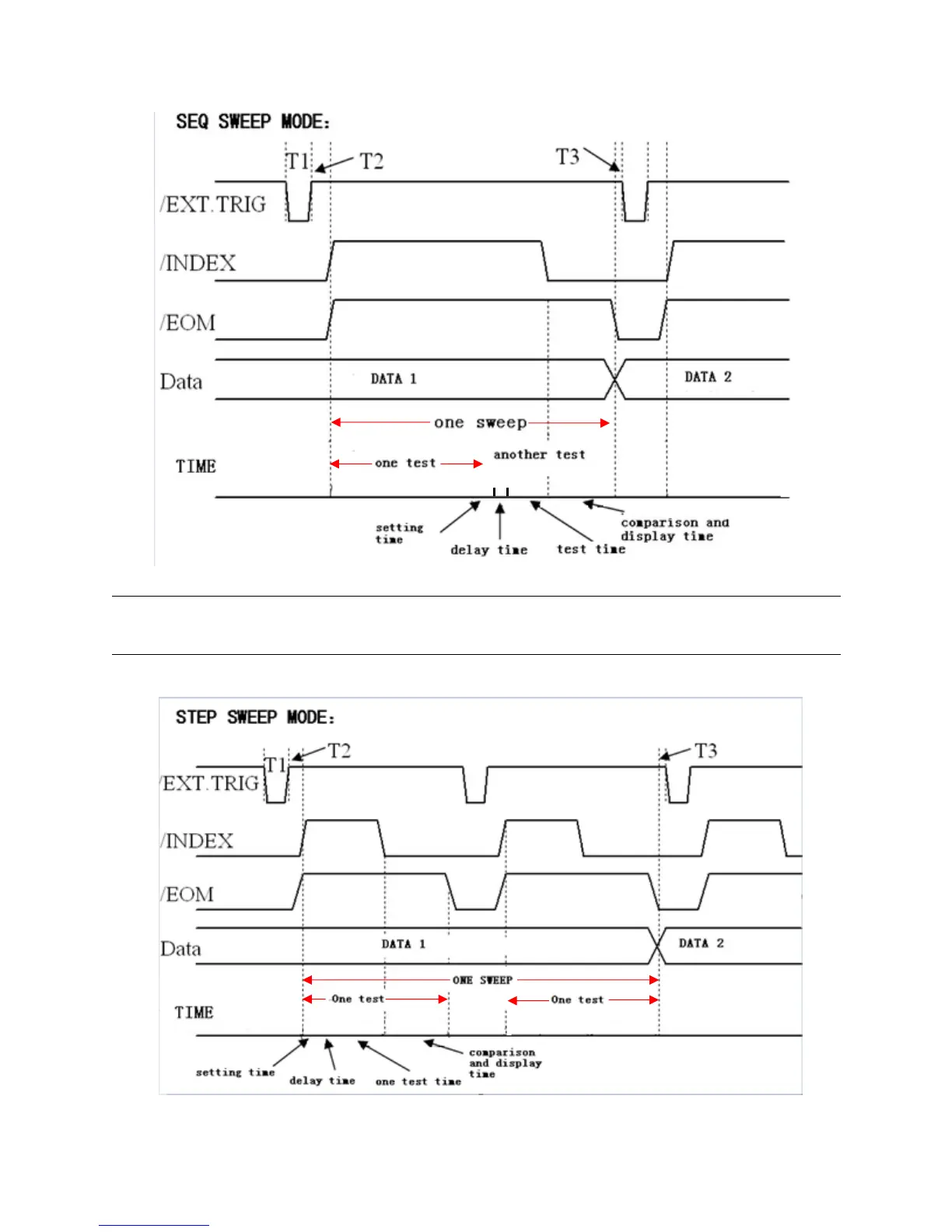

Figure 36 - List Sweep Timing Diagram
*Notes: 1. Setting time, delay time, test time and comparison and display time are not to scale.
2. The setting time includes the correction ON/OFF time.
3. The comparison and display time is 4.5ms approximately.
