1 Gently place your URSA Mini upside down on a flat, stable surface so you can easily
access the base of your camera.
2 Fasten the shoulder mount baseplate to URSA Mini using the 2 x ¼” flat head screws
and driver.
3 Tighten the screws until the baseplate is firmly attached and the screws won’t loosen.
Avoid over-tightening as it may damage the screw threads.

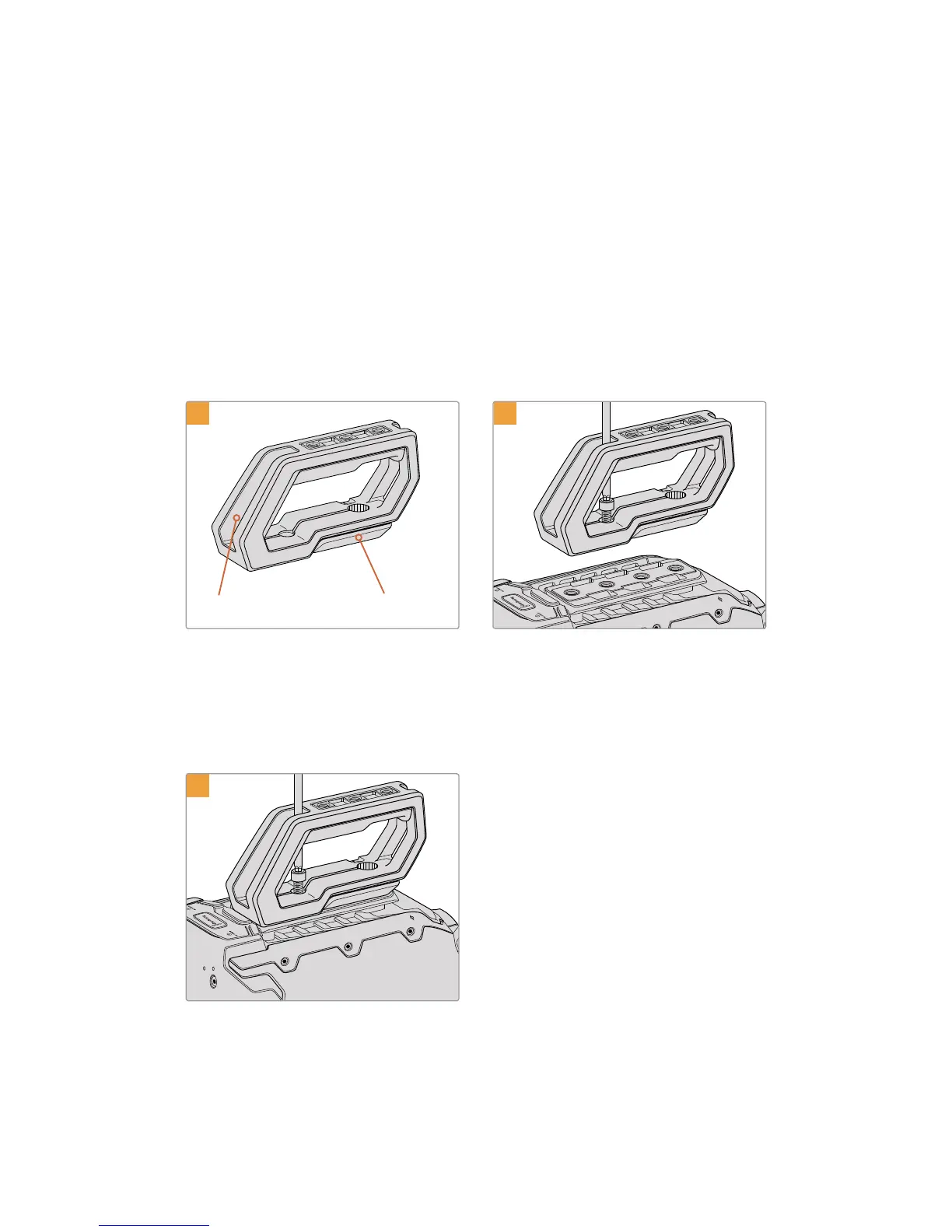

To attach the top handle without URSA Viewfinder
You can use URSA Mini Shoulder Mount Kit with or without the optional URSA Viewfinder.
The top handle is supplied with a rubber viewfinder cap on its base which is replaced with
anadapter plate when attached to the URSA Viewfinder. We recommend leaving the cap
attachedwhen using the handle without the URSA Viewfinder.
1
Top handle URSA Viewfinder cap
2
Place your URSA Mini on a flat, stable surface so
you can access the top of your camera.
Fasten the handle to any two of your
URSAMini’s top 1/4” mounting points using the
two supplied 1/4” screws with a 3/16” Hex key
driver. URSAMini’s rear two mounting points
are recommended for most situations, but you
can choose any pair for better weight balance
when using large lenses.
3
Tighten the screws until the handle is firmly
inplace and the screws won’t easily loosen.
Avoidover-tightening the screws as it may
damage the screw threads.
137URSA Mini Shoulder Mount Kit
