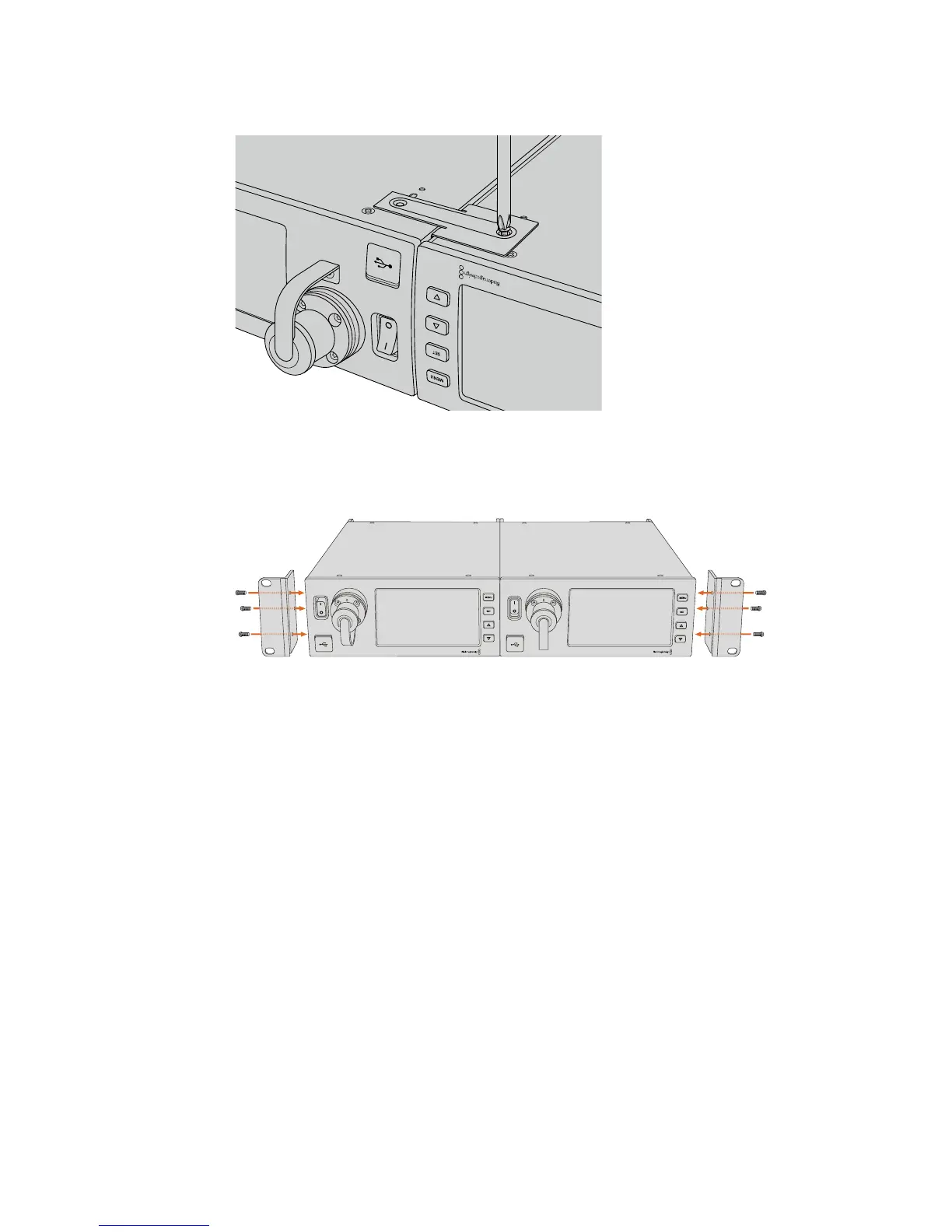

3 Turn the attached units back over and attach the rack ears to the outer edges near the

front of both converters, using the supplied rack ear screws. Your converters are now

ready to be installed into a rack using the mounting holes on both sides and standard

rack screws.
