Nikon AF-D lenses

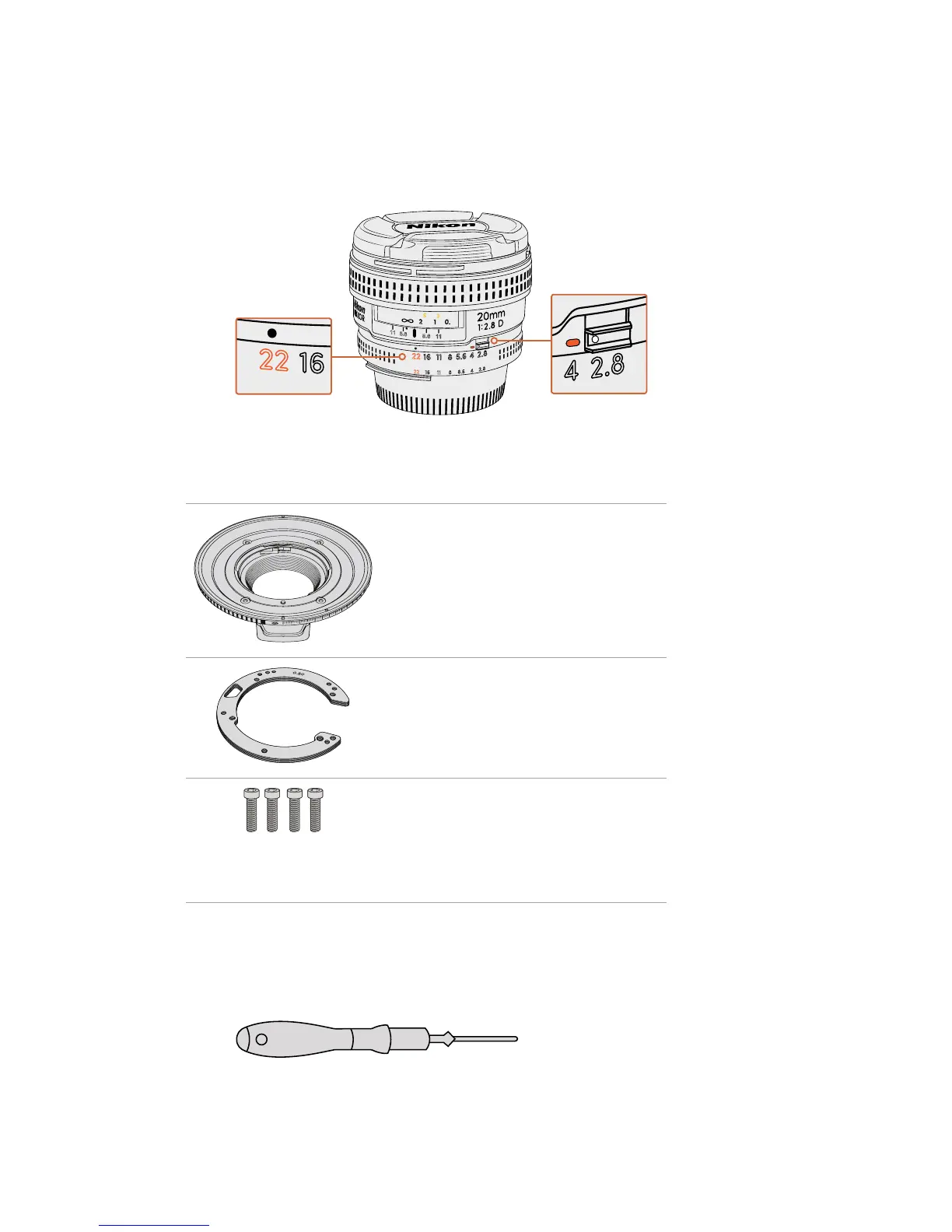

When using Nikon AF-D series lenses, it is necessary to lock your lens aperture to its
smallestsetting, such as f/22, to use the full range of Blackmagic URSA Mini Pro Fmount's
irisadjustment ring.
Setting and locking AF-D lenses to their smallest aperture
is easiest before mounting to your camera.
The F mount kit includes:
1 x F mount
The F mount lets you attach common Fstills lenses.
1 x Shim set
The shim set includes the following thicknesses:
0.50mm
0.30mm
0.20mm
0.18mm
0.15mm
0.12mm
0.10mm
0.05mm
0.025mm
4 x 2mm Hex M3 x 18mm mount screws
The four M3 x 18mm Hex screws are used in the
EFand F mount so it is best to keep the screws
together with the respective mount.
The F mount kit also comes with a full spare sets
ofscrews in case the originals are misplaced.
Tools Required
When attaching the F mount, you will need a 2mm Hex driver. While it’s not absolutely required,
we recommend using a torque wrench able to accurately set a maximum torque of 0.45Nm to
reduce the potential of over tightening the screws.
2mm Hex driver
