Attaching the F Mount
1
0
.50
2
0
.10

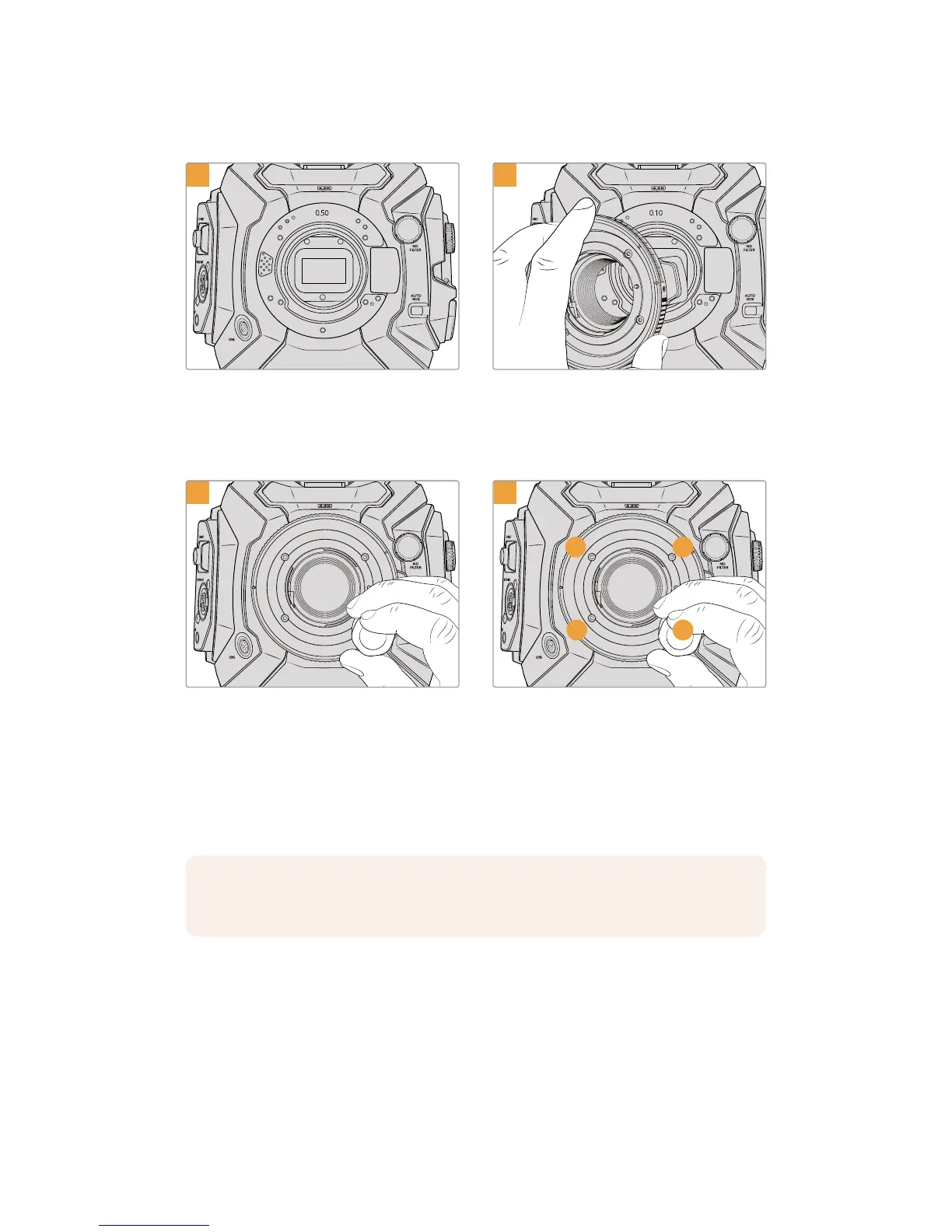

Place Blackmagic URSA Mini Pro 4.6K vertically
on a solid, clean bench top to ensure the mount
can be attached vertically. If changing from the PL
to the F mount, ensure that you have removed the
PL baffle before inserting the F mount.
Add the 0.10mm shim to your camera,
thencarefully place the Blackmagic
URSAMiniPro 4.6K F mount onto the camera
bodyensuring the white dot is
atthe2o’clock position.
3 4
1 3
4 2
Loosely turn the four mounting screws until initial
contact is made with the shoulder of the
lens mount.
Using the 2mm Hex driver, or torque wrench
with 2mm Hex key, apply one full turn of
pressure to mounting screw 1, followed by one
full turn to screw 2, and repeat for screw 3 and
then 4. Continue to apply one full turn to each
screw in the sequence above until all screws
have reached the maximum torque of 0.45Nm.
NOTE When removing the F mount, simply follow the instructions in reverse order from
step 4 to step 1.
