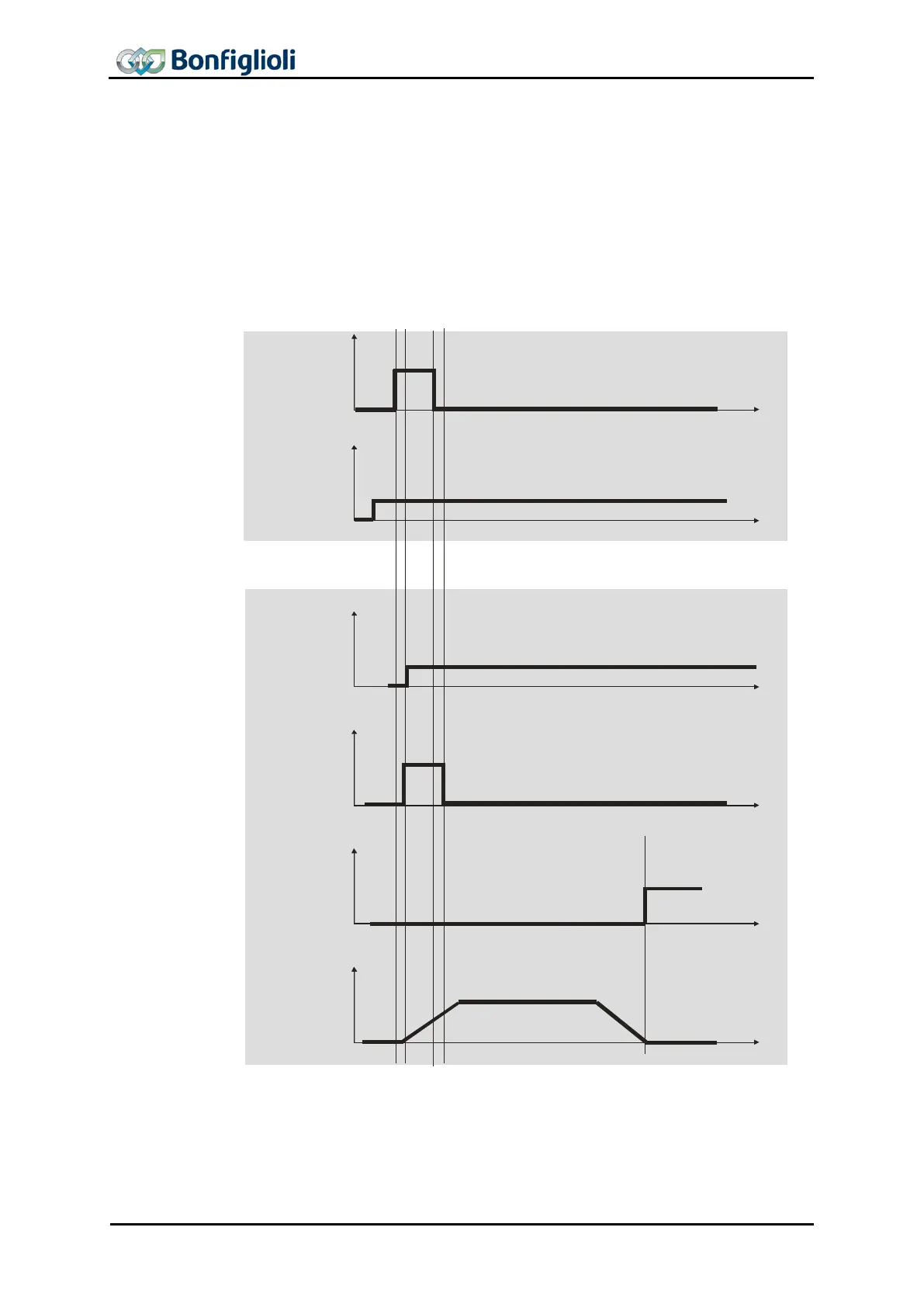

Example: single set-point
control bit
change on set-point
= 0
control bit
change set immediately
= 0
Once a reference value has been transmitted to the drive, the controller signals a
permissible value in the control word
by a rising signal edge for the bit “New reference
value”.
The drive responds by setting the bit “Reference value confirmed” and starts
moving to the new target position. After that, the controller resets the bit “New refe
ence value”, and the drive reset
s the bit “Reference value confirmed”. Once the bit
“Reference value confirmed” has been reset, the drive is ready for receiving a new
target position.
t
t
t
t
t
t
actual
speed
new set point
(control bit 4)
target position
(set point)
current target
position
processed
set point
acknowledge
(status bit 12)
target reached
status bit 10
PLC
Drive
90 CM-PROFINET 10/13
