BONFIGLIOLI Active Cube User Manual

18 EM-ABS-01 for ACU 03/12

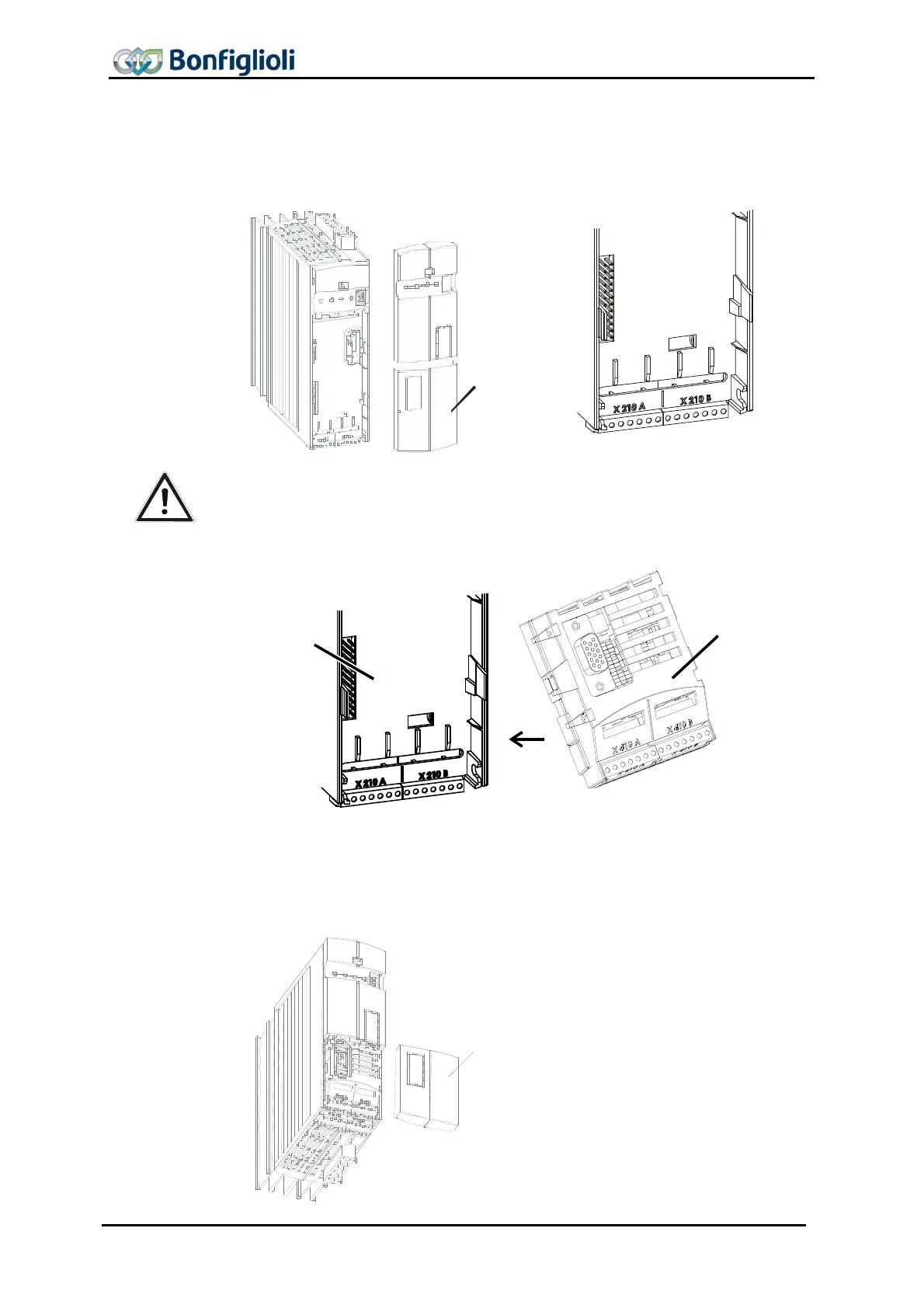

The EM-ABS-01 extension module is supplied in a housing for assembly on the lower
slot of the frequency inverter.
• Remove the lower cover (1) of the frequency inverter.
The slot for the EM-ABS-01 extension module becomes accessible.
1
Caution! The EM-ABS-01 (2) extension module is pre-fitted in a housin
g
. The PCB
visible on the back may not be touched, as modules can be dama
g
ed by
this.
• Plug the EM-ABS-01 (2) extension module onto the slot (3).
• Re-install the lower cover (1).
Assembly is complete.
When the supply voltage of the frequency inverter is switched on, the EM-ABS-01
ex-tension module is ready for operation.
1
2
3
