03/12 EM-ABS-01 for ACU 45
7.2 Cables
For the bus line, use twisted a cable with harness shield (no foil shield).
Atten-
tion:
Control and communication cables must be kept physically separate from
the power cables. The braided shield of the communication cable is to be
connected to ground (PE) on both sides on a large area and with good
conductivity.

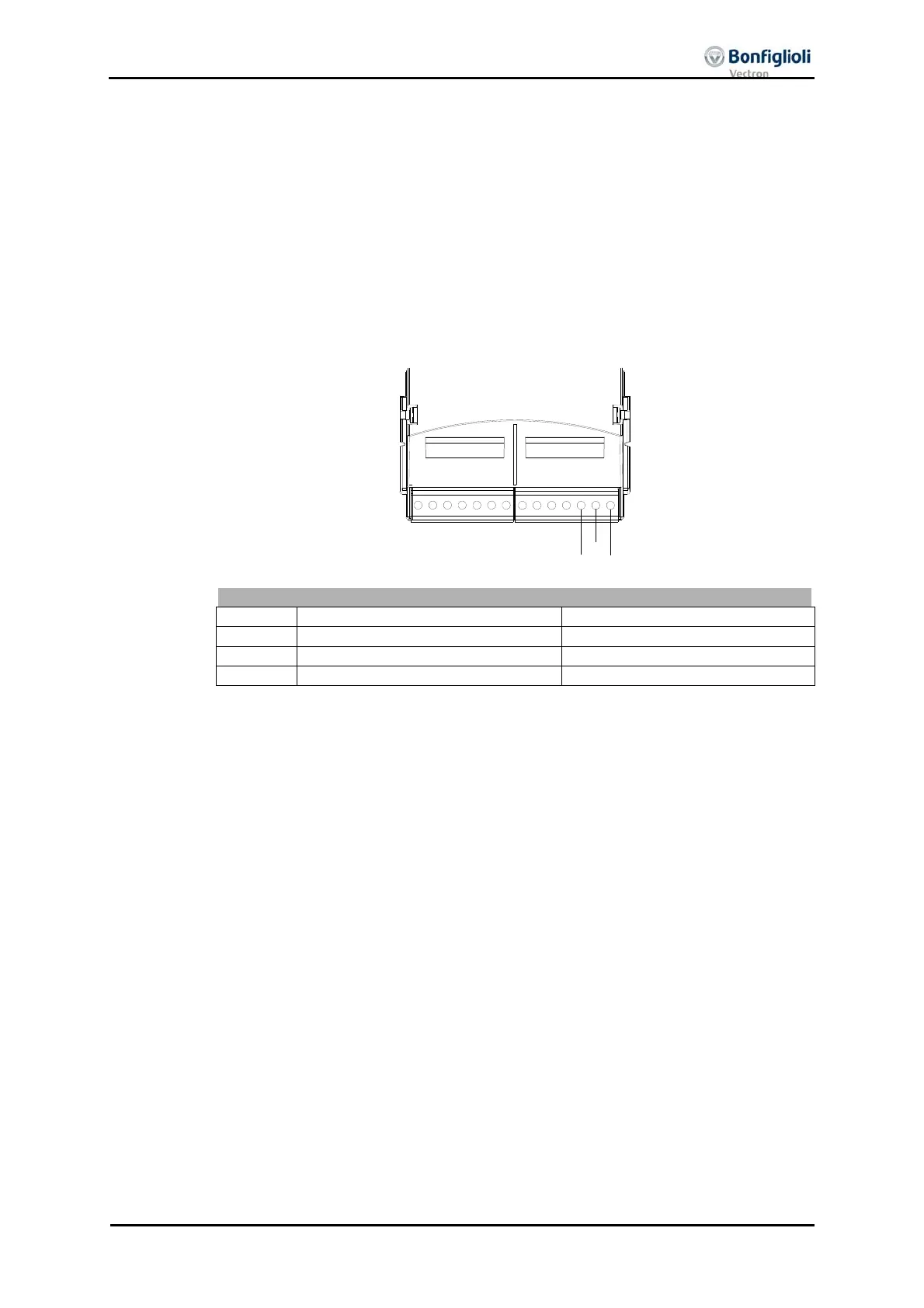

7.3 Control terminal X410B
The system bus is connected via three sockets of the plug X410B on the EM-ABS-01
extension module.
Control terminal X410B
Terminal Input/output Description
X410B.5 CAN-Low CAN-Low (System bus)
X410B.6 CAN-High CAN-High (System bus)
X410B.7 GND CAN-GND (System bus)
X410A
X410B
6
7
