03/12 EM-ABS-01 for ACU 23

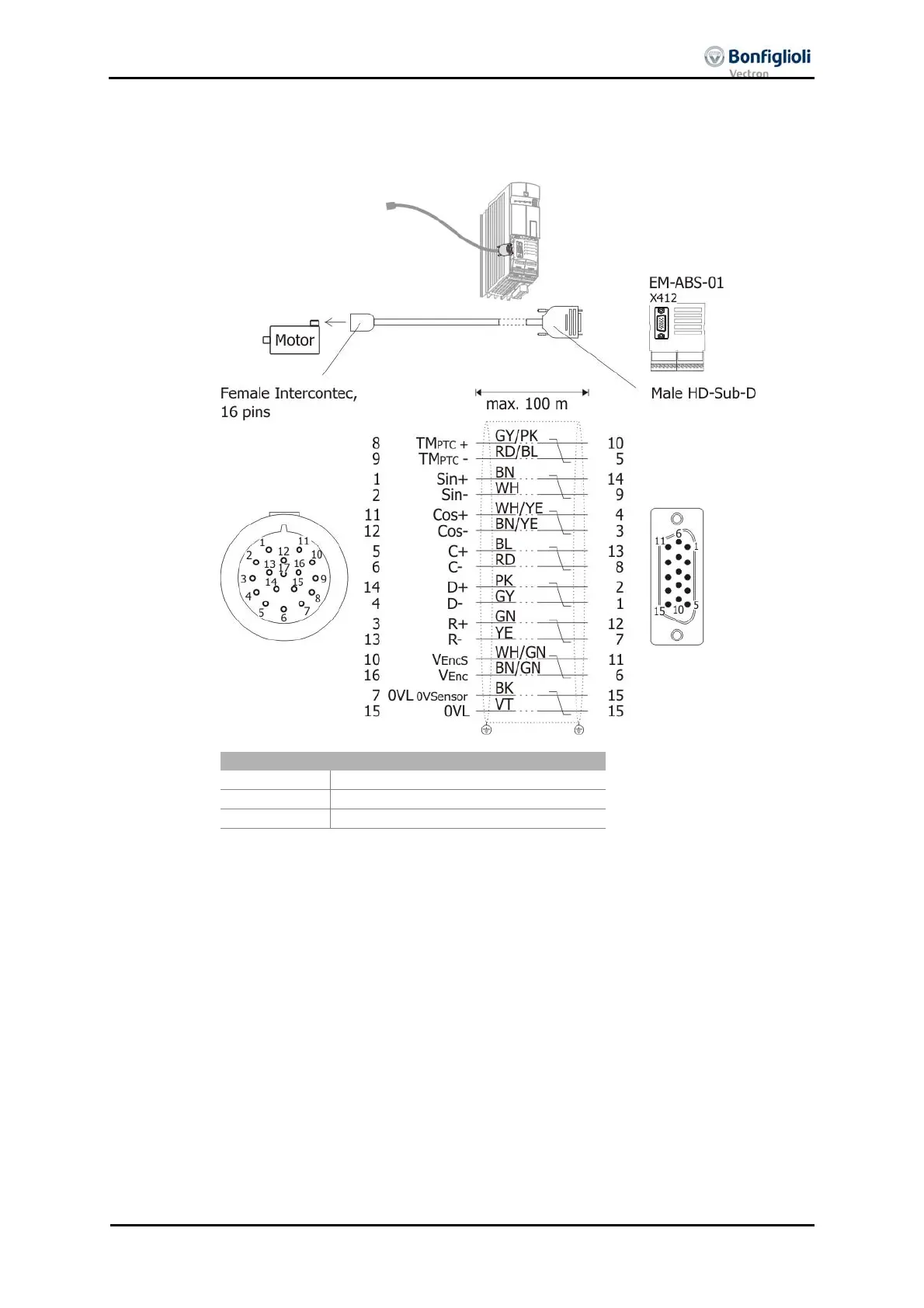

5.3.2.1 Cable assembly SinCos
Contact assignment BONFIGLIOLI VECTRON assembled cable for connec-
tion of SinCos encoders
BONFIGLIOLI VECTRON assembled cable
Encoder cable 8 twisted two-wire lines
Cable size 0.14 mm
2
Length 3 m, 5 m or 10 m
Note: The assembled cables for EnDat 2.1 and SinCos encoders are identical. For
better readability of the individual connections, the specific designations for SinCos
and EnDat 2.1 are used.
Use PTC resistors with safe isolation from motor windin
g
accordin
g
to EN 61800-
5-1.
Use shielded and twisted cables.
Install encoder cable separate from motor cable.
Connect the shield of the encoder line properly on both sides.
BONFIGLIOLI VECTRON recommends using the pre-assembled cables for syn-
chronous motors types BCR and BTD.
