03/12 EM-ABS-01 for ACU 95
8.4.2 Tracks/Protocol
ia parameter Tracks/Protocol 1184, you can specify the type-specific number o
analog Tracks/Protocol of the encoder and evaluation of a reference track.

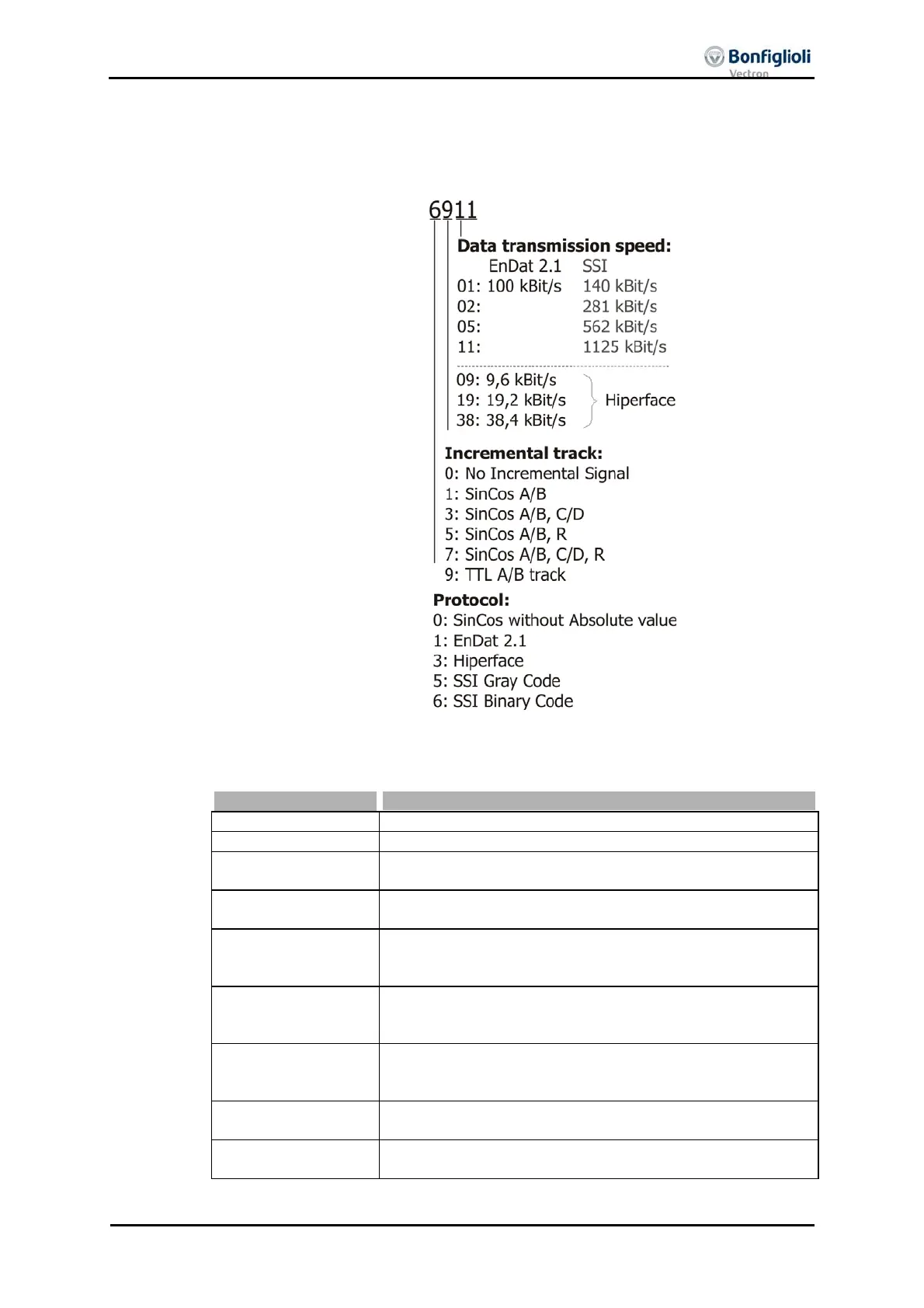

Key of Tracks/Protocol:
Note:
he identifiers of track A/B and Sin/Cos are typically ambivalent and can
be set to A = Sin and B = Cos.
Tracks/Protocol 1184
Function
0 - off Evaluation is turned off. Factory setting.
SinCos 100 - A/B Evaluation of analog Tracks/Protocol A and B.
300 - A/B, C/D
Evaluation of analog Tracks/Protocol A and B and commuta-
tion Tracks/Protocol C and D.
500 - A/B, R
Evaluation of analog Tracks/Protocol A and B as well as refer-
ence track R. Monitoring and comparison of Tracks/Protocol.
700 - A/B, C/D, R
Evaluation of analog Tracks/Protocol A and B and commuta-
tion Tracks/Protocol C/E as well as reference track R. Monitor-
ing and comparison of Tracks/Protocol.
EnDat 2.1
1101 EnDat 2.1
Evaluation of analog Tracks/Protocol A/B and the data and
clock track with the EnDat 2.1 protocol. Monitoring and com-
parison of Tracks/Protocol.
Hiperface
3109
Hiperface,
9.6 kBit/s
Evaluation of analog Tracks/Protocol A/B and the data tracks
with the Hiperface protocol. Monitoring and comparison of
Tracks/Protocol. The data track is transmitted at 9.6 kBaud.
3119
Hiperface,
19.2 kBit/s
Like 3109. The data track is transmitted at 19.2 kBaud.
3138
Hiperface,
38.4 kBit/s
Like 3109. The data track is transmitted at 38.4 kBaud.
