03/12 EM-ABS-01 for ACU 101
8.4.4 Supply voltage
ia parameter Supply voltage 1187, you can select the volta
e level for encode
power supply.

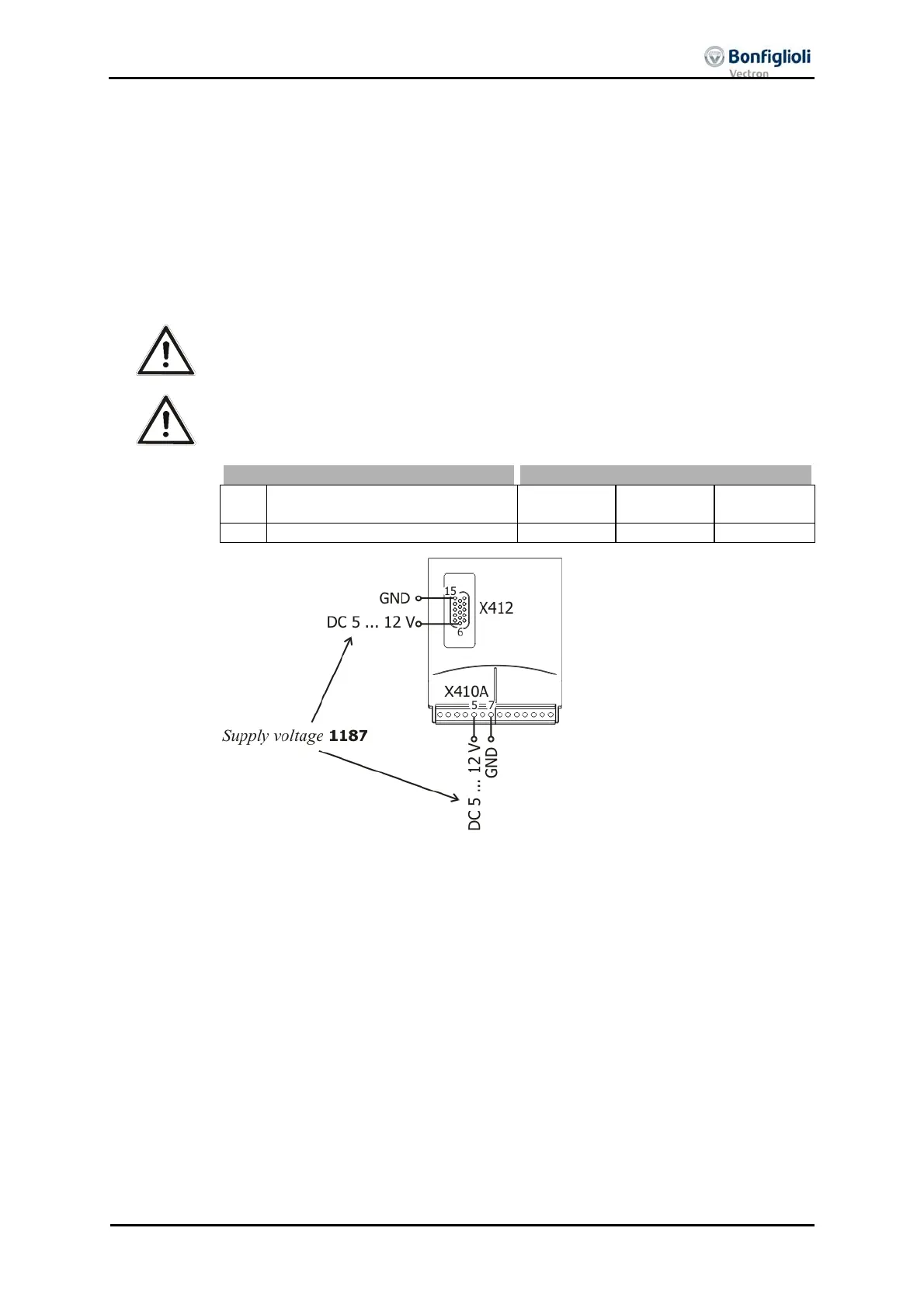

The SinCos encoder can be powered as follows:
− via control terminals X410A.5 (5 … 12 VDC) and X410A.7 (GND) or
− via contacts X412.6 (V
Enc
) and X412.15 (0VL) of the female HD-Sub-D connector.
The parameter setting is effective on the terminals and the contact of the female HD-
Sub-D connector.
Caution! Note the encoder manufacturer's supply voltage specifications. Non-
compliance may damage the encoder.
Caution!
Always set the Supply voltage 1187 first and then set Power
supply
1186. Otherwise, the encoder might be destroyed by high voltage
levels.
Parameters Settings
No. Description Min. Max. Factory set-
ting
1187 Supply voltage 5.0 V 12.0 V 5.0 V
