Note:
BONFIGLIOLI VECTRON recommends connecting an external power supply to the voltage
input of the control terminal. This auxiliary voltage enables powering an encoder via the
voltage output of the control terminal. Refer to the encoder manufacturer's power specifi-
cations.

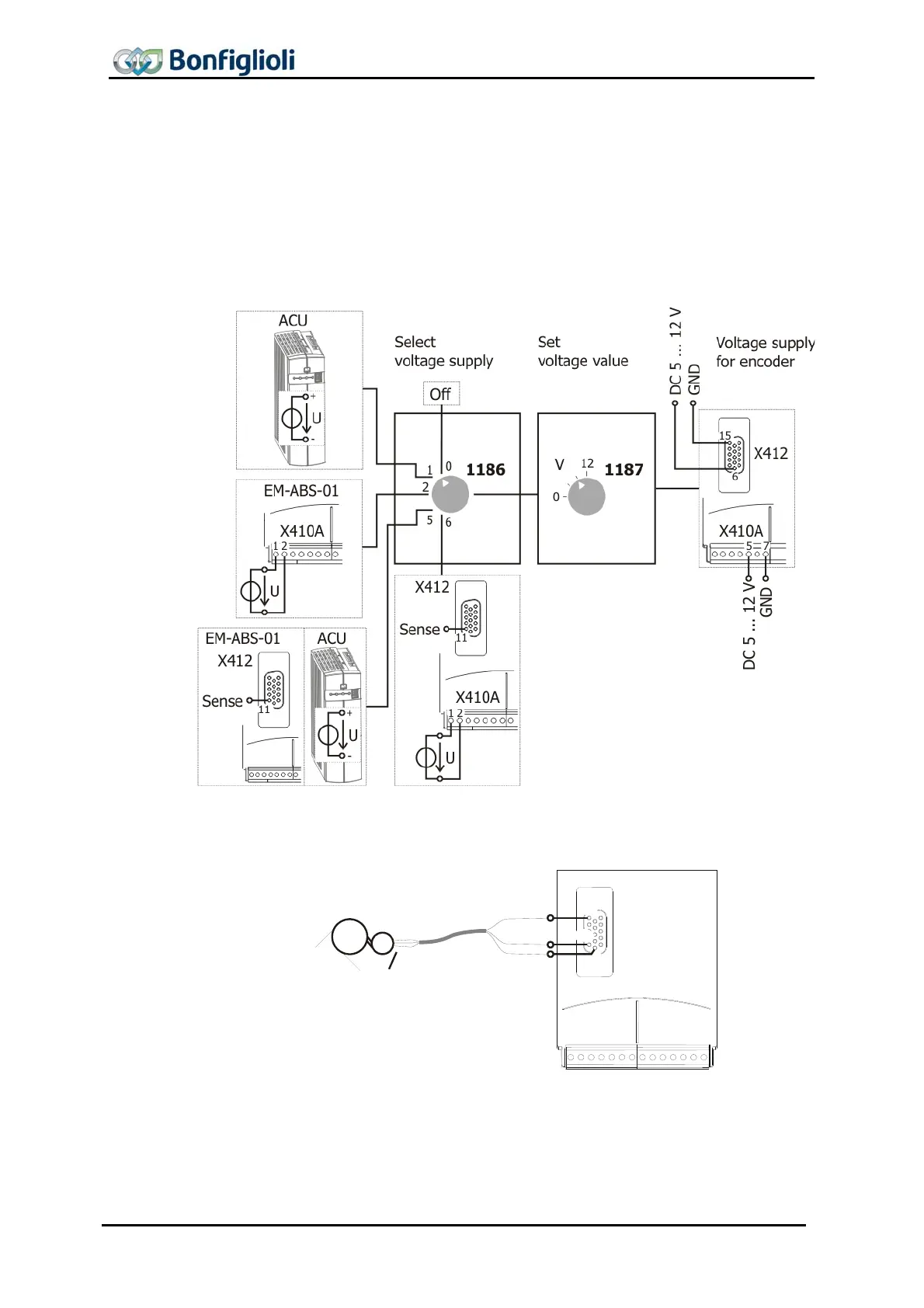

Choosing the source for encoder power supply and setting the voltage level
Measuring line “sense”: constant voltage level at encoder
G: encoder
The encoder supply voltage is measured at the SinCos encoder and kept constant a
t
the adjusted value of Supply voltage 1187 (DC 5 … 12 V).
Sense
11
M
G
6
15
5 ... 12 VDC
0VL
Measured voltage
