BONFIGLIOLI Active Cube User Manual

03/12 EM-ABS-01 for ACU 25

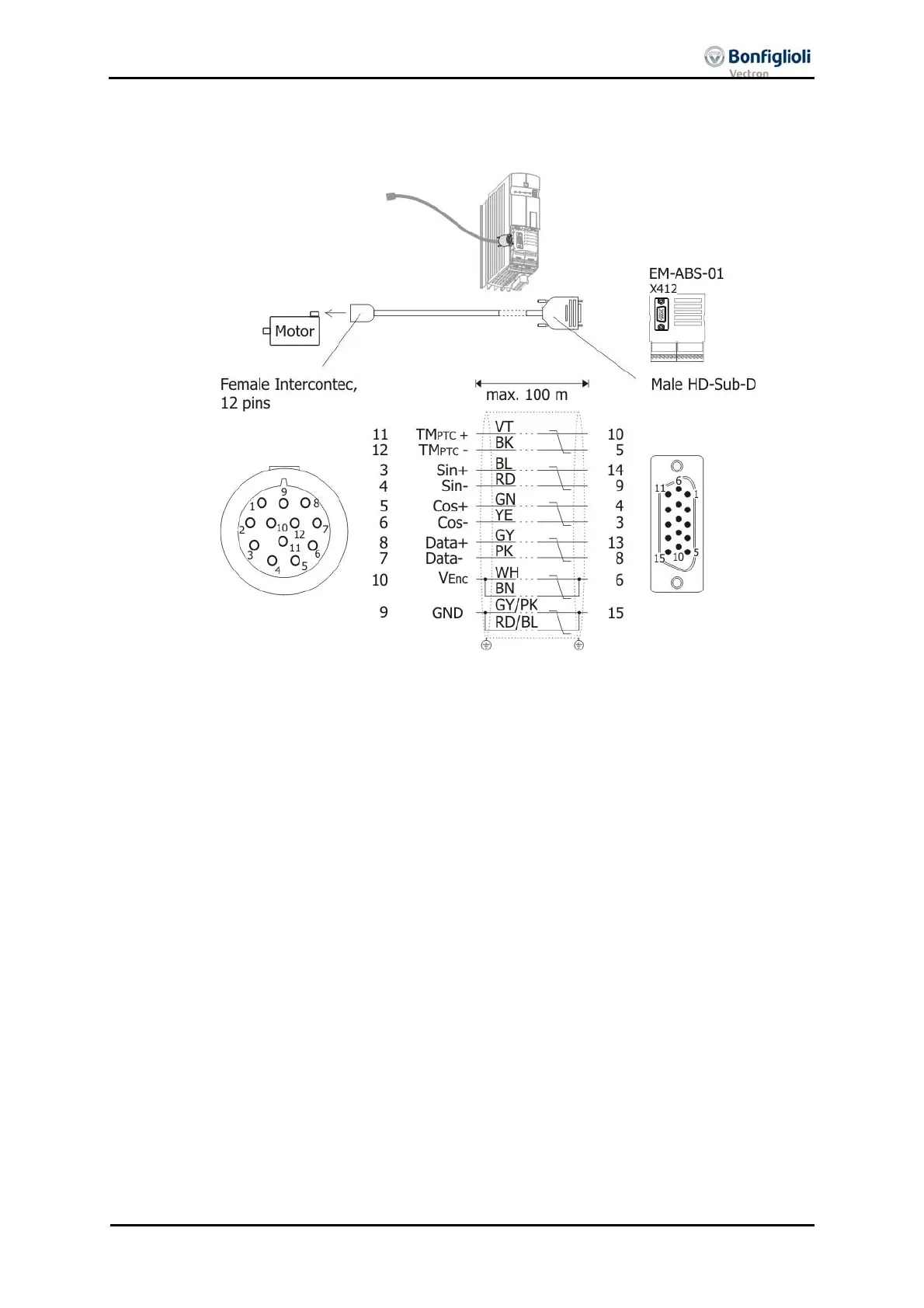

5.3.2.3 Cable assembly Hiperface
Contact assignment BONFIGLIOLI VECTRON assembled cable for connec-
tion of Hiperface encoders
• Use PTC resistors with safe isolation from motor windin
g
accordin
g
to EN 61800-
5-1.
• Use shielded and twisted cables.
• Install encoder cable separate from motor cable.
• Connect the shield of the encoder line properly on both sides.
• BONFIGLIOLI VECTRON recommends using the pre-assembled cables for syn-
chronous motors types BCR and BTD.
