6.5 Frame Battery
Installing the PowerPack
cable and mount casing

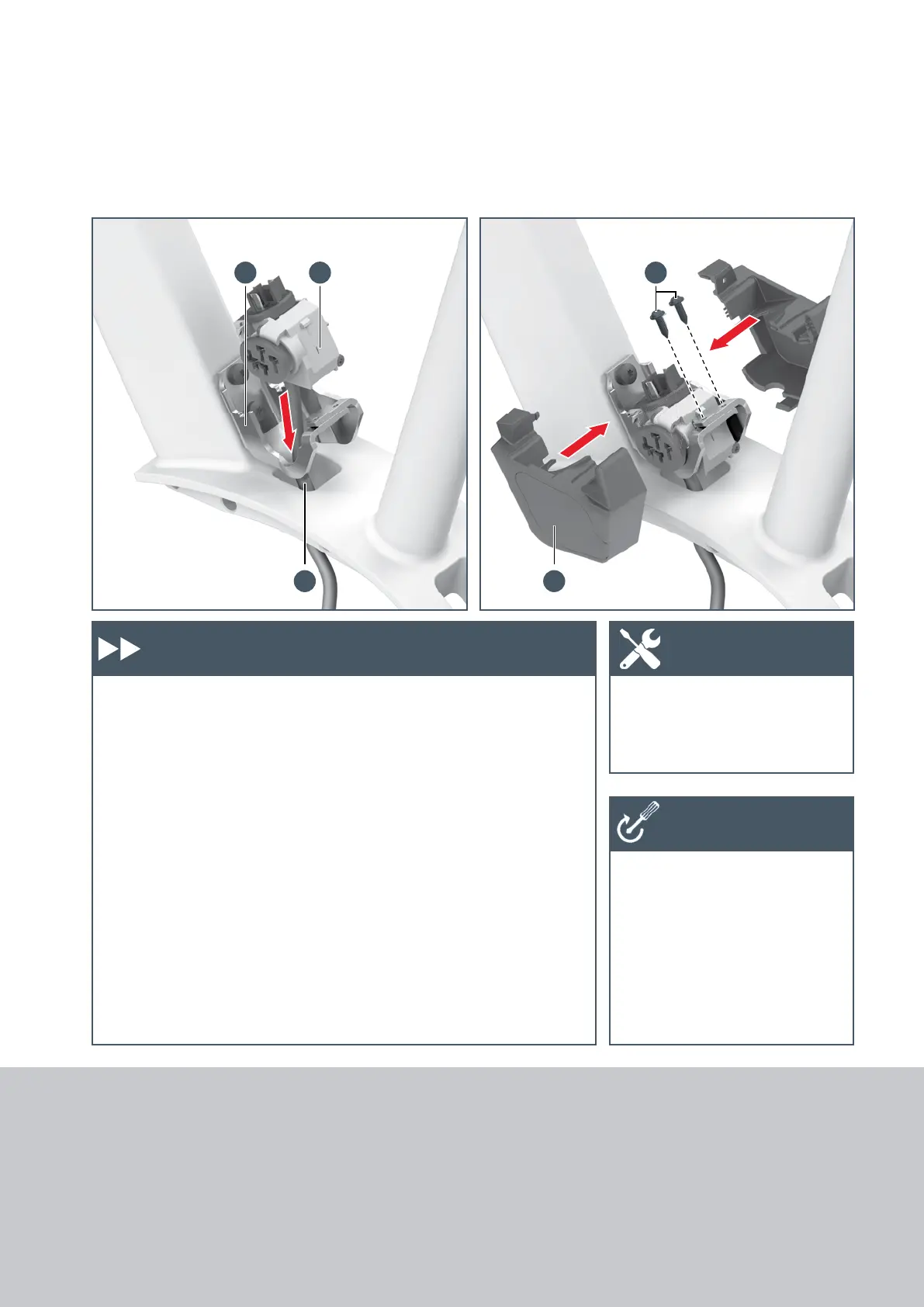

1. Thread the PowerPack cable
(A) through the adapter (B) and
insert the plug (C) in the
adapter.
2. Push the PowerPack mount
casings (D) right and left onto
the adapter section and clip it
together.
3. Use two screws (E) to screw
the PowerPack mount casings
together on the adapter (M3,5 x
12).
X Torx wrench T15
X Torque wrench
X Mount casing (Torx T15):
2 Nm
Work steps Tool
Tightening
torques
6.5 Frame Battery
