LED display on
PowerTube underside
°C
> 40 °C
< 0 °C
Electronic defect
85
3.7 Charging of the Battery 3.7 Charging of the Battery3.7 Charging of the Battery
Energy capacity is used up; support is switched
off. The remaining energy capacity will be
reserved for bike lights, on-board computer and
eShift system (if needed). This suffices for
approx. 2 hours of bike lighting
(does not
account for other electricity consumers).
When energy capacity is used up, refrain (if
possible) from using automatic modes of eShift
systems.
LED display on the battery
X Each LED corresponds to 20 % of the capacity.
X A flashing LED indicates charging of the next 20 %.
X All LEDs will switch off when the battery is fully
charged (not on Classic+ Line).
Battery charge level indicator on on-board
computer
X Each bar corresponds to 20 % of the capacity.
X On DualBattery eBikes, the charging status of both
batteries will be displayed.
Error Displays

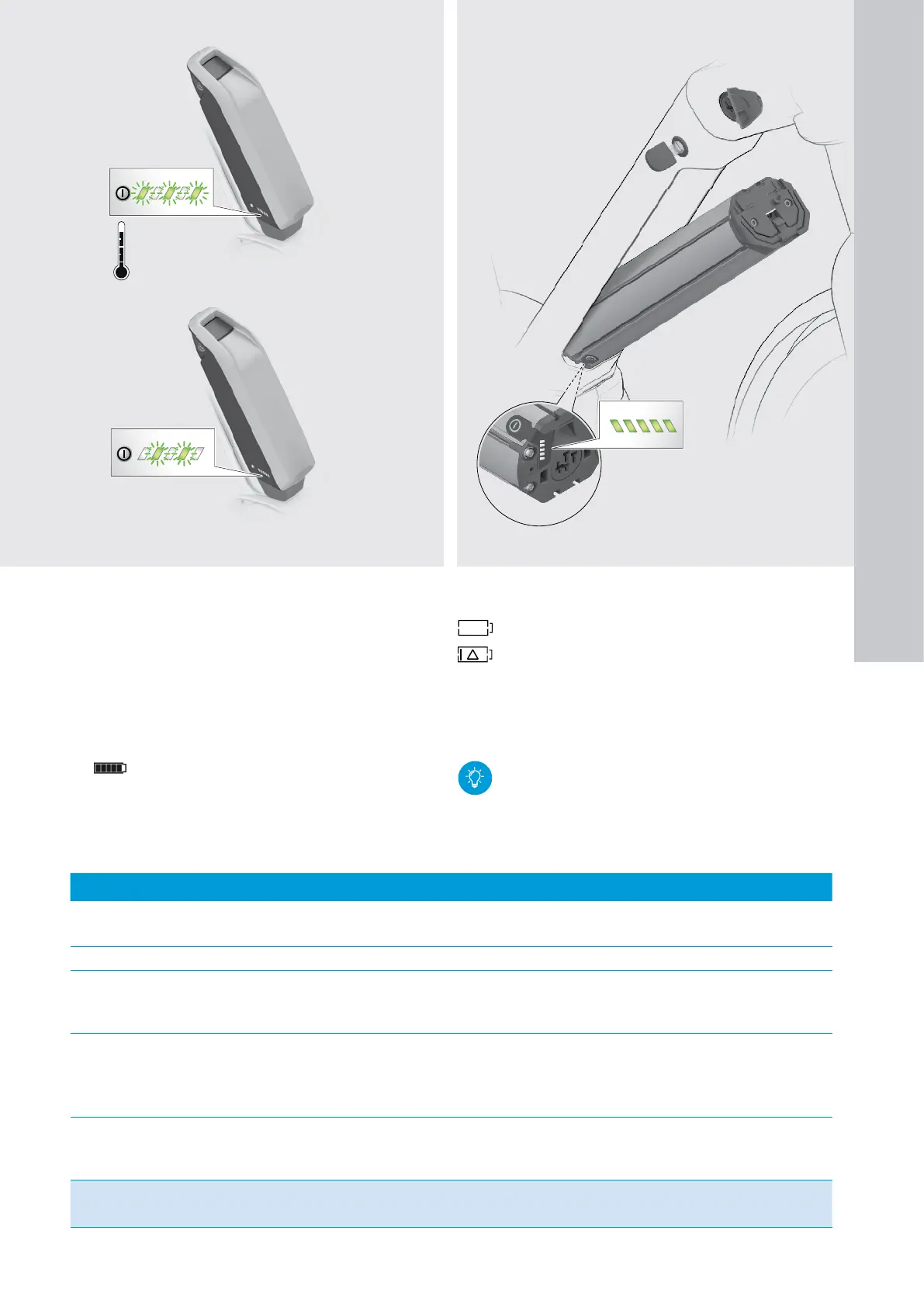

LEDs 1, 3 and 5 flash: The battery is out of the charging temperature range (0 °C to 40 °C)
Disconnect from the charger and allow it to acclimatise
LEDs 2 and 4 flash: Electronic defect of the battery; the system switches itself off
None of the LEDs flash, but one or
more LEDs light up regardless of the
charge state:
Charger does not charge and is possibly damaged.
None of the LEDs light up: Charging is not possible; the battery is possibly damaged.
Check plug
connections and mains voltage; clean the contacts on the battery.
With the Travel Charger, it is possible that the motor vehicle battery is
insufficiently charged.
The battery can not be switched off;
in addition, one or more LEDs light
up continuously.
Danger of an excessively deep discharge. Perform a reset of the
Battery Management System.
Reset of the Battery Management
System
Remove battery from its mount.
Hold down the On/Off button on battery for 10 s.
!
